Offgridtec HomePremium M UPS solar system 12900Wp E-Box 48100R-C 20.5kWh 3-phase

Extremely versatile complete package

The Offgridtec® HomePremium series (3-phase) offers versatile application possibilities at an unbeatable price-performance ratio. It can be used both as a UPS backup solution with the option of switching between grid and battery priority and as a self-consumption system. The performance of this Pv system is flexibly adaptable and can be expanded according to individual requirements, both in terms of solar modules and batteries. If required, additional inverters can be added to increase the output power.

In addition to the power electronics from victron Energythe storage of Pytesand the solar modules from Luxenalso includes all the necessary connection components, with the exception of the solar module holders, which must be ordered separately. all other components are plug-and-play, which means that no complicated plug installation is required - simply connect and get started.

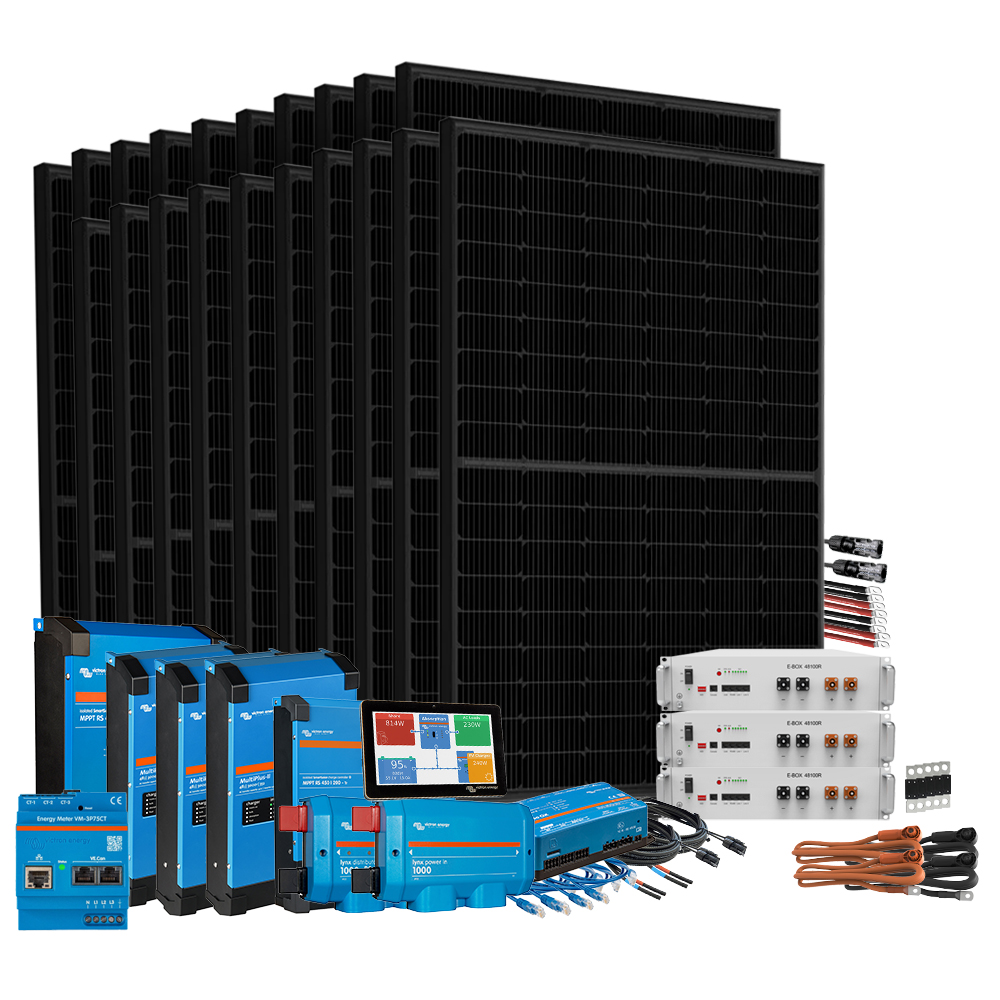

Parts list - what's inside

• 30x Luxen Solar 430w Mono Bifacial Solar Panel Full Black
• 3x victron MultiPlus-II 48/5000/70-50 230v
• 1x victron Cerbo MK2 communication center System monitoring
• 1x victron gx Touch 50 display panel for Cerbo gx
• 1x victron SmartSolar mppt rs 450/200-mc4 48v charge controller
• 4x Pytes E-Box-48100r-c 100ah 51v LiFePO4 battery
• 1x victron Energy Lynx Power In (m8)
• 1x victron Lynx Distributor (m8)

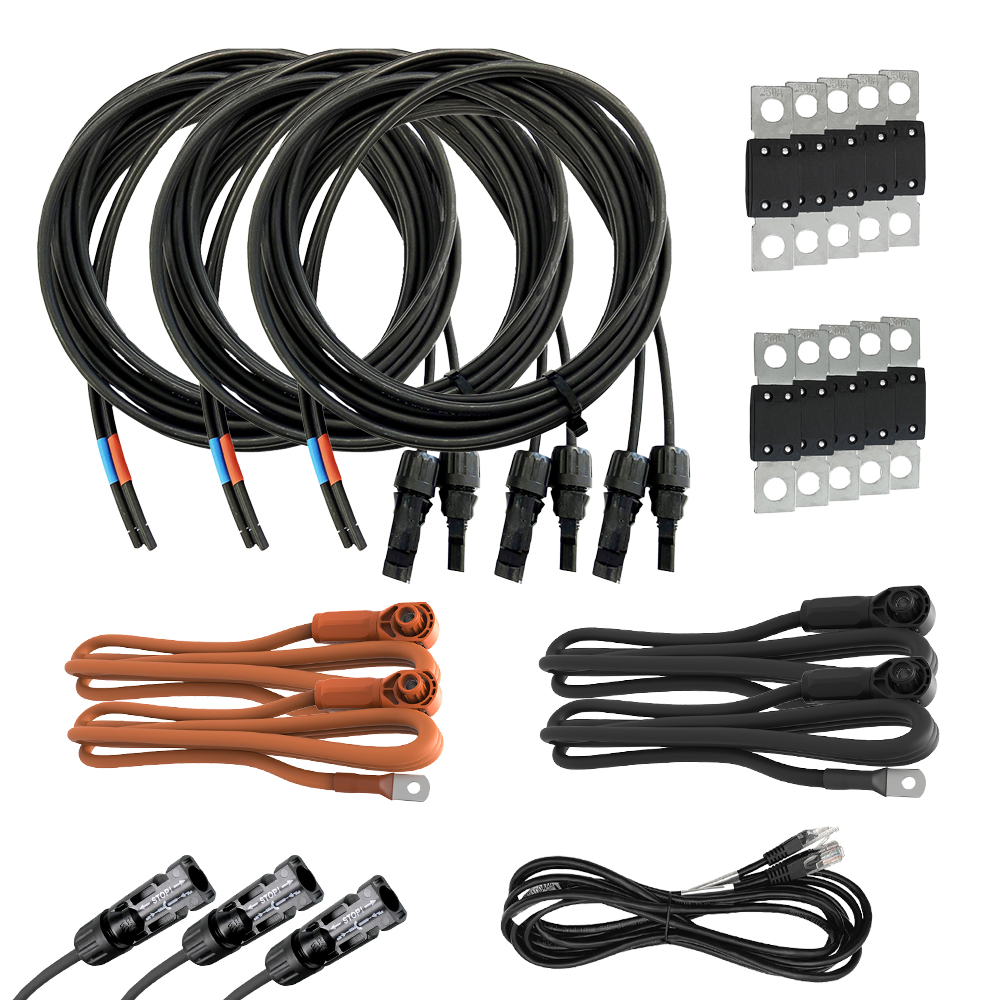

• 4x Offgridtec® 1m battery cable 50mm² m8 eyelets on both sides
• 3x Offgridtec 10m MC4 to MC4 connection cable 6mm² red/black
• 2x Offgridtec 10m 6mm² MC-4 connection cable plug/socket extension
• 2x 0.9m victron rj45 utp cable
• 2x 3m victron rj45 utp cable
• 3x Offgridtec set of 5 MEGa fuses 125a 70v for 48v systems
• 1x Offgridtec set of 5 MEGa fuses 250a 70v for 48v systems
• 1x Pytes data cable battery to victron Inverter 3,5m MultiPlus 2
• 1x Pytes power cable battery to inverter 2m, positive (m8, 25mm² 125a)
• 1x Pytes power cable battery to inverter 2m, negative (m8, 25mm² 125a)

When selecting electricity meter

• 1x victron vm-3p75ct Energy Meter
• 1xvictron 5m rj45 utp cable

Extended use of your HomePremium system

The HomePremium system is supplied either with or without victron electricity meter and cable, whereby an energy meter with connection cable is mandatory for the installation of an Energy Storage System.

With this electricity meter, you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. thanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem.

Luxen Solar 430w Full Black solar module - efficiency of 22%

The Luxen Solar Series n5 430w Full Black solar module (mpn lnvb-430nd) combines advanced technologies such as N-TOPCon cell technology, a 108 half-cell layout and smbb half-cut cell technology to ensure impressive performance and cost-efficient power generation. With excellent anti-PID, low lid performance and high hotspot resistance, it offers reliability and longevity. Its elegant full-black design makes it perfect for residential buildings, balcony power plants and many other applications. The manufacturer vouches for the quality of the product and guarantees a service life of 30 years.

• N-TOPCon cell technology
• smbb Half-Cut cell technology
• Low bos & LCOE
• Bifacial cell module technology
• excellent anti-PID and low lid performance
• 3 bypass diodes
• 30-year performance guarantee and 15-year product guarantee
• high cell efficiency of over 22%

Technical data

• Maximum power: 430w
• Module voltage (vmp): 32.04v
• Max. Current (imp): 13.42a
• Open circuit voltage (voc): 38.96v
• Short-circuit current (Isc): 14.13a
• Module efficiency: 22.02%
• dimensions: 1722 x 1134 x 30 mm
• Operating temperature range: -40°C to +85°C
• Cells: 108 (6x18)
• Max. Operating voltage: 1500v DC
• Weight: 23,5kg

The Pytes E-Box 48100r-c

The Pytes E-BOX 48100r-c (mpn 110402100007) is a state-of-the-art LFP battery with 100 ah capacity and is characterized by its high level of safety, sophisticated design and impressive performance. The battery is compact, easy to install, maintenance-free and can be used as the basic building block of an energy storage system through parallel connection. applications range from self-consumption coverage in private homes to small commercial and industrial energy storage systems, as well as in telecommunication stations.

• LFP storage of the latest generation
• over 6000 cycles at 90% DoD
• Intelligent energy management
• Ideal for emergency power supply
• extensive compatibility
• Modularly expandable
• CaN & rs485 communication

Technical data

• Battery chemistry: Lithium iron phosphate (LFP)
• Nominal voltage: 51.2 v
• Voltage range: 47.5-57.6 v
• Rated power: 100 ah
• Nominal energy: 5.12 kwh
• Max. Charging current: 50 a
• Max. Discharge: 50 a
• Charging temperature: 0~50°C
• Discharging temperature: -10~50°C
• efficiency: ≥95%
• Communication protocol: rs-232, rs-485, CaN
• Cycle life: >6000 cycles at 90% DoD
• dimensions: 440 x 620 x 117 mm
• Weight: 51 kg

The heart of the system - the victron MultiPlus-II 48/5000

The Multiplus-II 48/5000/70-50 is a high-end device combination from victron Energy (mpn pmp482505010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and extends the potential range of use to ESS applications. The inverter module delivers a full 5000 w with a non-linear load, or 4000 w with a linear continuous load. the 48 v battery charger is also very well proportioned with 70 a charging power and is supplemented by a 50 a transfer switch, which can be used to switch back and forth between the aC connections at lightning speed.

• PowerControl and Powerassist - increasing mains or generator power
• built-in anti-islanding function and connection option for external current sensor (optional)
• can be used as a backup device in grid-connected systems for power supply in the event of grid failures
• ideally suited for professional seafaring, yachts, vehicles and land-based, off-grid applications
• vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration
• practically unlimited power thanks to parallel and three-phase operation
• can be configured on site or remotely using vEConfigure software

Technical features

• 5000 w power with non-linear load 4000 w continuous load and 9000 w peak power
• for 48 v battery voltage, 50 a transfer switch and 70 a battery charger
• output voltage: 230 vaC, frequency: 50 Hz
• max. efficiency is 95%, protection class IP22

Configuration

The MultiPlus-II is supplied unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system, we can do this for you for an additional charge. To do this, please use the above article Offgridtec pre-configuration into the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been completed.

victron Energy Cerbo GX MK2 and gx Touch 50 - the communication center of your system

The latest development in system monitoring from vctron Energy allows you to control and configure your system with ease. rounded off by the gx Touch 50 - a waterproof 5 inch touchscreen - you always have an overview of your system parameters. The Cerbo's functions allow you to control and monitor your system perfectly and maximize system performance in an unprecedentedly simple way.

The module can be used with both solar charge controllers and grid-connected inverters. The mounting material and the required connection cables are of course included in the delivery. The Bluetooth capability of the gx Touch 50 makes access to your system even quicker and easier. The only optional extra is a wall bracket for the gx Touch 50, which must be ordered separately if required.

The victron Remote Portal (vRM) is a free victron Energy service that allows you to read out your system data remotely and configure the devices accordingly. This means that you always have full control and an overview of all relevant system parameters, even when you are away. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
