Zendure SolarFlow ACE1500 + Expansion Battery + optional PV Hub 2000

The Zendure bundles are a flexible energy solution for everyday life, outdoor adventures, and emergencies. With the ACE1500 control module, the optional Smart PV Hub 2000, and the AB2000S expansion battery, you store 1.92 kWh of solar energy and can use it even during low sunlight or at night. The dual MPPT technology ensures maximum efficiency, and the durable LiFePO4 battery delivers reliable performance. Easy installation and app control enable a flexible and secure energy supply – ideal for both grid-tied and off-grid applications.

At least one solar panel is required to use the system. Click here to find compatible modules.

Reliable Power Supply Day & Night

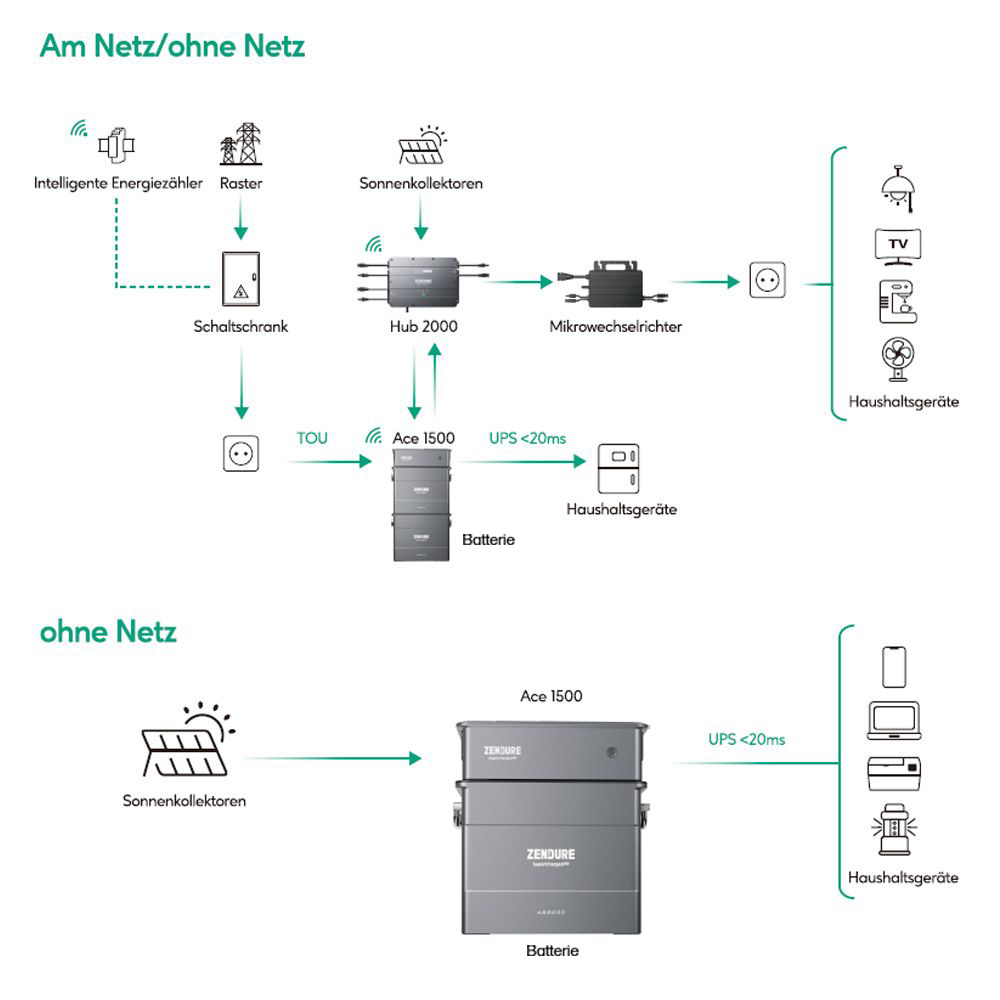

• Versatile on- and off-grid solution
• Backup power supply
• Plug and play – connect and go
• Total capacity of 1.92 kWh
• Dual MPPT PV input – 1200W per tracker
• UPS function under 20 ms
• Dynamic cost optimization via TOU
• Versatile charging options and easy integration
• Monitoring and control via app
• TÜV Rheinland certified (ID 1111272000)

What does the Zendure SolarFlow ACE1500 Set include?

• 1x Zendure SolarFlow ACE1500 on- and off-grid control module
• 1x Zendure AB2000S expansion battery
• Optional: 1x Zendure SolarFlow Smart PV Hub 2000 MPPT

Zendure App

With the Zendure App, you can monitor your SolarFlow system and adjust settings. Information is displayed in real time, including weather and green energy usage, allowing you to configure your system optimally. Historical data can also be accessed through the app.

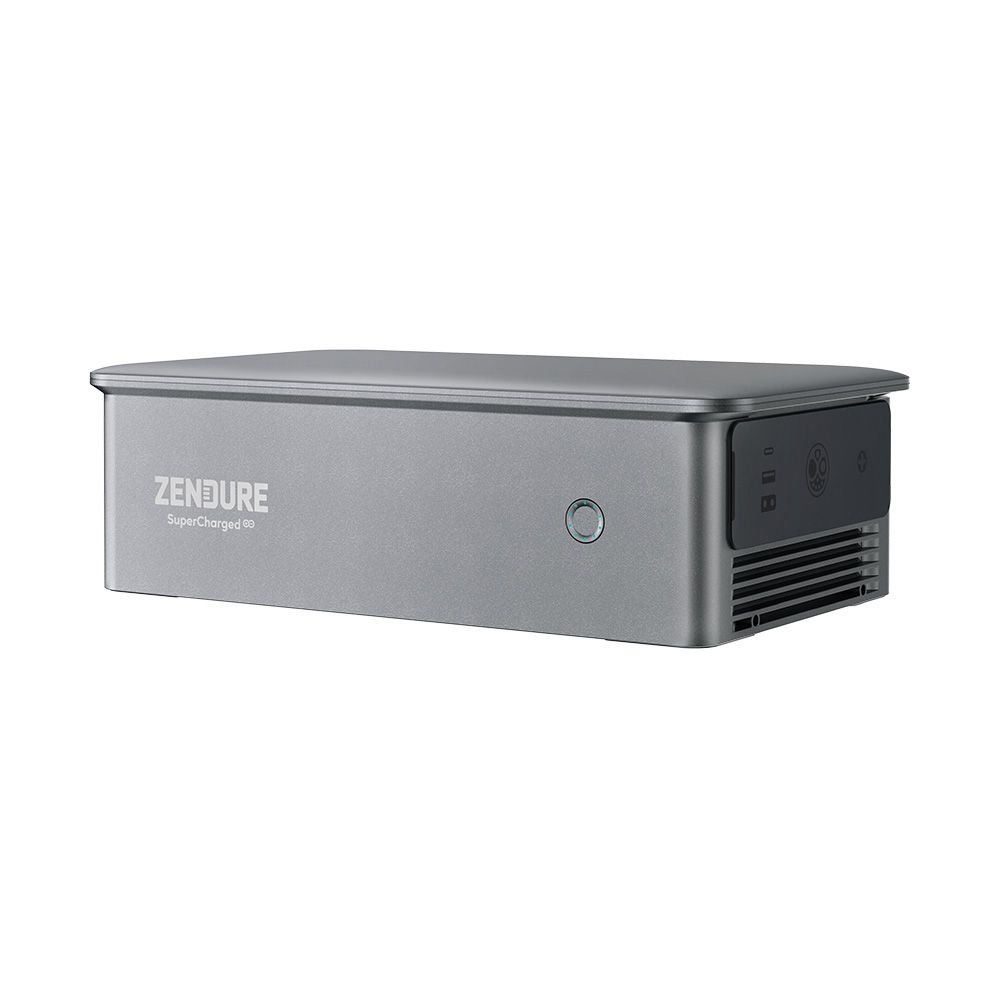

Zendure ACE1500 Control Module

The portable SolarFlow ACE1500 control module from Zendure provides reliable backup power for daily use, unexpected emergencies, and outdoor adventures – whether connected to the grid or off-grid. Its plug-and-play functionality ensures easy installation, and the UPS function under 20 ms makes it ideal for seamless power needs.

Thanks to its integration with Nord Pool's day-ahead electricity prices and the Time-of-Use (TOU) principle, the ACE1500 achieves significant energy savings by charging during low-price periods and discharging during high-price periods.

Technical Specifications

• AC charging power: 900W
• AC output: up to 1500W
• Total output: max. 1707W
• Grid input: max. 900W
• MPPT power: 400W
• Total input: max. 1300W
• Battery charging: max. 2000W via solar and AC
• Battery capacity: up to 7.68 kWh
• Wireless connectivity: Bluetooth, Wi-Fi
• Dimensions: 326 x 200 x 108 mm
• Weight: approx. 4 kg
• IP rating: IP31

Zendure SolarFlow AB2000S Expansion Battery

The AB2000S from Zendure is a next-generation LiFePO4 expansion battery that stores excess energy generated by your balcony power plant. You can expect a wide range of new technologies and safety features.

Technical Specifications AB2000S

• Capacity: 1920Wh / 48V
• Max. expansion capacity: 4 x 1920Wh = 7680Wh
• Weight: 22.1 kg
• Dimensions: 350 x 200 x 298 mm

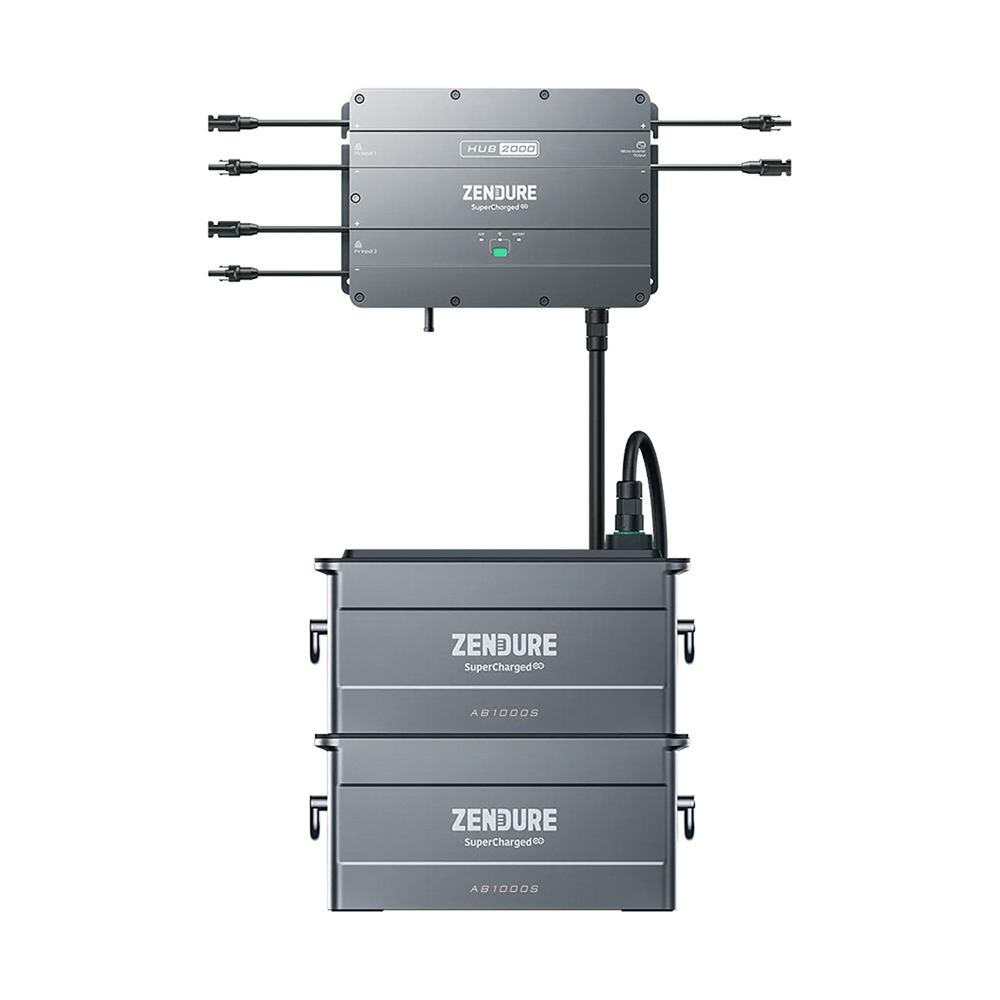

Optional: The Smart PV Hub 2000

Technical Specifications

• Recommended PV module input: 1200W (per tracker)
• Max. input voltage: 60V
• MPPT voltage range: 16–60V
• MPPT voltage range at full power: 35–60V
• Number of MPPTs: 2
• Max. input current: 2x26A
• Weight: 5.2 kg
• Dimensions: 363 x 246 x 64 mm

IP65 Protection

The Smart PV Hub 2000 and the battery are protected by a robust metal housing and rated IP65, ensuring full protection against dust and water. The battery can be installed both indoors and outdoors, whereas the SolarFlow ACE1500 is not waterproof and should not be used in wet conditions. It is important to store the ACE safely and in a dry location to maintain optimal performance, while the batteries are suitable for outdoor use.
