Zendure SolarFlow Set 1.92kWh Smart pv Hub 2000 with 1x ab2000 expansion battery

With the SolarFlow, Zendure is one of the first to offer the possibility of connecting a balcony power plant to a storage solution. Thanks to SolarFlow, the supply of solar energy through a mini PV system is no longer limited to daytime. The energy generated is stored in the batteries after supplying consumers and can thus be used at night or during low sunlight.

You can choose between 1 to 4 AB2000S batteries to store the solar power you generate. A total capacity of up to 7,680Wh is possible. These batteries enable efficient energy storage, ensuring the use of solar power even during low sunlight or nighttime. They offer impressive technologies and safety features such as a fire suppression system, self-heating, battery balancing, and an integrated battery management system, allowing you to monitor and control all data easily via the app.

To use the SolarFlow system, at least one solar panel and one microinverter are required. You can find suitable systems here.

System Overview

• Dual MPPT PV input – 1200W per tracker
• Total capacity of up to 7,680Wh (modular expansion)
• Compatible with 99% of balcony power plants
• IP65 water-resistant protection
• Monitoring and control via app
• Easy integration
• TÜV Rheinland certified (ID 1111272000)

Set Includes:

• 1x SolarFlow Smart PV Hub 2000 MPPT
• 1-4x Zendure SolarFlow AB2000S Expansion Battery 1920Wh Add-On LiFePO4
• 4x Microinverter cables (0.6m)
• 1x Battery cable (1.5m)
• 1x Antenna
• 1x Connector set
• 6x Mounting screws (M4.7 x 39mm)
• 2x Flat washers
• 1x User manual

How Does SolarFlow Work?

During the day, the energy generated by the PV modules is directed through the PV hub to the microinverter, where it is converted into AC to power household devices. Excess energy is smartly stored in the batteries for nighttime use. This can save up to 32% on your annual electricity bill. The intelligent control ensures efficient storage of surplus energy, while the PV hub (adjustable between 100W and 1200W) typically delivers 600W to the microinverter to meet peak power demands.
At night, the excess energy stored in the batteries (expandable up to 7,680Wh capacity) is used to power various devices. These range from high-power devices like air conditioners and refrigerators to lower-power ones like Wi-Fi routers, lamps, laptops, and more.

Zendure SolarFlow Smart PV Hub 2000 MPPT

The Smart PV Hub 2000 MPPT acts as the link between your balcony power plant and the LiFePO4 batteries of your SolarFlow system. The energy generated by the balcony system is stored in the LiFePO4 batteries after supplying household consumers. This enables efficient use of stored energy even at night or in low sunlight conditions. The new Smart PV Hub 2000 can handle more solar power than the previous Smart PV Hub 1200.

Technical Specifications

• Recommended PV module input: 1200 W (per tracker)
• Max. input voltage: 60 V
• MPPT voltage range: 16–60 V
• Full power MPPT voltage range: 35–60 V
• Number of MPPT: 2
• Max. input current: 2x26 A
• Operating temperature: -20°C to +45°C
• Protection rating: IP65
• Weight: 5.2 kg
• Dimensions: 363 x 246 x 64 mm

Zendure SolarFlow Expansion Batteries

All Technologies at a Glance

Aerosol Fire Suppression System: Prevents flames from developing inside the battery without emitting harmful gases. With this advanced technology, you can fully rely on the safety and protection of your solar system.
Anti-Thermal-Runaway Technology: The AB2000S always ensures optimal operating temperature for your storage system, preventing overheating and fire hazards.
Smart AC Overcharge Protection: If solar input is insufficient, the system automatically switches to grid power. This seamless transition prevents deep discharge and helps prolong battery life. Best combined with models like Hyper 2000 and ACE1500.
Battery Balancing Technology: Prioritizes charging of cells with lower capacity, avoiding both overcharge and deep discharge, ensuring balanced charge and discharge cycles across all cells.
Automatic Self-Heating Function: Stays powerful even in extreme cold. The system uses solar energy to heat the battery during low temperatures, ensuring reliable charging even in winter.

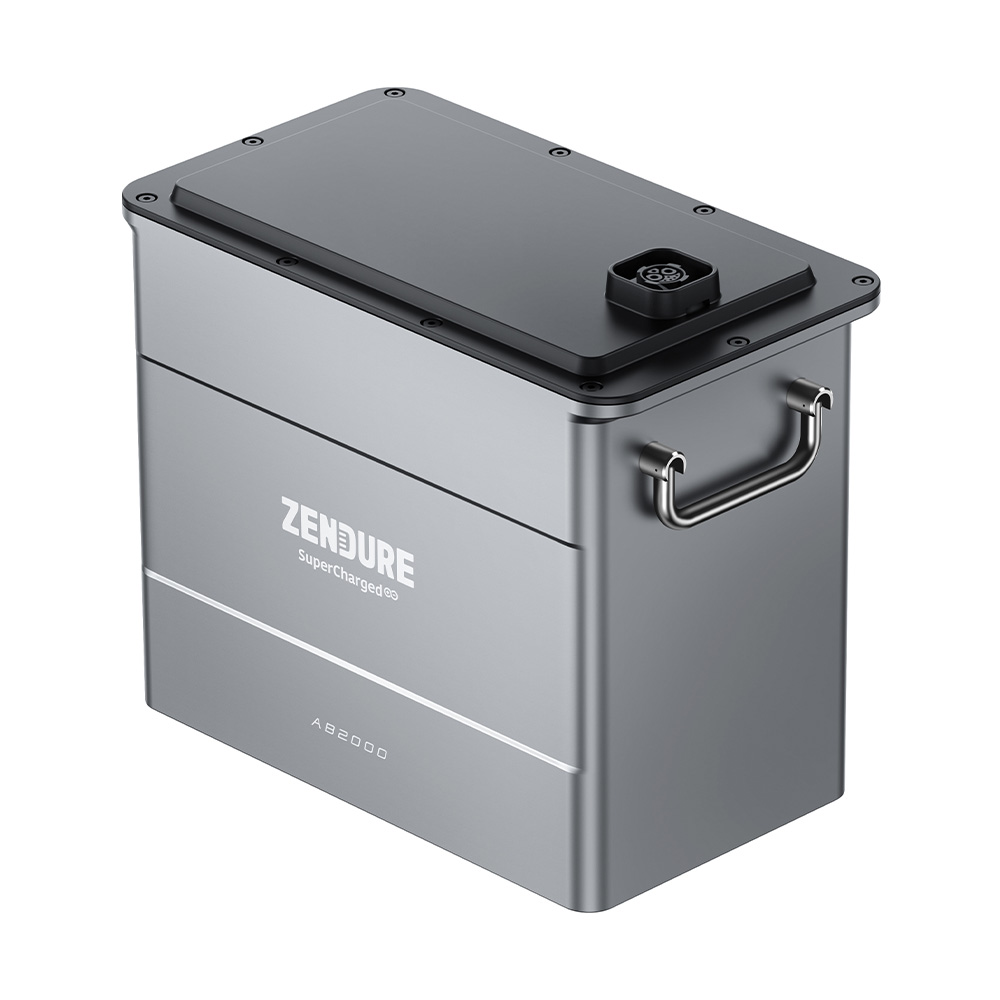

AB2000S Technical Specifications

• Capacity: 1920Wh (40Ah / 48V)
• Battery type: LiFePO4
• Max. expansion capacity: 4 x 1920Wh = 7680 Wh
• Protection rating: IP65
• Weight: 22.1 kg
• Dimensions: 350 x 200 x 298 mm
