Zendure SolarFlow ACE1500 1920Wh with 1x AB2000X and PV Hub 2000 on-grid and off-grid storage solution

The Zendure bundles are a flexible energy solution for everyday use, outdoor adventures, and emergencies. With the ACE1500 control module, the optional Smart PV Hub 2000, and the AB2000X expansion battery, you can store 1.92kWh of solar energy and use it even at night or in low sunlight. Dual MPPT technology ensures maximum yield, while the durable LiFePO4 battery delivers reliable performance. Easy installation and app control enable flexible and secure energy supply – ideal for both on-grid and off-grid applications.

To operate the system, at least one solar panel is required. Here you can find compatible modules.

Reliable Power Supply Day & Night

• Versatile on- and off-grid solution
• Backup power supply
• Plug & Play – simple setup
• Total capacity of 1.92kWh
• Dual MPPT PV input – up to 1200W per tracker
• UPS function with <20ms switchover
• Dynamic cost optimization with TOU
• Flexible charging options and easy integration
• Monitoring and control via app
• TÜV Rheinland certified (ID 1111272000)

What’s Included in the Zendure SolarFlow ACE1500 Set?

• 1x Zendure SolarFlow ACE1500 On-/Off-Grid Control Module
• 1x Zendure AB2000X Expansion Battery
• Optional: 1x Zendure SolarFlow Smart PV Hub 2000 MPPT

Zendure App

The Zendure app allows you to monitor and configure your SolarFlow system. Information is displayed in real time, including weather data and green power consumption, helping you set up the optimal configuration. Historical data is also available within the app.

Zendure ACE1500 Control Module

The portable SolarFlow ACE1500 control module from Zendure provides reliable backup power for daily use, emergencies, and outdoor adventures in both on-grid and off-grid scenarios. With its plug-and-play functionality, installation is quick and simple. The built-in UPS function with switchover under 20ms ensures seamless energy supply.

By linking to Nord Pool day-ahead energy prices and using the Time-of-Use (TOU) principle, the ACE1500 enables significant savings by charging during low-price periods and discharging during peak prices.

Technical Data

• AC charging power: 900W
• AC output: up to 1500W
• Total output: max. 1707W
• Grid input: max. 900W
• MPPT power: 400W
• Total input: max. 1300W
• Battery charging: up to 2000W via solar + AC
• Battery capacity: up to 7.68kWh
• Wireless: Bluetooth, Wi-Fi
• Dimensions: 326 × 200 × 108mm
• Weight: ~4kg
• IP rating: IP31

Zendure SolarFlow AB2000X Expansion Battery

The AB2000X from Zendure is a next-generation LiFePO4 expansion battery that stores surplus energy from your balcony power plant. It integrates advanced technologies and protection features for safe and efficient use.

Technical Data AB2000X

• Capacity: 1920Wh / 48V
• Total expandable capacity: up to 11.52kWh
• Weight: 20.3kg
• Dimensions: 388 × 224 × 292mm

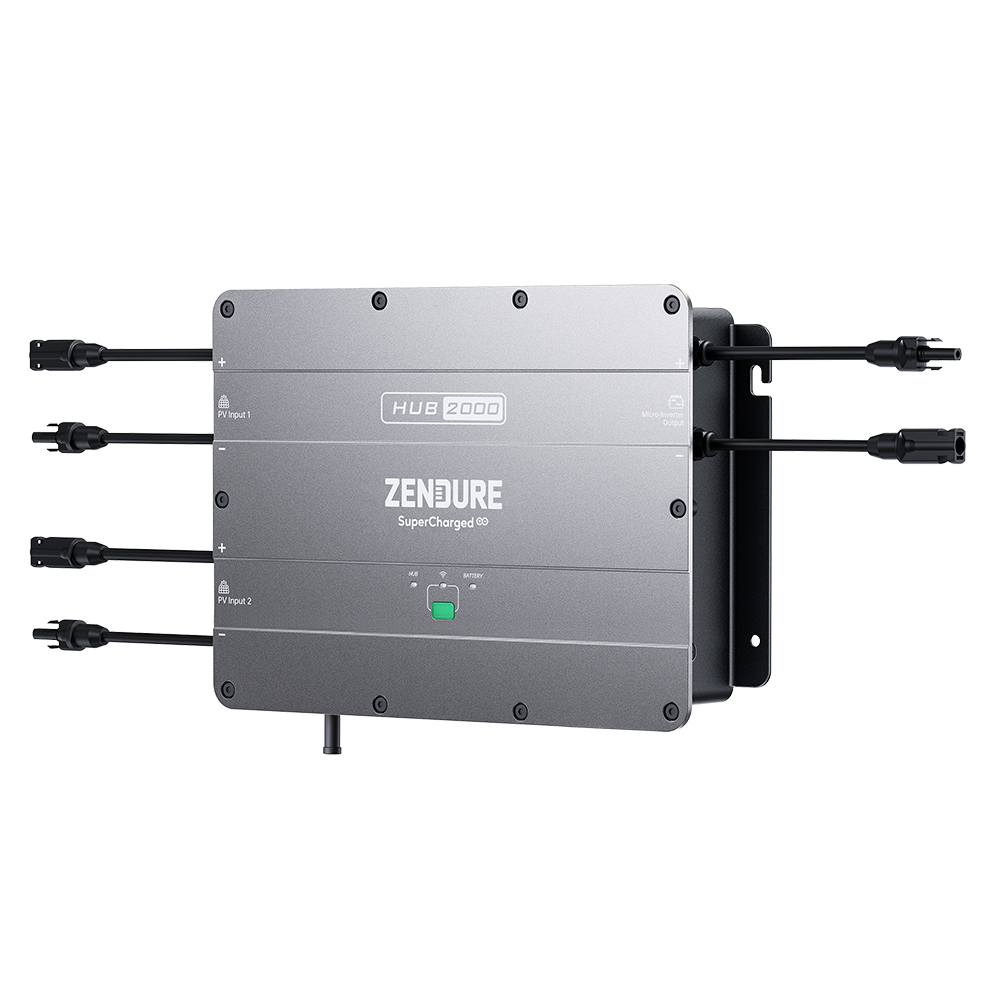

Optional: Smart PV Hub 2000

The Zendure Smart PV Hub 2000 is a powerful link between your balcony power plant and the LiFePO4 storage of the SolarFlow system. It stores generated energy and makes it available even at night or in low sunlight. With dual MPPT PV input, it processes more solar power than its predecessor and comes with IP65 waterproof protection. Integration is straightforward, with full monitoring and control available via the app.

Technical Data

• Recommended PV input power: 1200W (per tracker)
• Max. input voltage: 60V
• MPPT voltage range: 16–60V
• MPPT full power range: 35–60V
• Number of MPPT trackers: 2
• Max. input current: 2 × 26A
• Weight: 5.2kg
• Dimensions: 363 × 246 × 64mm

IP65 Protection

The Smart PV Hub 2000 and the battery are protected by a robust metal housing and rated IP65, ensuring full protection against dust and water. The battery can be installed indoors or outdoors, while the SolarFlow ACE1500 is not waterproof and should not be used in wet conditions. The ACE must be kept dry for optimal performance, while the batteries are suitable for outdoor use.
