Zendure SolarFlow 5.76kWh 1800w Hyper 2000 balcony power station Dual-Glass TOPCon incl. Satellite Smart Plug

Offgridtec presents a revolutionary Zendure balcony power plant including the Solar-Flow storage system (MPN: 020210), which incorporates advanced technologies and protection features. The key to your flexibility is the Hyper 2000 hybrid inverter, allowing you to charge the batteries from either solar or grid power. You can integrate up to four AB2000S batteries into your system, achieving a total capacity of 7.68kWh. Four reliable Luxen solar modules with 450W generator power each and TopCon technology are included for generating solar power. The four solar inputs on the Hyper simplify installation and reduce energy loss compared to parallel connections.

System Highlights

• Plug-&-Play – Plug in and save money
• Monitor your self-consumption
• Make your lifestyle more eco-friendly
• Quickly amortizing investment
• Flexible storage expansion (1.92kWh–7.68kWh)
• Groundbreaking technologies and protection features
• Monitoring and control via app
• Save up to €788/year on electricity costs*

*A balcony power plant with 1800W solar output, 1200W Hyper 2000 output, and two AB2000S batteries can generate up to 5.4kWh per day. Based on an electricity price of €0.40/kWh, this results in savings of up to €788/year. With optimal module orientation, best possible weather conditions, and a matching base load. Source: Ertragsdatenbank & Federal Government

The balcony power plant includes:

• 4x Luxen Solar 450W Bifacial Solar Module TopCon Luxneri Series N5 Full Black
• 1x Zendure SolarFlow Hyper 2000 Hub with Microinverter
• 1x Zendure Satellite Smart Plug (App-Controlled Smart Socket) (Optional)
• 1–4x AB2000S 1920Wh Add-on LiFePO4 Battery (depending on selection)
• 4x Connection cables MC4 to MC4 6mm² 5m

How does the SolarFlow balcony power plant with the Hyper 2000 work?

During the day: The Hyper converts energy from the solar panels into AC power for your home. If excess solar power is generated that would otherwise be fed into the grid, the Hyper 2000 stores it in the batteries, reducing energy waste. This can be configured in the Zendure app or via a compatible smart meter.
At night: At night, the Hyper converts stored battery power into AC electricity for your home, significantly improving energy efficiency and maximizing your system’s cost-effectiveness.

• If solar generation exceeds the set AC output, the Hyper 2000 stores the surplus in the connected batteries
• If solar generation is lower than the set AC output, all solar energy is supplied to your home and the battery discharges to meet the output level
• If there is no solar power generation, the Hyper 2000 uses the batteries to supply your home with power

Luxen Solar 450W Bifacial Solar Modules

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN: LNDX-450ND) sets new standards in solar technology. It combines cutting-edge features like LECO N-TOPCon cell technology and a 96-cell half-layout to maximize efficiency. Additionally, SMBB half-cut cell technology further enhances performance.

• LECO N-TOPCon cell technology
• SMBB half-cut cell design
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent Anti-PID and Low LID performance
• 3 bypass diodes – reduced power loss during shading

Technical Specifications

• Maximum Power: 450W
• Voltage at Maximum Power (Vmp): 30.08V
• Current at Maximum Power (Imp): 14.96A
• Open Circuit Voltage (Voc): 35.21V
• Short Circuit Current (Isc): 16.02A
• Module Efficiency: 22.52%
• Max System Voltage: 1500V DC
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30 mm

Zendure Hyper 2000

The innovative Hyper 2000 from Zendure is a hybrid inverter that connects your SolarFlow balcony power plant to the grid via plug-&-play. It enables charging the batteries using both solar and grid power. Up to 1200W bidirectional AC output can be configured. Multiple Hyper units recognize and connect with each other when installed on the same phase, and even three-phase setups are possible.

• Automatic multi-unit connection via ZenLink
• Time-of-use automation
• Intelligent anti-discharge technology

Technical Specifications

• PV Input
  • Rated Voltage: 15V–55V
  • Recommended Power: 350W–550W
  • Number of MPPTs: 2
  • MPPT Voltage Range: 16–48V
  • Rated Current: 20A per MPPT
  • Rated Power: 900W per MPPT
• AC Input/Output
  • Rated Power: 1200W
  • Rated Voltage: 220V/230V/240V
  • Frequency: 50Hz
  • Rated Current: 5.5A
• General
  • Protection Class: IP65
  • Weight: 5.4 kg (excluding cables and mounting)
  • Dimensions: 350 x 202 x 78 mm

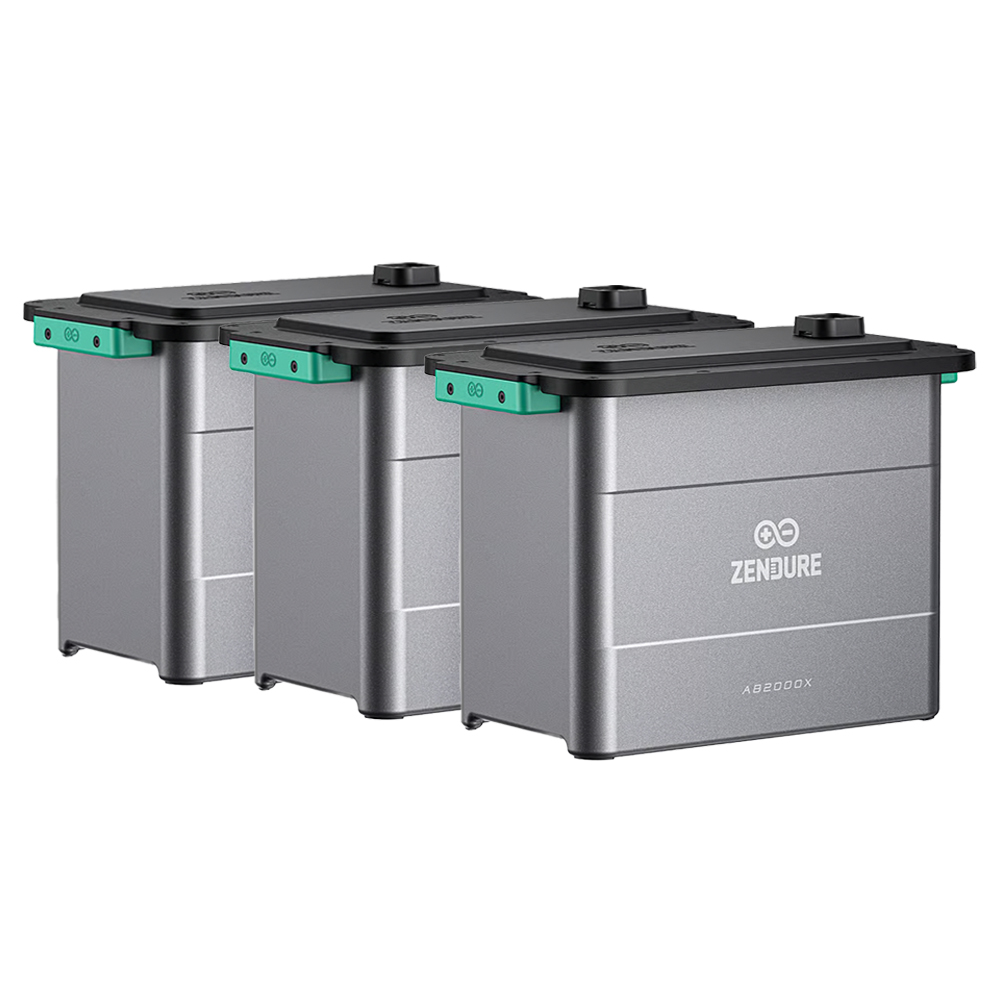

Zendure Solarflow AB2000S Expansion Batteries

• Capacity: 1920Wh (40Ah / 48V)
• Battery Type: LiFePO4
• Max. Expandable Capacity: 4 x 1920Wh = 7680 Wh
• Protection Class: IP65
• Weight: 25 kg
• Dimensions: 450 x 280 x 420 mm

All Technologies at a Glance

Aerosol Fire Suppression System: Prevents flame formation inside the battery without releasing harmful gases. This advanced safety feature ensures complete protection of your solar setup.
Anti-Thermal Runaway Technology: The AB2000S constantly maintains optimal operating temperature, preventing overheating or fire hazards.
Smart AC Overload Protection: When sunlight is insufficient, the system automatically switches to grid power. This smooth transition protects your batteries from over-discharge and extends their lifespan.
Battery Balancing Technology: Prioritizes the charging of cells with lower capacity, avoiding overcharging or deep discharge and ensuring balanced performance across all cells.
Automatic Self-Heating: Remains powerful even in cold conditions. The system uses solar energy to warm the battery when temperatures drop, ensuring reliable charging.
