Zendure AIO Pro 900Wp Balcony Power Plant with Storage

The All-In-One Pro Complete System from Offgridtec (MPN: 019820) is a 900W balcony power plant that offers you the ideal solution to produce a portion of your household electricity on your own. The central element is the Zendure AIO Pro storage system, which combines the Hyper 2000 hybrid inverter with a 960Wh AB1000S battery. The set is completed by 2 powerful 450W black frame solar modules from Luxen Solar and suitable connection and installation cables. Thanks to the plug-and-play principle and compact design, setting it up will be very easy without tedious cable chaos.

• Plug & Play - Plug in and save money
• Control your self-consumption
• Make your lifestyle more eco-friendly
• Quickly amortizing investment

The balcony power plant complete set includes:

• 1x Zendure All-In-One Pro battery storage system
• 2x Luxen Solar 450W Bifacial TopCon N5 Full Black solar modules

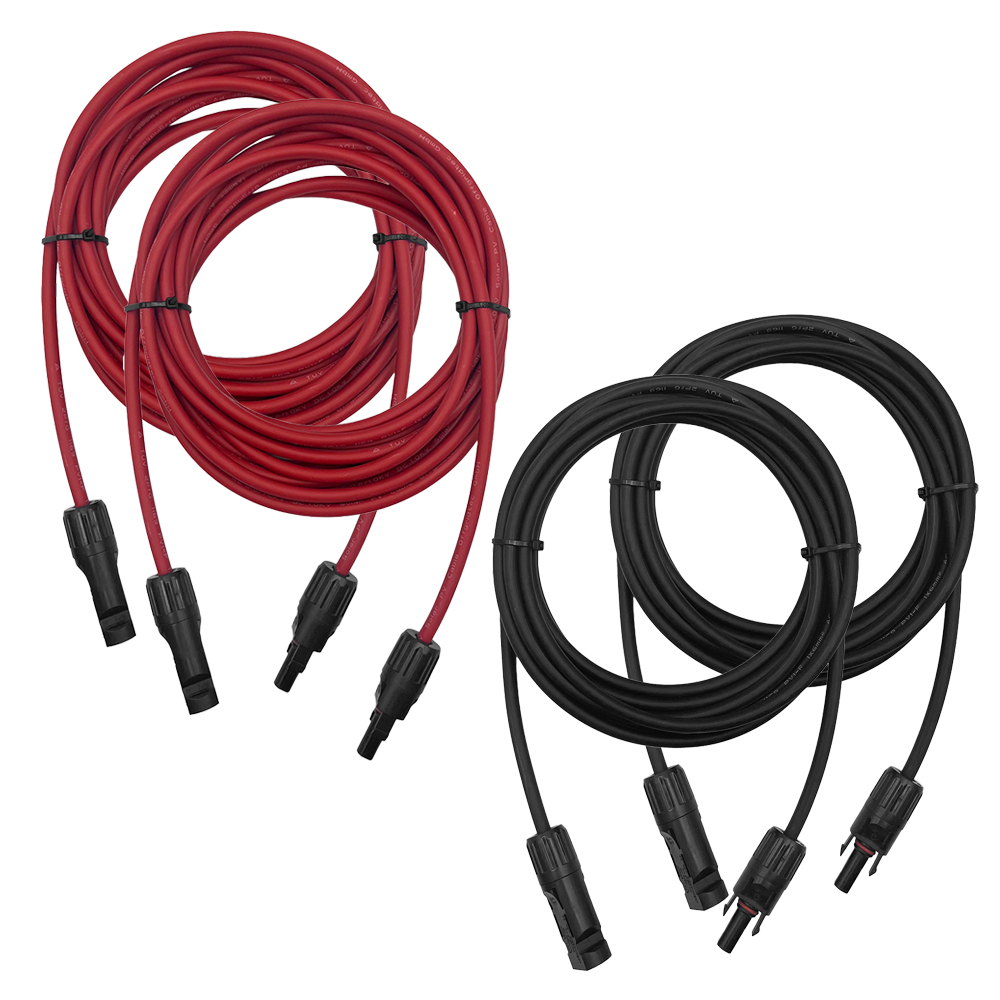

• 2x MC4 to MC4 connection cables 6mm² 5m red/black

All-In-One Pro LiFePO4 Battery Storage System

With the SolarFlow storage system from Zendure, you get an efficient solution to supply the battery of your balcony power plant with solar or grid power. The AIO-Pro set combines a Hyper 2000 hybrid inverter with a 960Wh AB1000S battery, which is equipped with the latest LiFePO4 cell technology.

• Hybrid inverter
• flexible storage option with expansion
• automatic multi-set connection thanks to ZenLink
• Anti-discharge technology
• time-of-use automation
• AC-coupled storage solution
• 1200W bidirectional AC power

Technical Data

Inverter

• Rated voltage: 15V - 55V
• Recommended power: 350W
• Number of MPP trackers: 2
• MPPT voltage range: 16-48V
• Rated current: 20A per MPPT
• Rated power

Battery

• Capacity: 960Wh / 48V
• Battery type: LiFePO4
• Max. Expansion capacity: 4x 960Wh = 3840Wh

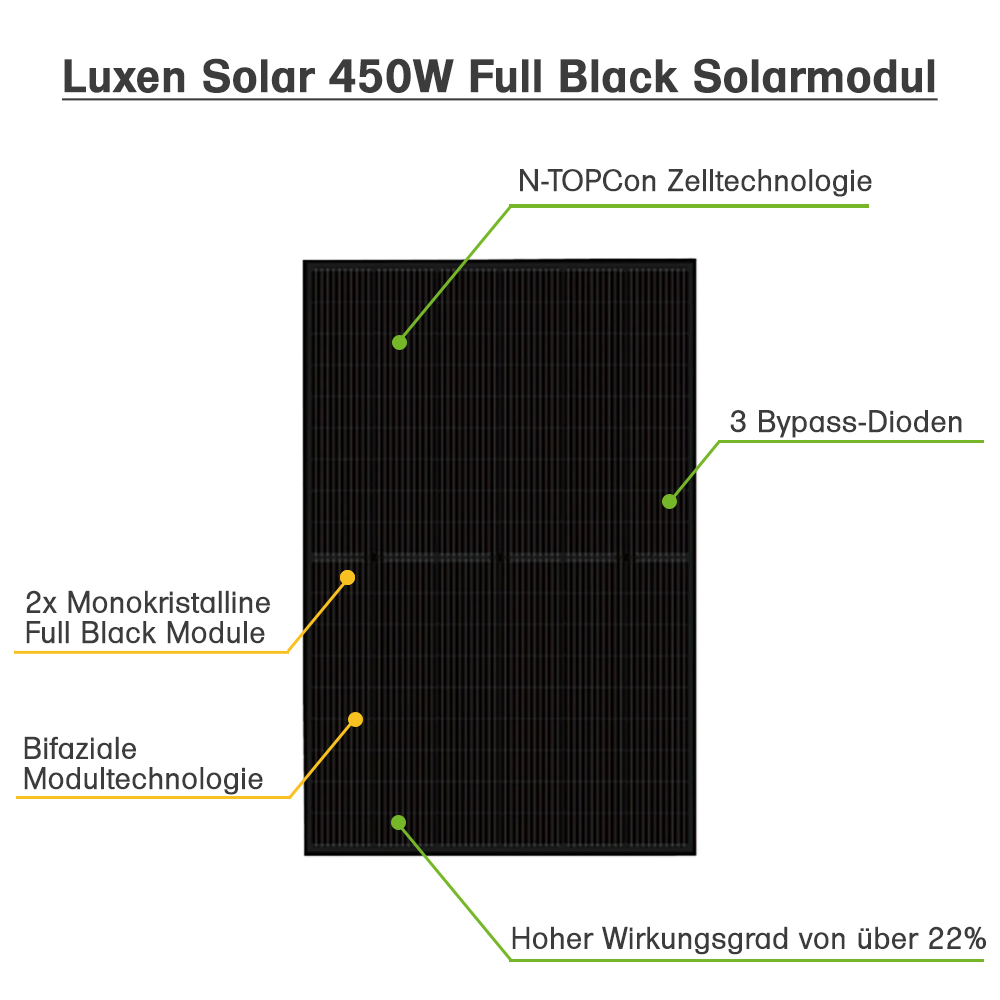

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module of the Luxneri N5 series from Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-layout to maximize efficiency. Additionally, the SMBB Half-Cut cell technology is employed to enhance performance capabilities.

• LECO N-TOPCon cell technology
• SMBB Half-Cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent anti-PID and low LID performance
• Reduced hotspot risk
• 3 bypass diodes - minimized power loss from shading
• High cell efficiency of over 22.52%

Technical Data

• Max power: 450W
• Module voltage (Vmp): 30.08V
• Max current (Imp): 14.96A
• Open circuit voltage (Voc): 35.21V
• Short circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• Max operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30mm
• Cells: 96 (6x16)
• Protection class IP68
• Connection: MC4
• Weight: 24kg
