Zendure AIO Pro 1350Wp balcony power plant bifacial with storage

The All-In-One Pro Complete System from Offgridtec (MPN: 019825) is a 1350Wp powerful balcony power plant that offers you an ideal solution for producing part of your household electricity yourself. The central component is the Zendure AIO Pro storage system, which combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000S battery. The set is completed by 3 high-performance 450W TopCon solar modules from Luxen Solar. To connect everything together, suitable connection and extension cables are included. Thanks to the plug-and-play principle and the compact design, setup will be easy for you – no annoying cable mess.

• Plug & Play – Plug in and save money
• Monitor your self-consumption
• Make your lifestyle more environmentally friendly
• Quickly amortizing investment

The balcony power plant complete set includes:

• 1x Zendure AIO Pro 1200 All-in-One Storage System
• 3x Luxen Solar 450W Bifacial Solar Module TopCon Luxneri Series N5 Full Black

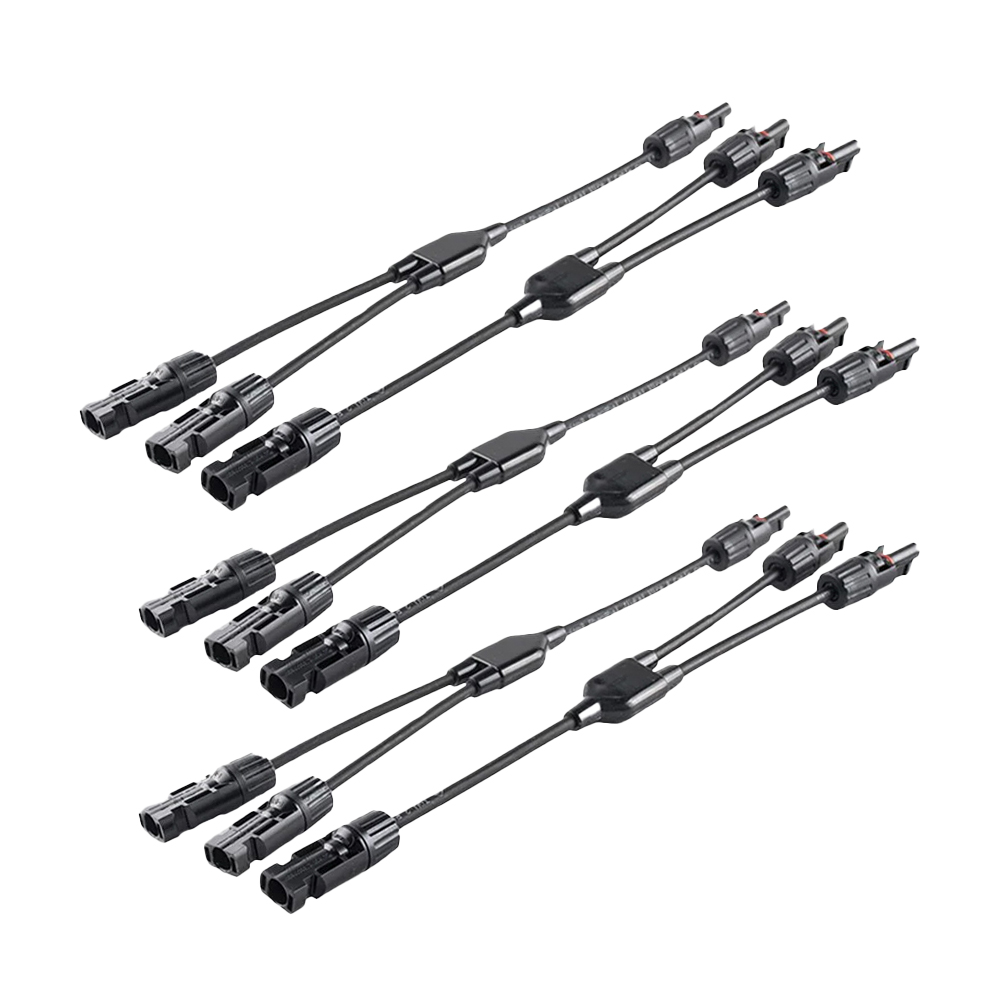

• 3x Offgridtec 2-way branch connectors Y-adapter incl. extension cable (pair)
• 2x MC4 to MC4 connection cable 6mm² 5m red/black
• 1x Zendure AB2000S Expansion Battery 1920Wh

All-In-One Pro 1200 Storage System

With the SolarFlow storage system from Zendure, you get an efficient solution to charge your balcony power station's battery with solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 960Wh AB1000S battery equipped with the latest LiFePO4 cell technology.

• Hybrid inverter
• Flexible storage option with expansion
• Automatic multi-set connection via ZenLink
• Anti-discharge technology
• Time-of-use automation
• AC-coupled storage solution
• 1200W bidirectional AC output

Technical Specifications

Inverter

• Nominal voltage: 15V–55V
• Recommended power: 350W–550W
• Number of MPP trackers: 2
• MPPT voltage range: 16–48V
• Nominal current: 20A per MPPT
• Nominal power: 900W per MPPT

Battery

• Capacity: 1920Wh / 48V
• Battery type: LiFePO4
• Max. expandable capacity: 4 x 1920Wh = 7680Wh

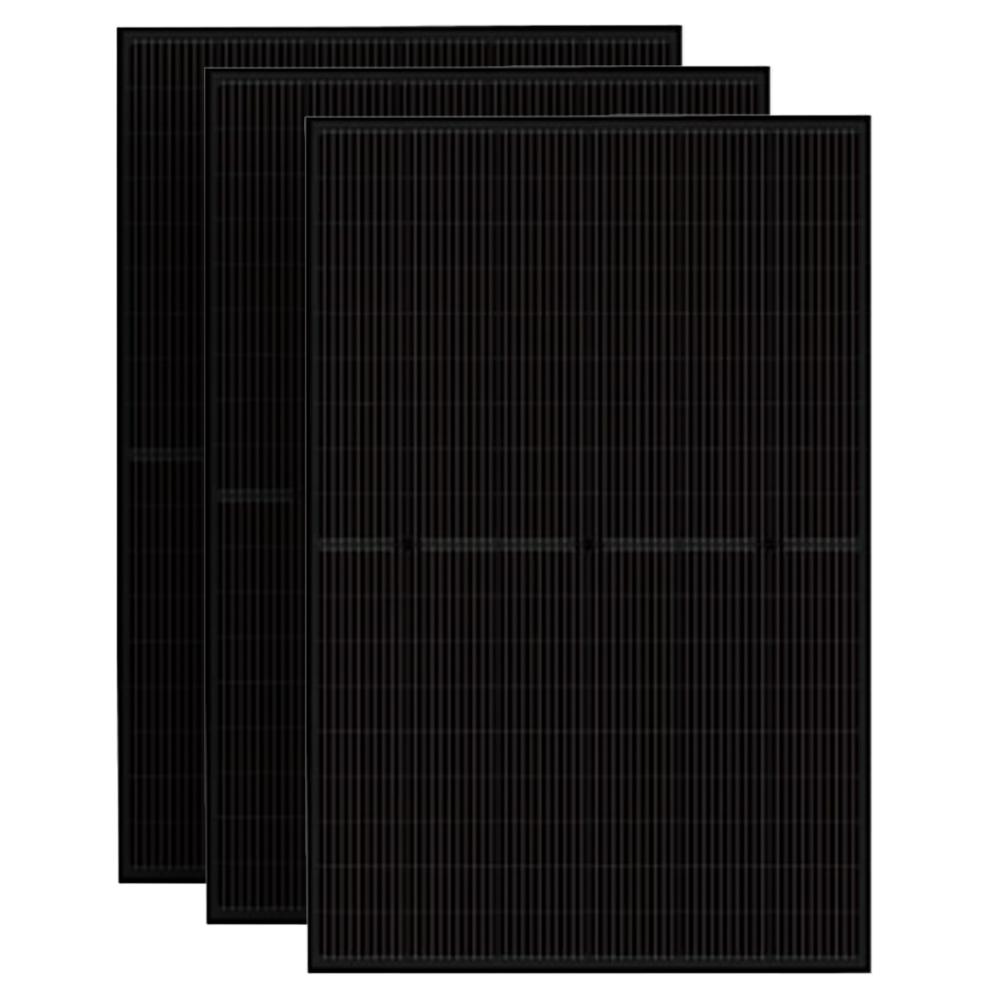

Luxen Solar 450W Bifacial Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-cut layout to maximize efficiency. It also features SMBB half-cut cell technology, which further optimizes performance.

• LECO N-TOPCon cell technology
• SMBB half-cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent Anti-PID and Low LID performance
• 3 bypass diodes – minimized power loss under shading

Technical Specifications

• Maximum power: 450W
• Module voltage (Vmp): 30.08V
• Max. current (Imp): 14.96A
• Open-circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• Max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30mm
