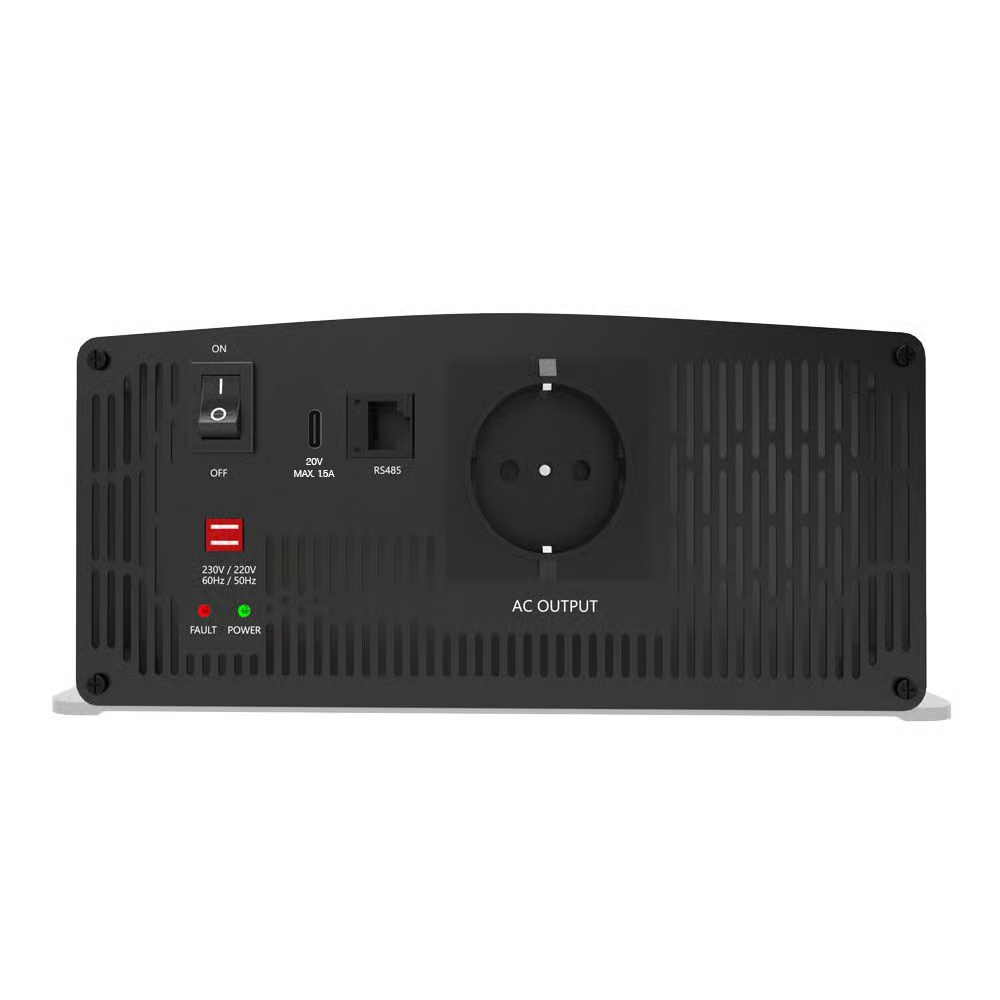

Offgridtec® PSI Sine Wave Inverter RS485 2000W 3200W 24V 230V

The Offgridtec PSI 24-2000 (MPN 011255) is an advanced 24V 230V sine wave voltage converter with a continuous output of 1600W and 2000W for a maximum of 15 minutes. The device features a 16-bit SPWM chipset, numerous protection mechanisms, and galvanically isolated inputs and outputs. The input voltage range is between 21.6 and 32Vdc. The converter can deliver 2000W for 15 minutes or 1600W continuously. For short inrush currents, the PSI 24-2000 delivers 3200W. Thanks to its advanced design, even sensitive electrical devices can be reliably and continuously supplied with power

Advanced development of the HP voltage converter family

The PSI series is the further development of the HP voltage converters and boasts numerous innovations and optimizations: The input and output of the PSI are galvanically isolated and the housing has a ground connection. a dip switch can be used to set the mains frequency (50Hz/60Hz) and output voltage (220V / 230V). The brand-new SPWM 16-bit chipset delivers the highest quality power and allows even very sensitive electronics to be reliably supplied with power. Compared to older chipsets, it is much more robust and durable. PSI converters with a power output of 1000W or more are also equipped with an RS485 data output. this allows you to configure numerous parameters and monitor the operation of the device using the PSI software on a computer or notebook. (The required interface cable is included in the scope of delivery.)

Configuration

The Offgridtec 12-1000 PSI converter is equipped with an RS485 data output, which provides you with options for external communication and configuration:

• RS485 to USB interface connection cable Item no.:
  The interface cable included as standard in the scope of delivery allows you to monitor various performance parameters on a notebook or PC. In addition, the PSI 24-2000 can be conveniently configured using the free PSI-Control PC software.

Performance features of the PSI 24-2000 at a glance

• modern, safe design with galvanic isolation of input and output
• RS485 communication module for configuration via PC/notebook with free configuration software from Offgridtec
• Very low power consumption in idle/standby mode, max. efficiency <>
• Introduction of advanced SPWM technology, output of a perfect sine wave
• New thermal design for optimal heat dissipation and reduced noise
• adjustable output voltage 220/230 VAC and mains frequency 50 Hz/60 Hz
• LED indicators for error status and operating status
• Input protection: overvoltage protection, undervoltage protection
• Output protection: overload protection, short-circuit protection
• overtemperature protection: Temperature-controlled cooling and automatic shutdown in case of overtemperature
• Included in delivery: High-quality battery connection cable, 1 m long, RS485 to USB interface cable

Performance parameters at a glance

• Rated power (continuous power / 15 min power / peak power): 1600 W / 2000 W / 3200 W
• Input voltage range: 21.6 to 32 Vdc
• Output voltage waveform: pure sine wave
• Communication module: RS485
• USB output 5VDC / 1A, RS485 communication port
• significantly greater efficiency thanks to the latest SPWM technology
• all other technical data can be found in the data sheet
• Weight and dimensions (LxWxH): 4.6 kg at 326.5 × 231.5 × 98.5 mm

Scope of delivery:

1x Offgridtec 1-01-011255 PSI 24-2000 sine wave voltage converter 24V 230V 2000W / 3200W
1x set of battery connection cables 1m 25mm² red / black
1x RS485 to USB interface cable 1x Operating instructions
