Offgridtec® 110W SP-Ultra 12V High-End Solarpanel
Shipped in 1-3 days

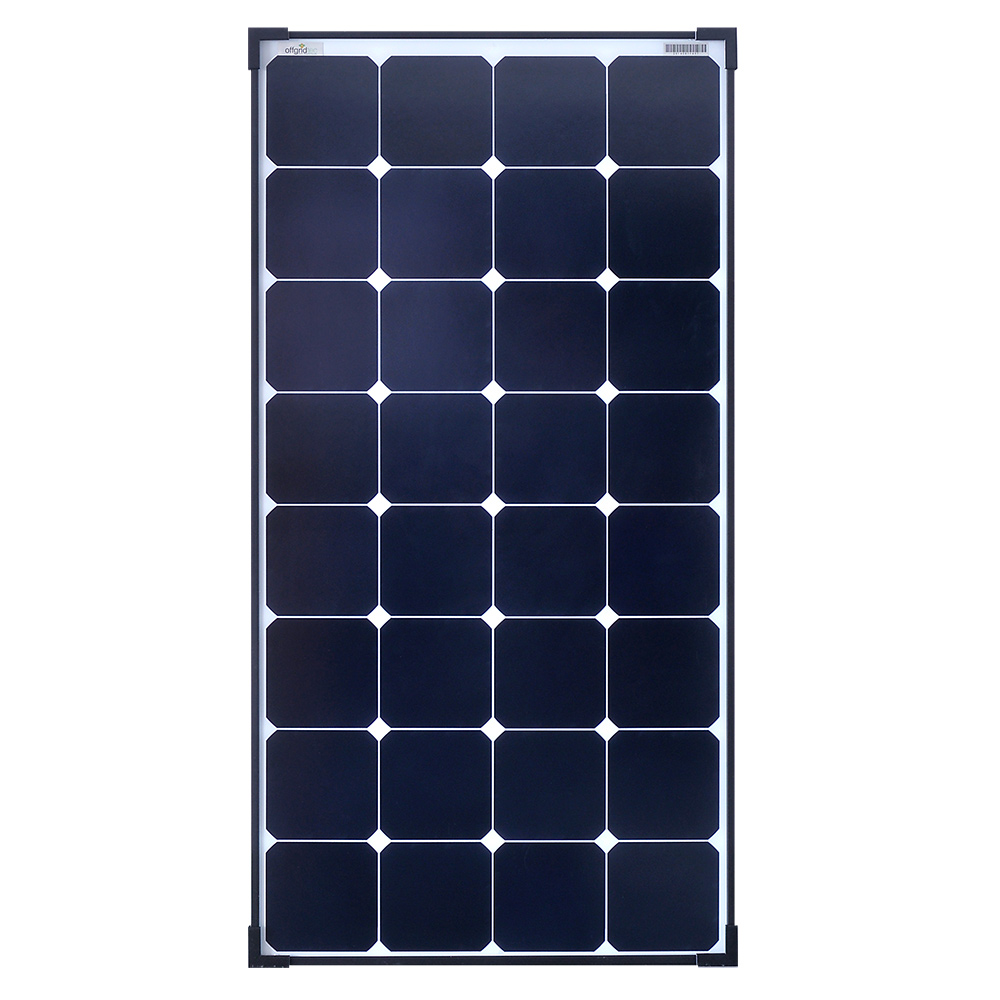

Monocrystalline 120W / 12V high-end solar panel with rear-contact high-power solar cells from the American manufacturer SunPower – currently the best that can be processed with an efficiency of over 24%. Here, the world's best solar cells and the new back-contact technology come together. The result is a high-end product at a solid price. In addition, we have particularly ensured that the rest of the module meets the high standard of the valuable cells. This panel is significantly lighter and smaller in size than conventional solar cells with the same power. Also, the light yield under poorer conditions is higher with the SP series compared to our regular mono series.
Key Features
- Cell efficiency of over 24%
- Lighter and smaller than other mono modules with the same power
- Monocrystalline high-power solar cells (made in the USA)
- 2 bypass diodes - minimized power loss due to shading
- Rear-contact (only the pure cells are visible on the front)
- Black aluminum frame (black frame)
- Extremely durable
- Ideal for motorhomes, boats/yachts, and small spaces
- Elegant appearance
In the production of our modules, only monocrystalline SunPower solar cells of the highest quality are used. Unlike conventional solar modules, the cells are connected on the rear (back-contact), which increases the cell efficiency and provides an elegant look.

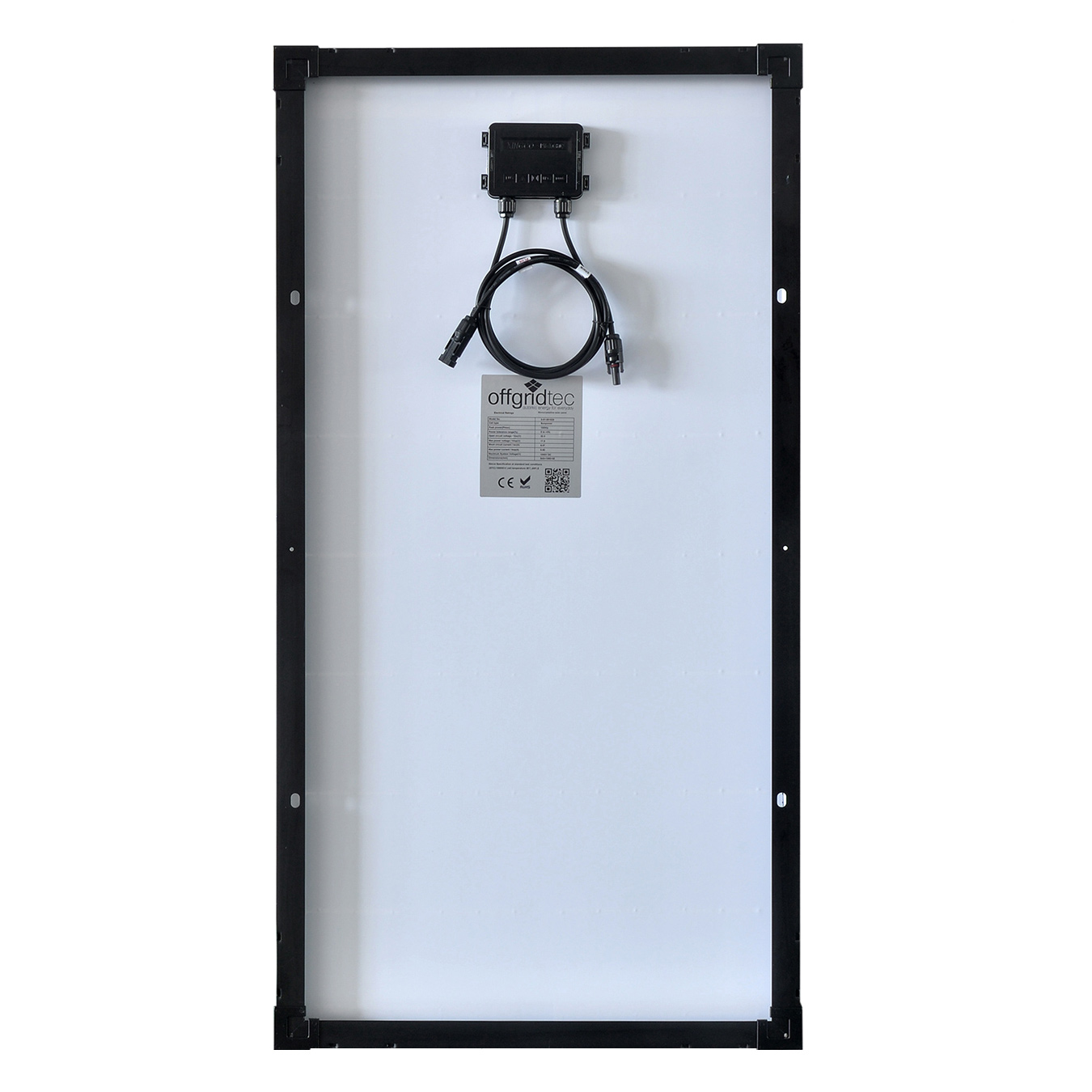

The module has a black aluminum frame and features specially tempered ESG solar glass.
The connection cables are 80cm long and equipped with MC4 connectors.

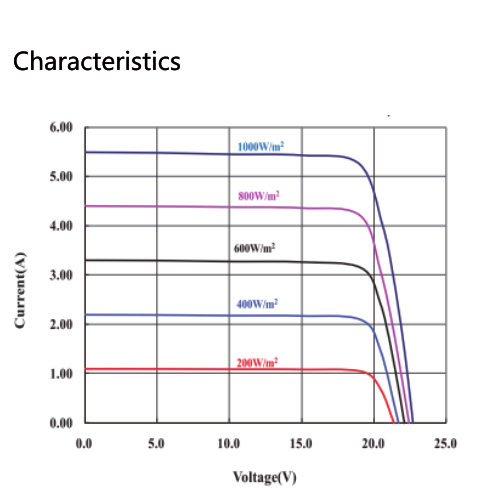

Technical Data
- Power (Pmax): 120W
- Voltage (Vmp): 19.8V
- Max. Current (Imp): 6.05A
- Open Circuit Voltage (Voc): 23.35V
- Short Circuit Current (Isc): 6.41A
- Max. System Voltage: 600V/DC
- Operating Temperature: -40 to +85°C
- Dimensions: 540 x 1055 x 35 mm
- Weight: 7.5 kg
