Offgridtec HomePremium S UPS solar system 9000Wp US5000 14.4kWh 3-phase with electricity meter

Extremely Versatile Complete Package

The Offgridtec® HomePremium Series is a true all-rounder at an unbeatable price-performance ratio. In addition to being used as a UPS backup solution with the choice between grid and battery priority, this PV system can also be used as a self-consumption system. The performance of this solar system knows hardly any limits – depending on personal needs and upon request, extensions on both the module and battery sides are possible. If a higher output power is required at the inverter, additional identical devices can also be added for power enhancement.

Alongside the power electronics, storage, and solar modules, all components required for connection are also included in the delivery, except for the solar module mounts, which must be ordered separately. All other components are plug and play – that means no tedious plug mounting or the like – just connect and you're ready. Depending on your selection, the system will be delivered with or without a power meter.

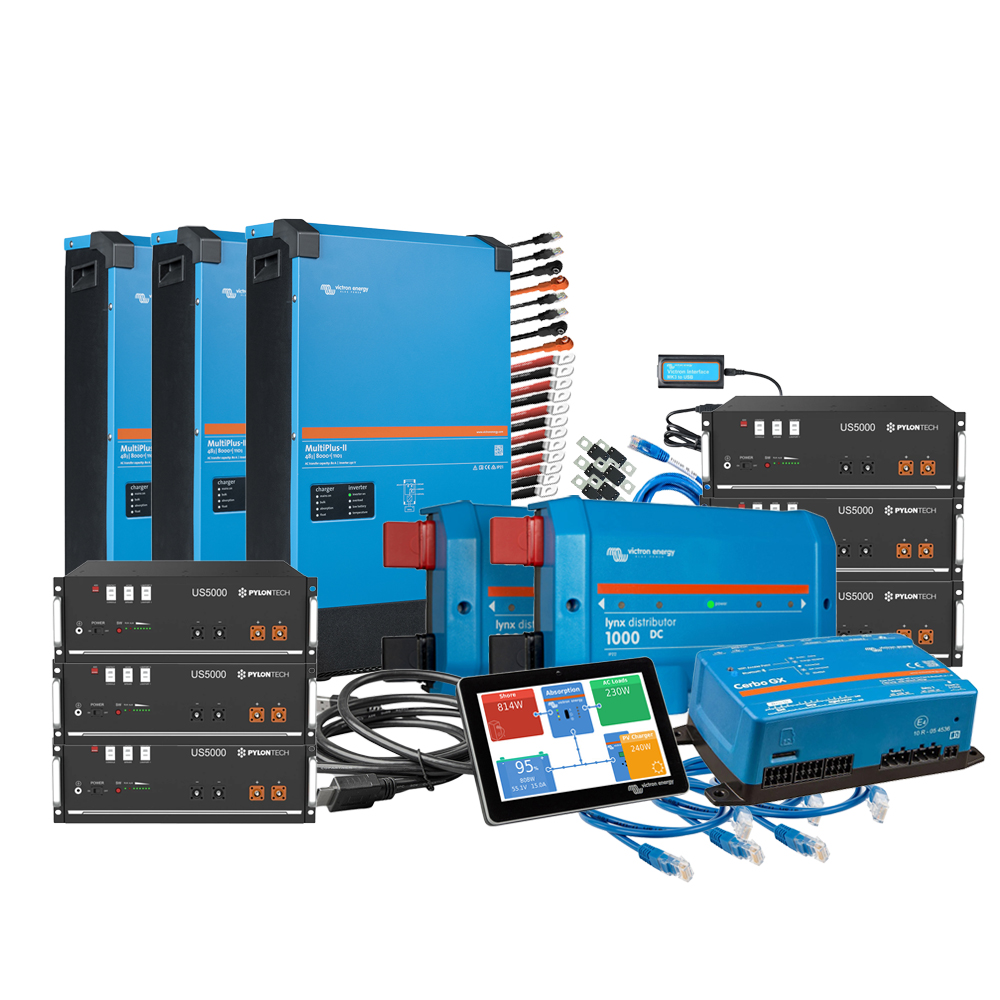

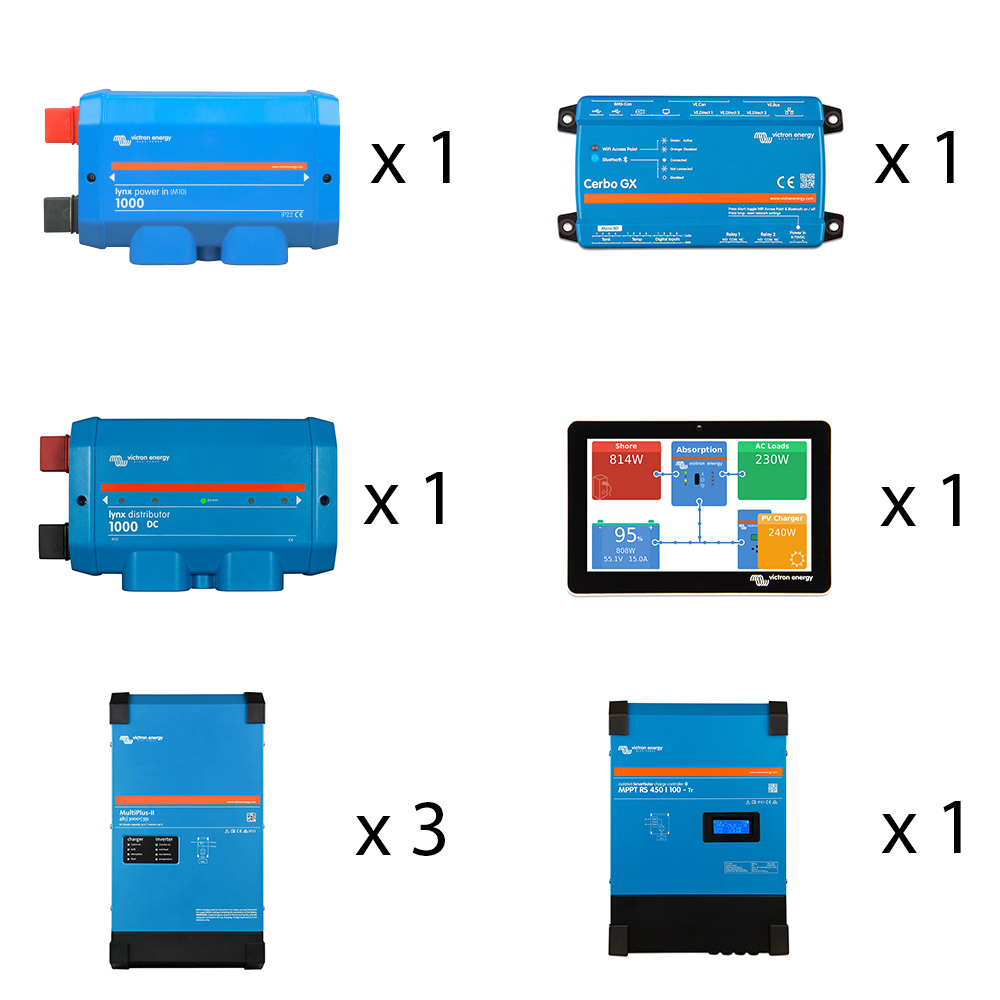

Parts List – What's Included

• 20x Luxen Solar 450W Bifacial TopCon N5 Full Black Solar Modules
• 3x 4.8kWh Pylontech US5000 LiFePo4 Storage Batteries
• 1x Victron Energy MPPT SmartSolar Charge Controller 450/100 48V
• 3x Victron Energy 48/3000 MultiPlus-II Inverter MPN PMP 482305010
• 1x Cerbo GX MK2 + 1x GX Touch 50 from Victron Energy - the communication hub of your system
• 1x Victron Energy Lynx Distributor for DC distribution and protection
• 1x Victron Energy Lynx Power In
• 2x 10m Offgridtec® Professional Connection Cable 6mm² Solar Module to Charge Controller
• 2x Pylontech Battery Connection Cable Set Pylontech to Inverter 2 x 2.0m 25mm² Amphenol to M8
• 4x 1m Battery Cable 35mm² double-sided M8 lugs
• 2x 10m 6mm² MC-4 Connection Cable
• 1x VE.Can to CAN-Bus BMS Type A Cable 1.8m ASS030710018 for connecting the Cerbo GX with the storage unit
• 2x 3m Victron RJ45 UTP Cable to connect the MultiPlus with the Cerbo GX
• 4x Mega Fuse 125A / 70V
• 2x 0.9m Victron RJ45 UTP Cable
• 3x Pylontech Brackets for US5000 LiFePO4 Battery

When selecting power meter:

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5m RJ45 UTP Cable

Extended Use of Your HomePremium System

The HomePremium system is delivered optionally with or without Victron Power Meter and cable, whereby a power meter with connection cable is mandatory for setting up an energy storage system.

With this power meter, you can make a grid-parallel installation and then monitor your energy consumption or control your energy costs. Thanks to phase compensation, you could even use the 3-phase meter for single-phase systems. This makes seamless integration of decentralized energy sources and consumers into the existing power grid effortless.

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half layout to maximize efficiency. Additionally, the SMBB Half-Cut cell technology is utilized to optimize performance.

• LECO N-TOPCon Cell Technology
• SMBB Half-Cut Cell Technology
• Low BOS & LCOE
• Bifacial Cell Module Technology
• Excellent Anti-PID and Low LID performance
• Reduced hotspot risk
• 3 Bypass Diodes – minimized performance drop under shading
• High cell efficiency of over 22.52%

Half-Cell Technology

In half-cell technology ("Half-Cut"), conventional silicon cells are halved using a laser. The resulting halves are then arranged in parallel, which, by reducing resistance losses, leads to increased performance of the solar module.

Bifacial Cells

Bifacial modules offer a significant advantage through their transparent backsides and specialized cell technology—they also utilize reflected light. This leads to significantly increased energy yields, making these modules a particularly efficient choice for your solar system.

Technical Data

• Maximum Power: 450W
• Module Voltage (Vmp): 30.08V
• Max Current (Imp): 14.96A
• Open Circuit Voltage (Voc): 35.21V
• Short-Circuit Current (Isc): 16.02A
• Module Efficiency: 22.52%
• Max Operating Voltage: 1500V DC
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30mm
• Cells: 96 (6x16)
• Protection Class IP68
• Connection: MC4
• Weight: 24kg

LiFePo4 Storage Technology from Pylontech – Proven, Reliable, Safe

The US5000 storage battery used from Pylontech is a state-of-the-art lithium iron phosphate battery. A maximum lifespan with optimal safety is guaranteed with this modular system. Each module contains a battery management system (BMS) that provides comprehensive protection against overcharging, as well as against damage due to high currents or high or low temperatures. A defect of the battery due to short circuit or polarity reversal is also excluded.

Features of the Pylontech US5000 Storage Modules

• Extremely cycle stable – over 6000 cycles at 95% DoD (depth of discharge per cycle)
• Fully safe due to integrated shutdown protection (BMS)
• High charge and discharge performance
• Very high storage density
• Lightweight and compact design
• Completely maintenance-free and easy to install

The Heart of the System – the Victron MultiPlus-II 48/3000

The MultiPlus-II 48/3000/70-50 from Victron Energy (MPN PMP482305010) combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. This enables PowerControl and PowerAssist functions to be extended to 100A, allowing for use in ESS applications.

Performance Features and Properties of the MultiPlus-II 48/3000

• PowerControl and PowerAssist – increase grid or generator power
• Built-in anti-islanding functionality and connection option for external current sensors (optional)
• Can be used as a backup device in grid-connected systems
• VE.Bus interface for parallel and three-phase operation
• Remote monitoring and system integration
• Approved according to VDE-AR-N 4105

Technical Data

• 3000 W performance under non-linear load - 2400 W continuous load - 5500 W peak power
• For 48 V battery voltage, 32A transfer switch and 35A battery charger
• Output Voltage: 230 VAC, Frequency: 50 Hz
• Max Efficiency: 95%
• Protection Class IP22

Maximum Flexibility Thanks to Two AC Outputs

The MultiPlus-II provides uninterrupted operation by automatically taking over the supply of consumers during power outages or interruptions in land/generator power. The switching occurs in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output only delivers power when AC input to the MultiPlus-II is present. This allows consumers like a water heater, which should not be discharged from the battery, to be connected.

Configuration

The MultiPlus-II is delivered unconfigured as standard. You will find the configuration manual for the system in the download area. Should you wish for pre-configuration by us, we are happy to carry this out for an additional charge. For this, please add the above-linked item "Offgridtec Pre-Configuration" to your shopping cart during the checkout process. Please note that shipping may take an additional 3-5 business days until the configuration is completed.

Victron Energy Cerbo GX MK2 and GX Touch 50 – the Communication Hub of Your System

The latest development in system monitoring from Victron Energy allows for easy control and configuration of your system. Complemented by the GX Touch 50 – a waterproof 5-inch touchscreen – you will always have an overview of your system parameters. Thanks to the features of the Cerbo, the system can be perfectly monitored and managed, and it allows for the maximization of system performance in an unprecedentedly easy way.

Victron Energy has developed a new system monitoring that enables you to easily control and configure your system. The GX Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. With the Cerbo module, you can monitor your system precisely and maximize performance. It is compatible with both solar charge controllers and grid-connected inverters. Mounting materials and connection cables are included in the delivery. Thanks to the Bluetooth function of the GX Touch 50, access to your system is even quicker and easier. An optional wall mount is available.

Victron Remote Portal

The Victron Remote Portal (VRM) is a free Victron Energy service that allows you to read your system’s data remotely and configure the devices accordingly. This means you always have full control and oversight of all relevant system parameters even in your absence. The functionality is available as a demo online and is well-suited to give you a first impression - https://vrm.victronenergy.com/landingpage

Safety Notice: Allow only a qualified electrician to install and commission this complete system.
