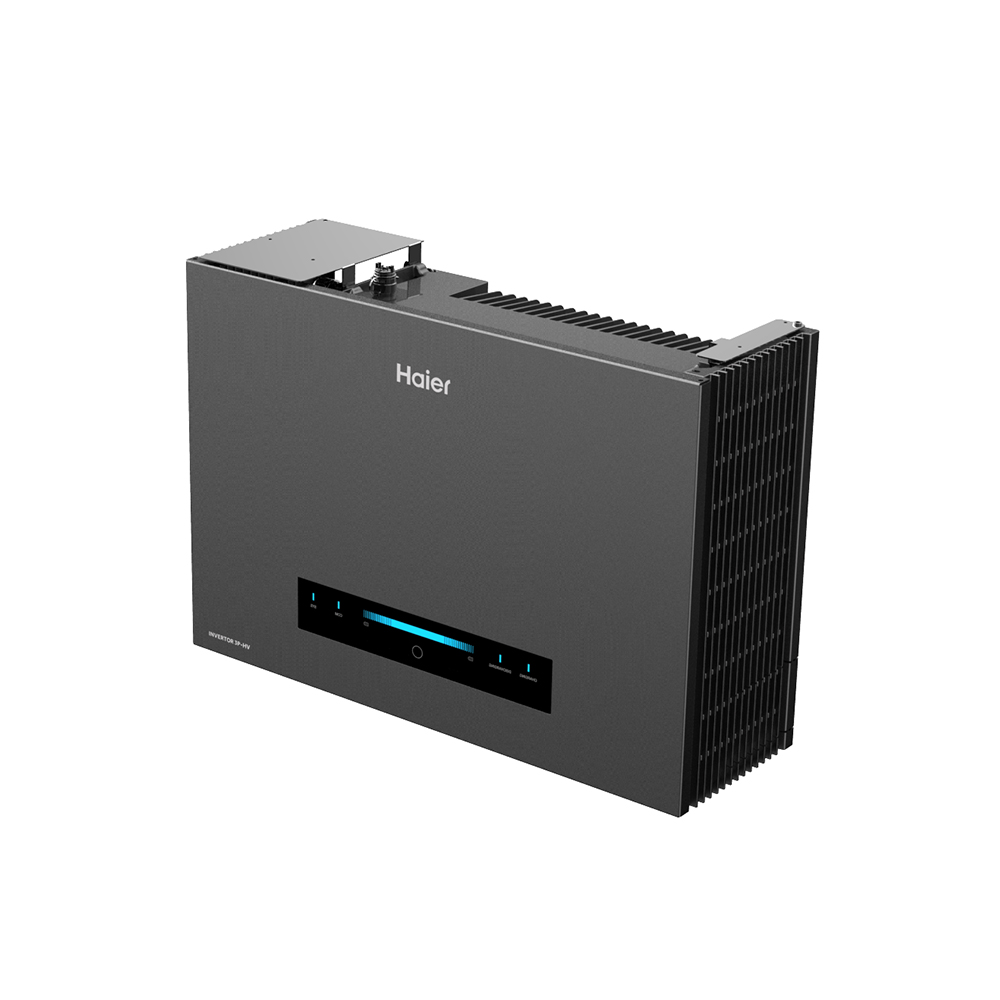

Haier Hybrid Inverter 5 kW 3-Phase HAH3P-5KB1/HU9

The Haier 3-phase hybrid inverter (MPN: HAH3P-5KB1/HU9) delivers 5 kW of power and serves as the heart of your flexible home energy storage solution. Together with the matching battery modules and a maximum capacity of 28.8 kWh, you can reduce your dependence on rising electricity prices and grid fluctuations. Intelligent energy management ensures that your self-generated electricity is used optimally. In the event of a power outage, the inverter takes over the emergency power supply in a flash—in less than 10 milliseconds. Additionally, the system supports maximizing self-consumption and taking advantage of dynamic electricity rates, and can be easily expanded with additional features. The inverter reliably converts the direct current (DC) generated by your solar modules into standard household alternating current (AC). This allows you to either feed the generated solar power directly into the public grid or store it in your batteries for later use.

Your benefits

• Advanced load management: up to 150% unbalanced load in three-phase systems for a consistent power supply
• Smart operation: Dynamic rates to optimize energy costs and automatic adjustment of battery output
• Continuous safety: Fast backup switchover and enhanced fire protection
• Performance: Optimization of energy consumption and maximum efficiency of your system
• Flexible installation: Choose between wall or floor mounting, indoors or outdoors
• Warranty: 10-year manufacturer’s warranty; find more information here

Arc Fault Circuit Interrupter (AFCI)

If your PV modules, connectors, or cables are improperly installed or damaged, arcs can occur, which may cause fires. To quickly prevent such fires, Haier has developed an optional arc fault detection system. This feature is installed and ensures a higher level of safety for you and your PV system.

Three MPP trackers for optimal solar yields

Maximum Power Point Tracking (MPPT) technology ensures your solar system generates the best possible yield. Throughout the day, the MPPT determines the optimal balance between irradiance, module temperature, and solar cell type. Thanks to the three trackers, the optimal operating point for the two PV strings can be optimized separately. They operate independently of one another, so, for example, shading on one string would not affect the second or third.

Technical Specifications

PV Input

• Max. PV input power: 10 kW
• Max. PV input power per MPPT: 7 kW
• Max. input voltage: 1100 V
• MPPT voltage range: 140–950 V
• Start voltage: 85 V
• Max. input current: 16/16/16 A
• Max. short-circuit current: 24/24/24 A
• Max. number of input strings per MPPT: 1/1/1

Battery

• Battery voltage range: 90–700 V
• Max. charging current: 50 A
• Max. discharge current: 50 A

Grid connection

• Rated output voltage: 5 kW
• Max. output current: 8.3 A
• Max. apparent output power: 5.5 kVA
• Max. input power: 10 kW
• Nominal mains voltage: 220 V, 230/400 VAC, 3L/N/PE
• Mains voltage range: 150–288 VAC
• Frequency: 50/60 Hz

General

• Efficiency: 98%
• EU efficiency: 97.5%
• MPPT efficiency: 99.9%
• Backup switchover time: <10 ms
• Noise level: <30 dB
• Communication with BMS: RS485/WiFi/4G/Ethernet
• Cooling: Natural convection
• User interfaces: LED and app
• Operating temperature range: -25°C to +60°C
• Weight: 29 kg
• Dimensions: 590 x 416 x 205 mm

Included

1x Haier Hybrid Inverter 5kW 3-phase HAH3P-5KB1/HU9
