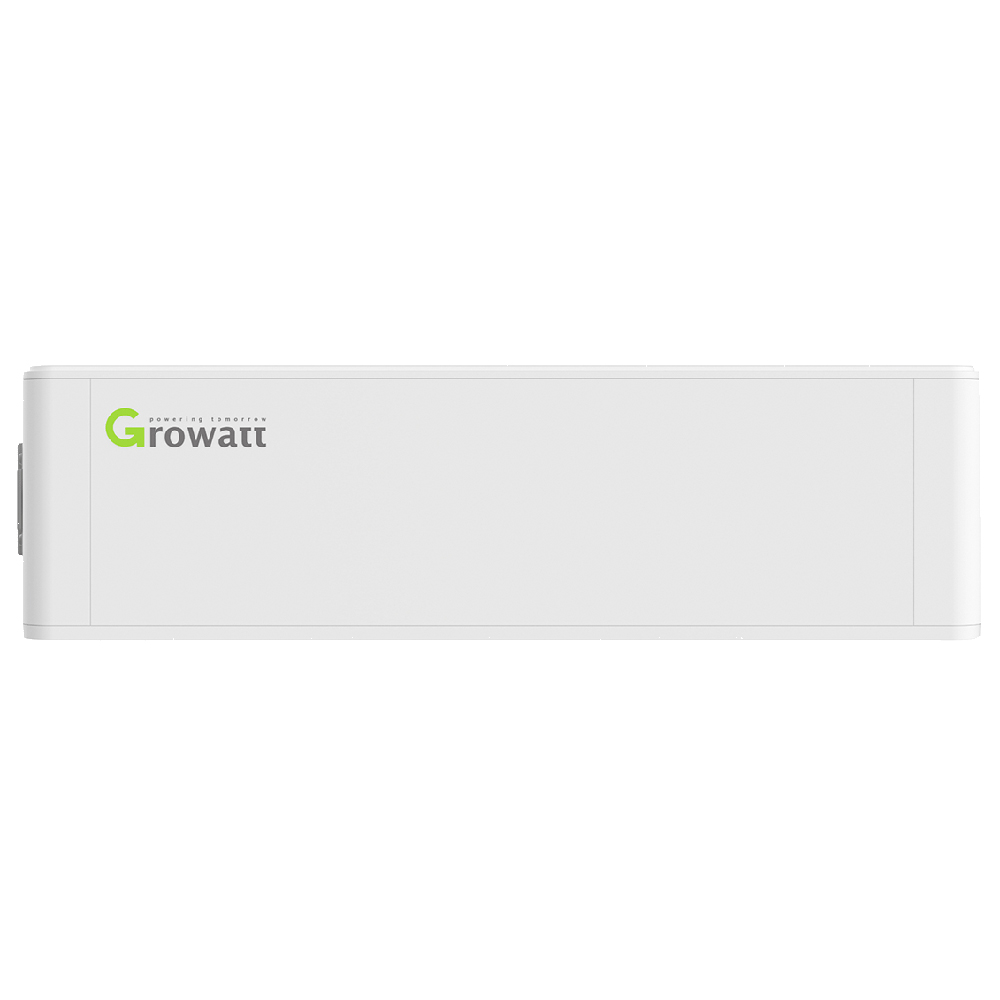

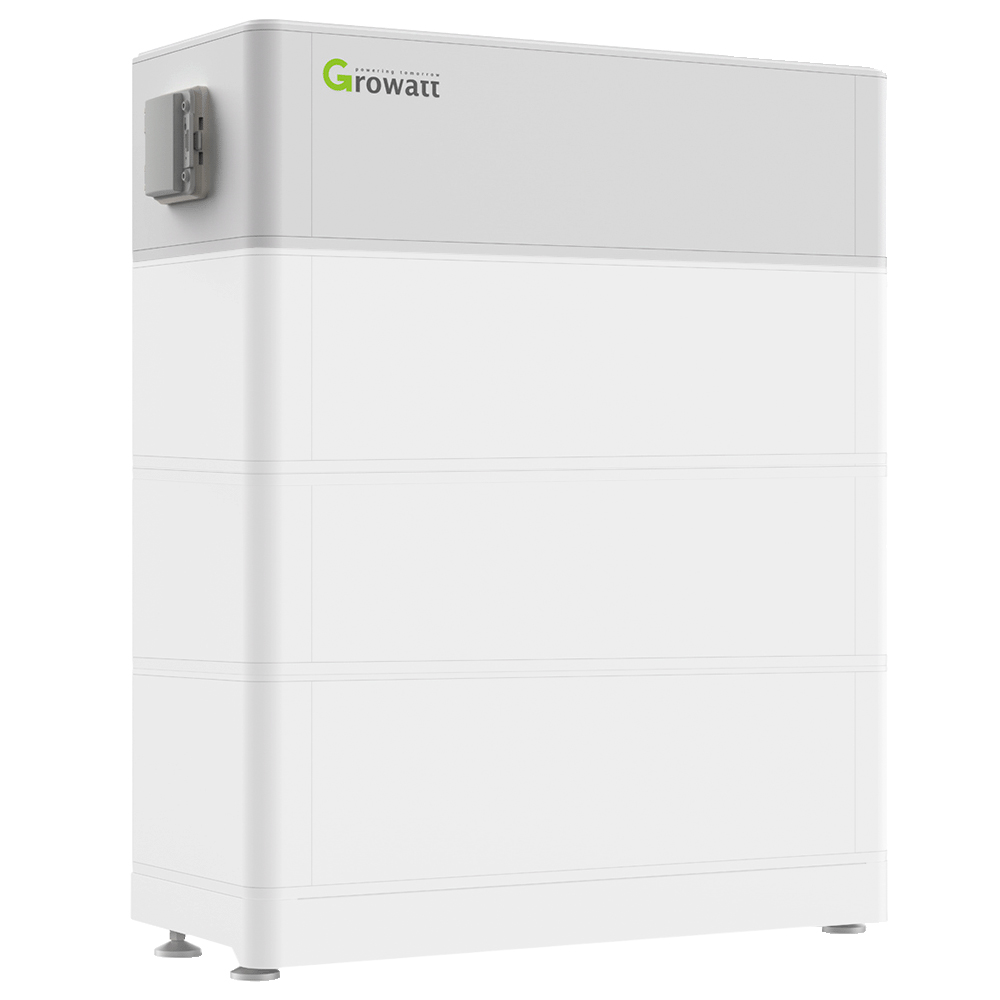

The Growatt battery management system (MPN: HVC 60050-C2) is a central monitoring and control unit. It is part of the ARK HV high-voltage battery system and supports communication with Growatt SPA and SPH inverters. This BMS can connect up to 10 battery modules, each with a capacity of 2.56 kWh. These modules can be connected in series to form a battery tower offering a total capacity of up to 25.64 kWh. Storage towers can also be connected to each other, with one BMS required per tower. The mounting base and the corresponding cable set are already included.
About the HVC 60050-C2 BMS
- Compatible with Growatt SPA and SPH inverters
- Modular, stackable battery concept
- Monitoring and control
- Cables and base included in the package
BMS Control Parameters
Control parameters include state of charge (SOC), grid voltage, current, cell voltage, cell temperature, and PCBA temperature measurement. By precisely monitoring these parameters, the BMS ensures optimal battery performance and longevity.
Flexible Expansion
Growatt’s ARK battery system offers high flexibility thanks to its scalable configuration options, ranging from 2.56 kWh to 25.6 kWh. Installation and expansion of the system are simple and straightforward thanks to its modular design and the use of cables. Another innovation of the ARK system is that, unlike other battery systems, no battery cabinet is required. Only a battery base is needed to ensure stability.
Technical Specifications:
- Input/output voltage range: 90–585 V
- Rated current: 25A
- Protection class: IP65
- Temperature range: -10~50°C
- Dimensions: 650 x 260 x 185 mm
- Communication: CAN
- Weight: 8.5 kg
Included in delivery:
1x Growatt HVC 60050-C2 BMS control unit
1x Cable set
1x Battery Base
1x Quick Installation Guide
