The Growatt hvc-60050-a1 bms is a central monitoring and control unit that is part of the ark hv high voltage battery system and supports communication with Growatt spa and sph inverters. Up to 10 battery modules, each with a capacity of 2.56 kWh, can be connected to this bms. These modules can be connected in series to form a battery tower that provides a total capacity of up to 25.64 kWh. Storage towers can also be interconnected, requiring one bms per tower.
About the hvC 60050-a1 bms
- Compatible with Growatt spa and sph inverters
- Modular, stackable battery design
- Monitoring and control
bms control parameters
Control parameters include state of charge (soc), line voltage, current, cell voltage, cell temperature and PCBA temperature measurement. By precisely monitoring these parameters, the bms ensures optimal battery performance and longevity.
Flexible expansion
Growatt's ark battery system offers great flexibility through its expandable configuration options, which range from 2.56 kWh to 25.6 kWh. Installation and expansion of the system is simple and straightforward due to its modular design and use of cables. Another innovation of the ark system is that, unlike other battery systems, no battery cabinet is required. Only a battery base is required for a stable stand.
Technical data:
- Input/output voltage range: 90~585V
- Rated current: 25A
- Protection class: IP65
- Temperature range: -10~50° C
- Dimension: 650 x 260 x 185 mm
- Communication: CAN
- Weight: 8,5 kg
Scope of delivery:

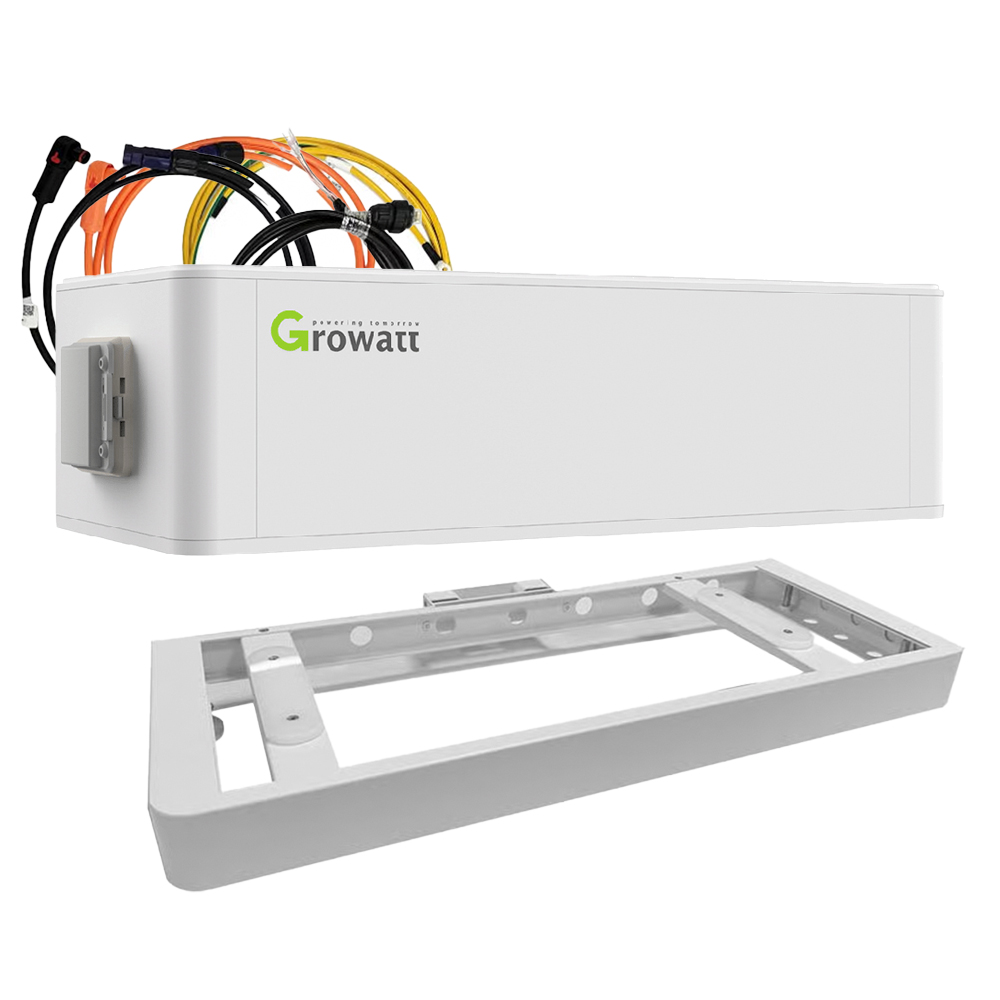

1x Growatt hvC 60050-a1 control unit bms
1x connection cable set to battery
1x quick installation guide
