150 Watt Solar System Basic Starter 150W / 12V - Solar Module Solar Charge Controller

Our affordable 150-watt solar set from Offgridtec for DIY installation. This low-cost version does not include pre-made cables and relies on solid charge controller technology. The result is an unbeatable package price for which you get a 150W Offgridtec Mono solar module, an Offgridtec PWM Pro charge controller 12V/24V 30A USB, as well as 15m 4mm² solar cable, 1 pair of MC-4 connectors, 1 pair of battery terminals, and the Offgridtec Basic battery connection cable with M8 ring cable lugs for assembling your system.

Technical highlights of the 150W 12V Basic Starter Complete Set

• Powerful: The kit works with the 150W V2 module from Offgridtec and is equipped with monocrystalline cells; only modules with power tolerances in the + range are delivered.

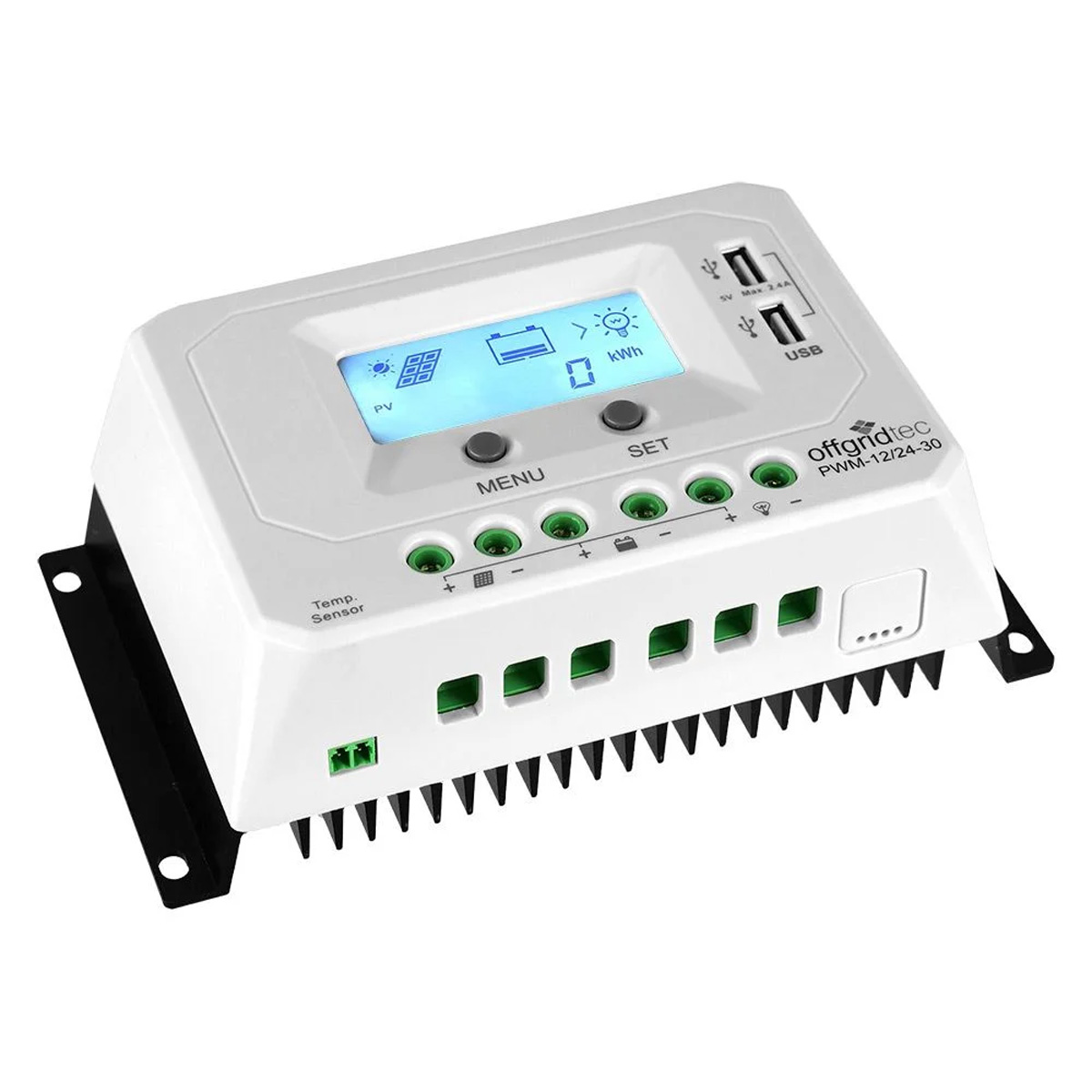

• Flexible: The PWM-Pro 30A 12V/24V charge controller is ideal for leisure and hobby applications. It has a controllable load output with 30A power, which you can use to control lighting or lights via adjustable timers, for example.
• Expandable: A second module can easily be connected to the 30A controller if you want to expand your solar power capacity in the future. In 24V mode, the system can even be expanded to a total of 600W solar power.
• Versatile applications: The kit is the ideal starting point for building a 150W garden solar system and, with optional mounting components, is also ideal for caravan solar systems.
• Solid solar power yields: The 150W panel produces an average of 600Wh of clean energy per day in summer. More on sunny days, less on rainy days. Other factors (inclination, temperature, pollution, latitude, weather conditions, etc.) also affect the performance of a solar system.
• Contains all cables required for commissioning: The kit is equipped with all cables and plugs required for commissioning the system.

The 150-watt Basic Starter Solar Kit – what's included

• 1 x 150W V2 mono solar module, Offgridtec 018395
• 1 x PWM Pro charge controller 12V/24V 30A USB, Offgridtec 1-01-010920
• 1 x 1.5 m 2x6 mm² Basic battery connection cable, Offgridtec 002180
• 1 x 15m solar cable 4mm² from Lapp-Kabel
• 1 pair of MC4 solar connectors from Multi-Contact (4mm²)
• 1 pair of wire end ferrules
• 1 pair of battery terminal clamps

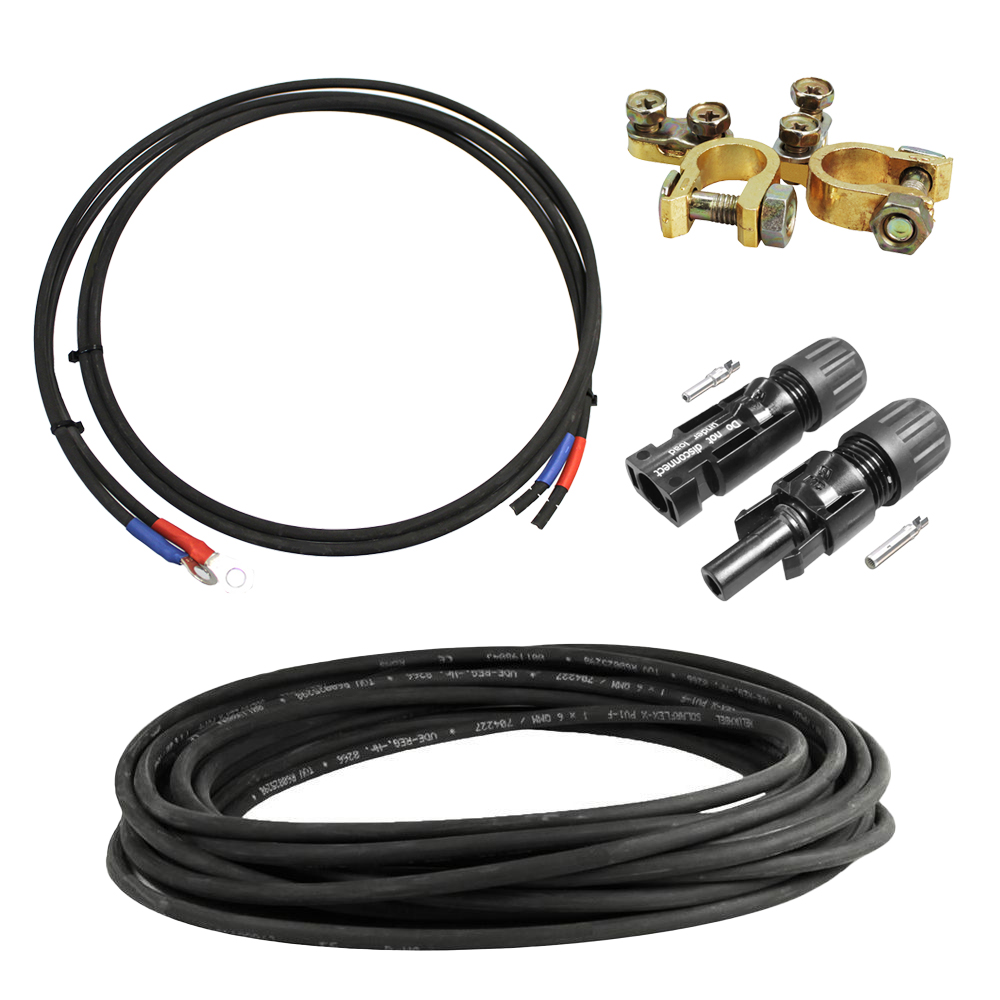

Information about the cables and small parts (connectors)
In addition to the module and charge controller, the set also contains all the connectors, cables, and small parts you need to make the connection cables for your solar system.

The following parts are included in the module connection cable:
- 15 m solar cable 4 mm², MC4 plug, wire end sleeves 4 mm²

The following parts are included in the battery connection cable
- 2 x 1.5 m 6 mm² solar cable, 6 mm² wire end ferrules, M8 ring cable lugs, and battery terminals

Tip: If you prefer not to do it yourself or do not have the appropriate specialist tools, you will find complete sets with ready-made professional connection cables in various lengths in our shop in the "Accessories / Solar Modules" category.
