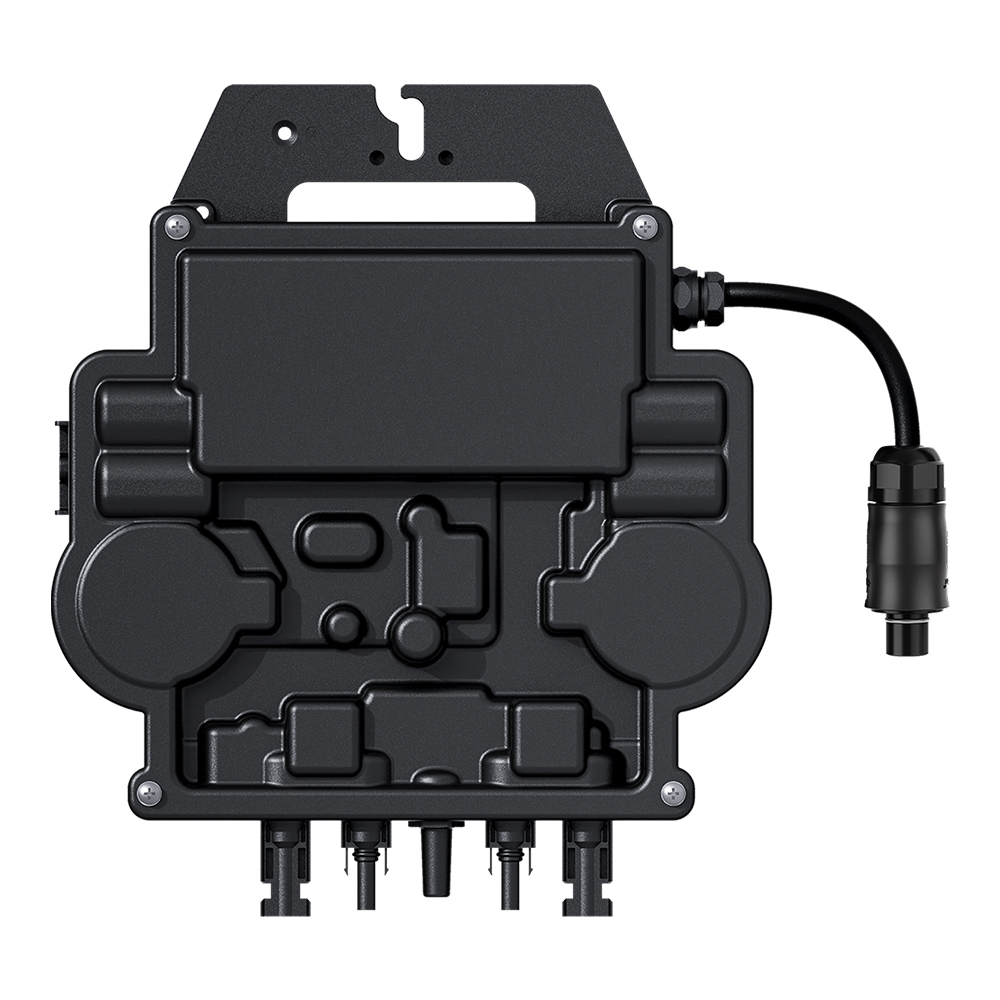

Zendure EZ1-M 800W Micro Inverter

Take advantage of the full power of the EZ1-M micro inverter from Zendure (MPN: EZ1-M) and have complete control over your balcony power plant. The inverter allows you to connect up to 2 modules with a total output of 730Wp. With the 5m AC extension cable, you can simply connect the inverter to a power outlet and start generating energy right away. With the integrated WiFi and Bluetooth connection, you can conveniently control the device via the user-friendly Zendure app. Flexibly adjust the feed-in power from 0 to 800 W according to your needs – quickly and easily at the touch of a finger. The innovative plug-and-play design ensures effortless and quick installation. Optimize your power flow, increase efficiency, and control your energy consumption with ease.

Advantages of the micro inverter

• Connection for up to 2 modules
• 2 input channels with independent MPPT
• Integrated safety relay
• High input current for large modules
• Real-time monitoring
• Remote control via the Zendure app
• Communicates via Wi-Fi and Bluetooth
• Specially designed for balcony systems

Two MPP trackers for optimal solar yields

Maximum Power Point Tracker (MPPT) technology maximizes the yield of a solar system by determining the ideal ratio between solar radiation, module temperature, and the properties of the solar cells throughout the day. The EZ1-M inverter with two MPP trackers allows the optimal operating point for two separate photovoltaic strings to be optimized independently of each other. These two trackers work independently, which means that, for example, shading in one string has no effect on the other.

Zendure app

The Zendure app allows you to monitor the inverter and change settings. Information is displayed in real time, including weather and green electricity consumption, so you can configure your system optimally. The app also allows you to query historical data.

Technical data

Input

• Recommended module power range: 300-730Wp
• MPPT voltage range: 28-45V
• Operating voltage range: 16-60V
• Max. input voltage: 60V
• Max. input current: 2x 20A
• Short-circuit current PV (Isc): 2x 25A

Output

• Max. output power: 799VA
• Nominal output voltage: 230V / 184-253V
• Nominal output current: 3.5A
• Nominal output frequency: 50Hz / 48-51Hz

General

• Max. efficiency: 96.7%
• Operating temperature range: -40°C to +65°C
• Storage temperature range: -40°C to +85°C
• Cooling: natural convection
• Protection class: IP67
• Communication: integrated Wi-Fi and Bluetooth
• Weight: 2.8 kg
• Dimensions: 263 x 218 x 36.5 mm

Scope of delivery:

1x Zendure EZ1-M micro inverter
1x 5 m AC cable 1.5 mm²
