Zendure AIO Pro 1335Wp balcony power plant bifacial with storage

The All-In-One Pro complete system from Offgridtec (MPN: 019825) is a powerful 1335Wp balcony power plant that offers you the ideal solution to produce part of your household electricity independently. The core component is the Zendure AIO Pro storage system, which combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000S battery. The set is completed with three high-performance 445W TopCon solar modules from Trina Solar. Matching connectors and cables are included to ensure a simple, plug-and-play setup without cable clutter.

• Plug & Play – Plug in and save money
• Monitor your self-consumption
• Live more sustainably
• Fast return on investment

The balcony power plant complete set includes:

• 1x Zendure AIO Pro 1200 All-in-One Storage System
• 3x Trina Solar 445W Vertex S+ Dual Glass N-Type TopCon Solar Modules

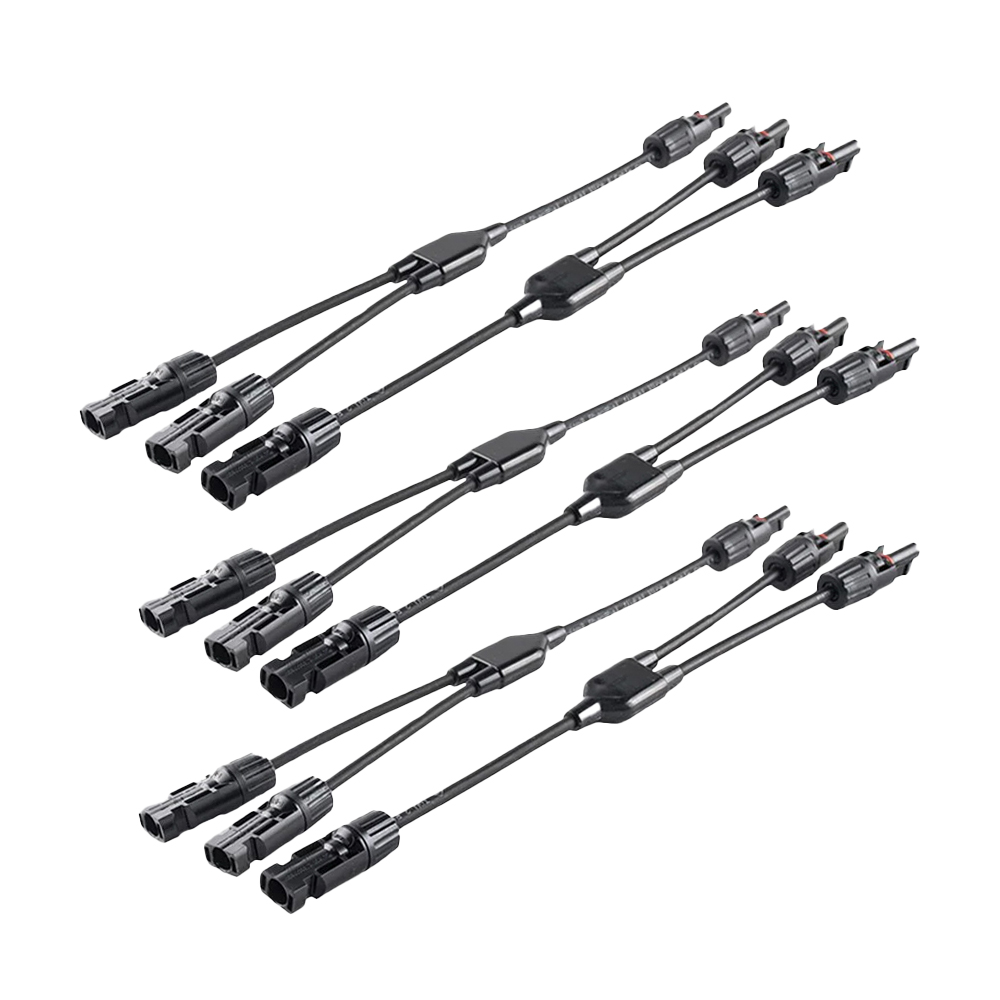

• 3x Offgridtec 2-Way Y-Connectors incl. Cable Extension (Pair)

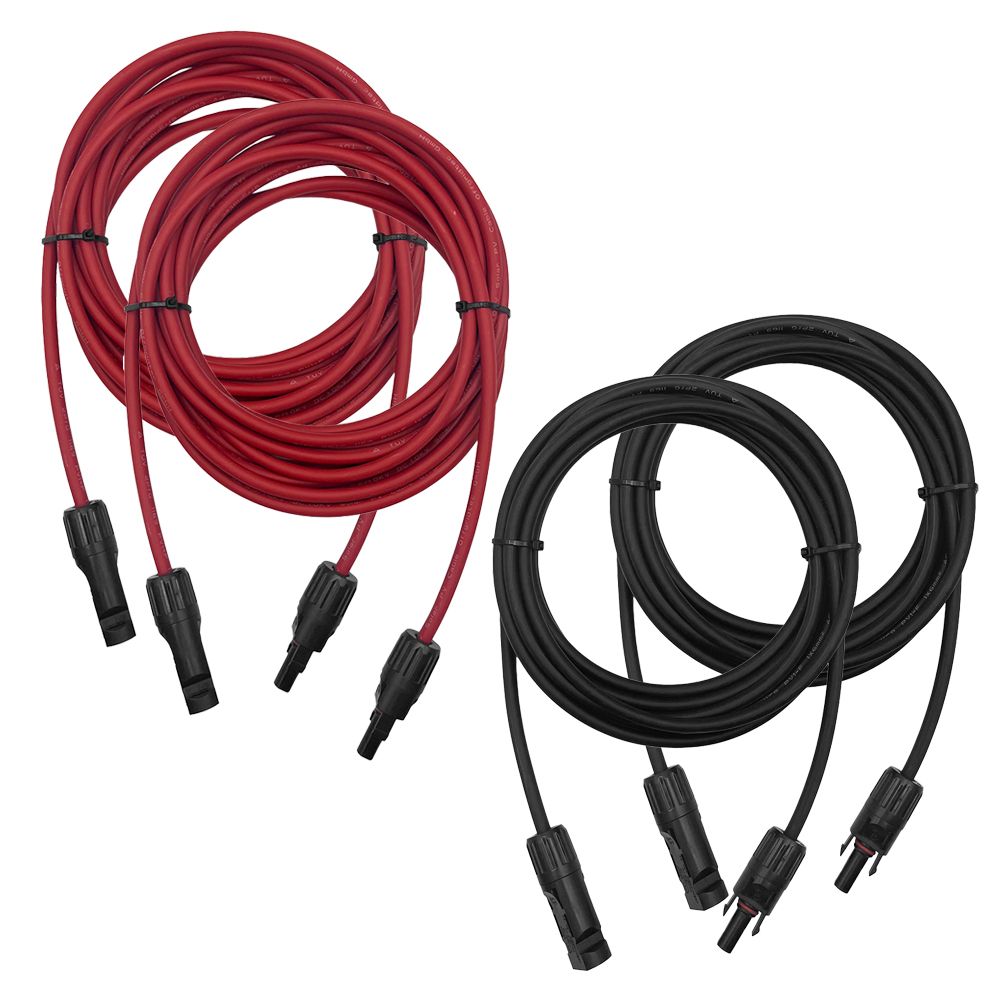

• 2x MC4 to MC4 Connection Cables 6mm², 5m red/black

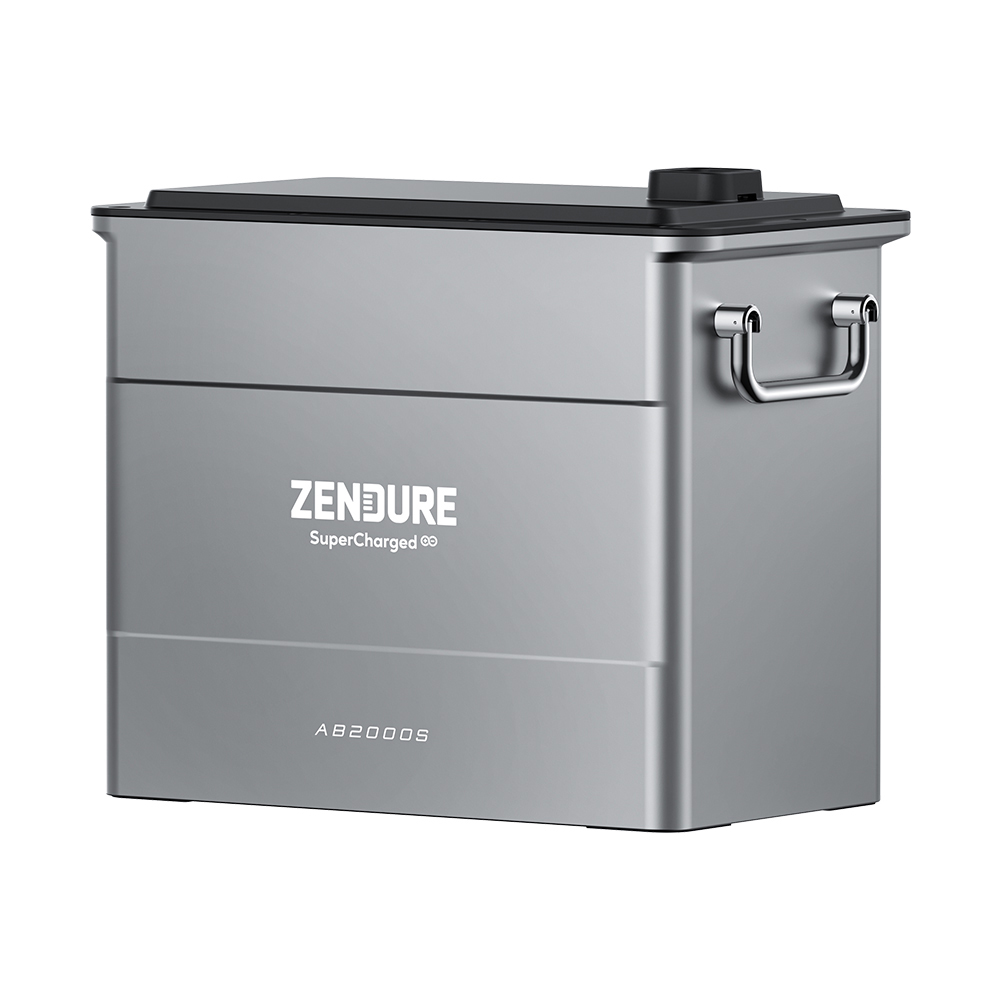

• 1x Zendure AB2000S Expansion Battery 1920Wh

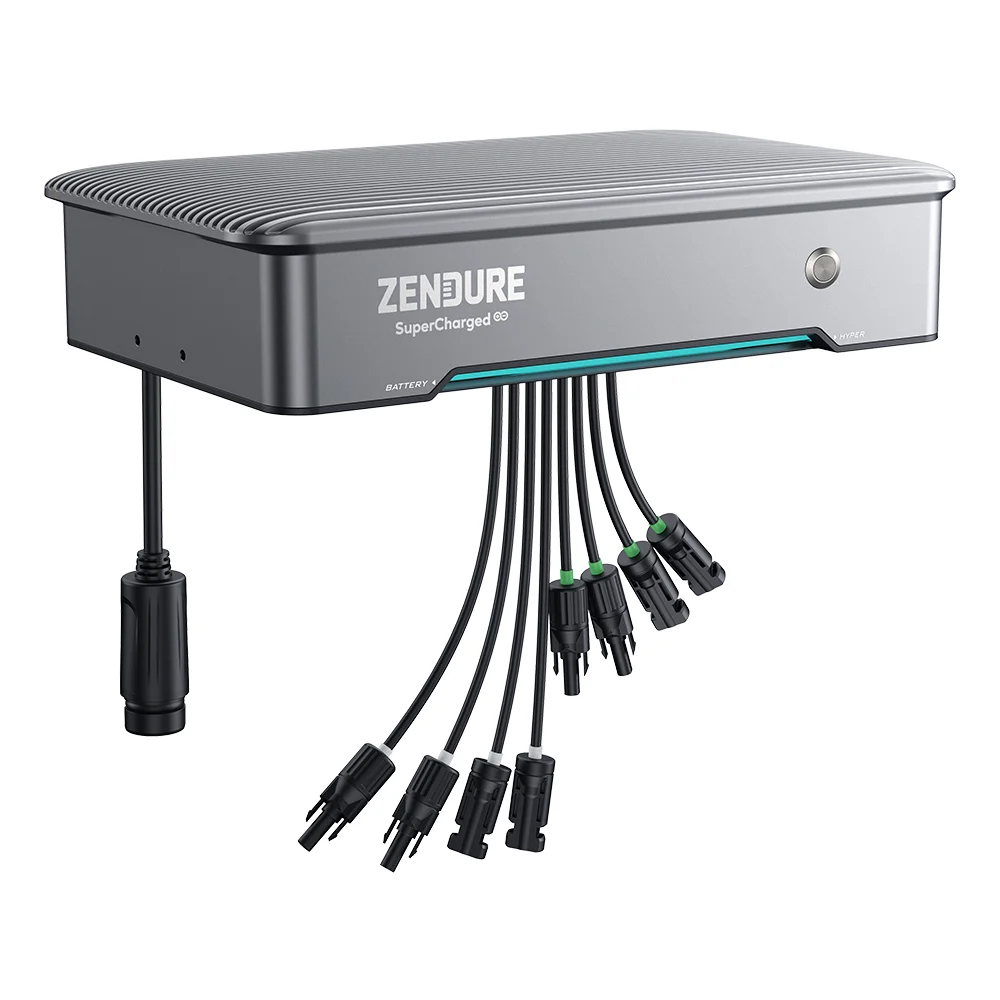

All-In-One Pro 1200 Storage System

With the SolarFlow storage system from Zendure, you receive an efficient solution to charge your balcony power station battery via solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000S battery equipped with the latest LiFePO4 cell technology.

• Hybrid inverter
• Flexible storage with expansion options
• Automatic multi-set connection via ZenLink
• Anti-discharge technology
• Time-of-use automation
• AC-coupled storage solution
• 1200W bidirectional AC output

Technical Data

Inverter

• Nominal voltage: 15V–55V
• Recommended input: 350W–550W
• Number of MPP trackers: 2
• MPPT voltage range: 16–48V
• Nominal current: 20A per MPPT
• Nominal power: 900W per MPPT

Battery

• Capacity: 1920Wh / 48V
• Battery type: LiFePO4
• Max. expandable capacity: 4 x 1920Wh = 7680Wh

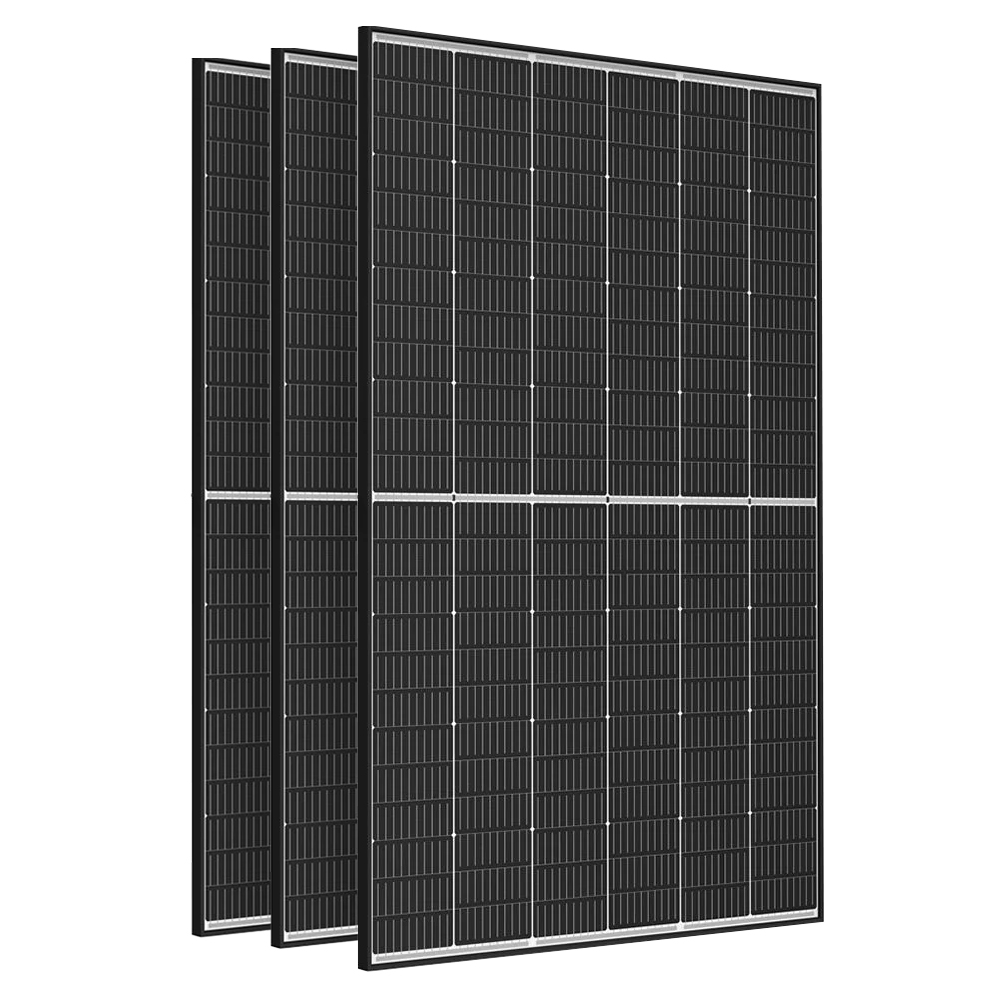

Trina Solar 445W Vertex S+ Solar Module

The Trina Solar Vertex S+ is a high-performance 445W solar module featuring monocrystalline TOPCon cells and dual-glass technology. Thanks to multi-busbar technology, it offers improved light absorption, lower series resistance, better current collection, and enhanced reliability. It is certified for extreme wind and snow loads (5400 - 4000 Pa) and features 1.6mm thick high-transparency, anti-reflective coated glass.

• Multi-busbar technology
• Dual-glass design
• High-density cell interconnection
• N-Type i-TOPCon cell technology
• Very low degradation
• High efficiency of 22.3%

Technical Data

• Power (Pmax): 445W
• Voltage (Vmp): 44.3V
• Max. current (Imp): 10.05A
• Open-circuit voltage (Voc): 52.6V
• Short-circuit current (Isc): 10.71A
• Operating temperature: -40°C to +85°C
• Max. system voltage: 1500V DC
• Max. fuse rating: 20A
• Cell efficiency: 22.3%
• Number of cells: 144
• Junction box protection: IP68
• Dimensions: 1762 x 1134 x 30 mm
• Weight: 21.1 kg
