Wattstone PV elevation flat roof for 2 solar modules 15° concrete base aluminum-laminated building protection mat
Shipped in 2-5 days
Maximize the effectiveness of your Solarasystem with this user-friendly module mounting set (mpn 019915). This set allows you to easily install your solar modules next to each other on a flat roof - without interfering with the roof structure. The system is also suitable for positioning in the garden, on the terrace or on other flat surfaces. The set is suitable for solar panels with a module height of 30 mm.
The concrete bases from Wattstone concrete bases are perfect for mounting several solar modules in rows in any direction. By using the optional tilt angles of 0, 6, 10 and 15 degrees, the full potential of your Solarasystem is exploited and optimum energy generation is guaranteed.

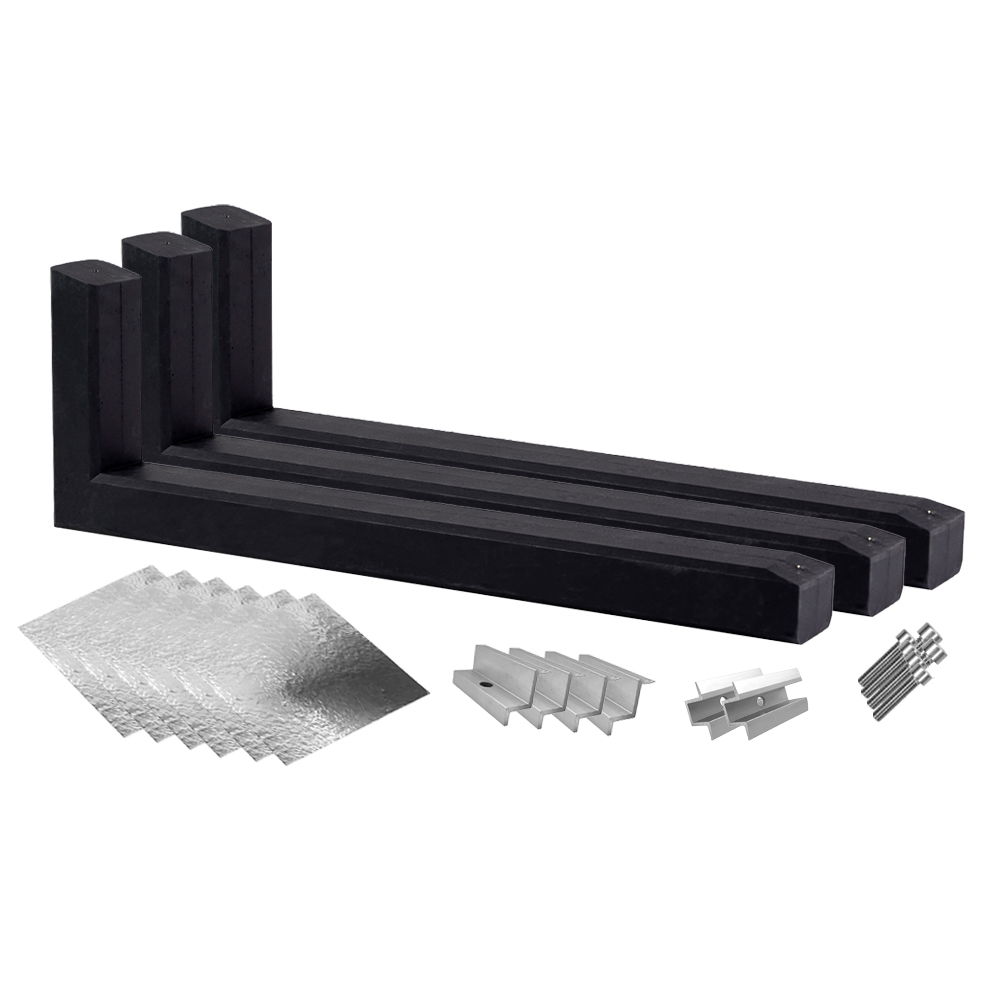

The set includes (depending on selection):
- Wattstone concrete base - Quantity depending on the number of solar modules
- Wattstone building protection mats - aluminum-laminated or black
- Offgridtec Module end clamps
- Offgridtec Module center terminals
- Offgridtec m8x20 hexagon socket screws
- Offgridtec m8x25 hexagon socket screws
Maximize your performance
By connecting the solar modules in series, the voltage of your Solarasystem is significantly increased. This leads to more efficient energy conversion and lower line losses throughout the system.
Optimum use of space
This installation method enables maximum utilization of the available roof or floor space. By positioning the modules in rows, the space can be optimally utilized without creating excess gaps.

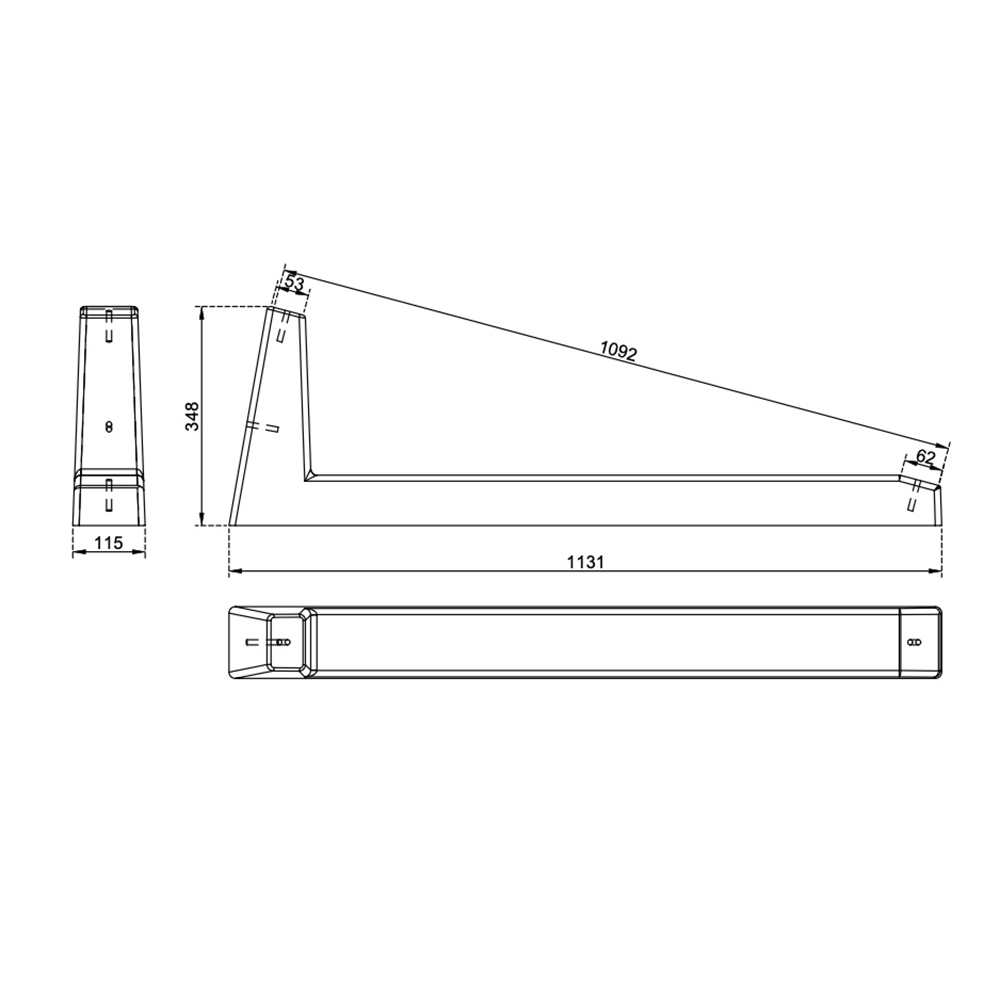

The Wattstone concrete base
- Flat roof mounting
- Selectable between 0, 6, 10 and 15 degree angle of inclination
- Substructure and weighting in one
- No drilling of the roof structure necessary
- No complicated assembly with tools
- Concrete base made of fine-pored exposed concrete
- Integrated m8 thread
- Quick and easy installation
- Color: anthracite
Traditional PV surface elevations usually require anchoring, bonding or ballasting to the roof. Concrete slabs are often used as ballast. With the robust concrete bases from wattstone as the basis for the surface structure, these steps are completely eliminated. The concrete base lies securely on smooth bitumen, bitumen with slate, pvc, epdm and smooth concrete, both in dry and wet conditions.
m8 thread
The integrated m8 threads are used to securely fasten PV modules. 2 threads for module fastening and 1 thread for optional installation of cable ducts or wind deflectors on the back are already cast into the concrete base.

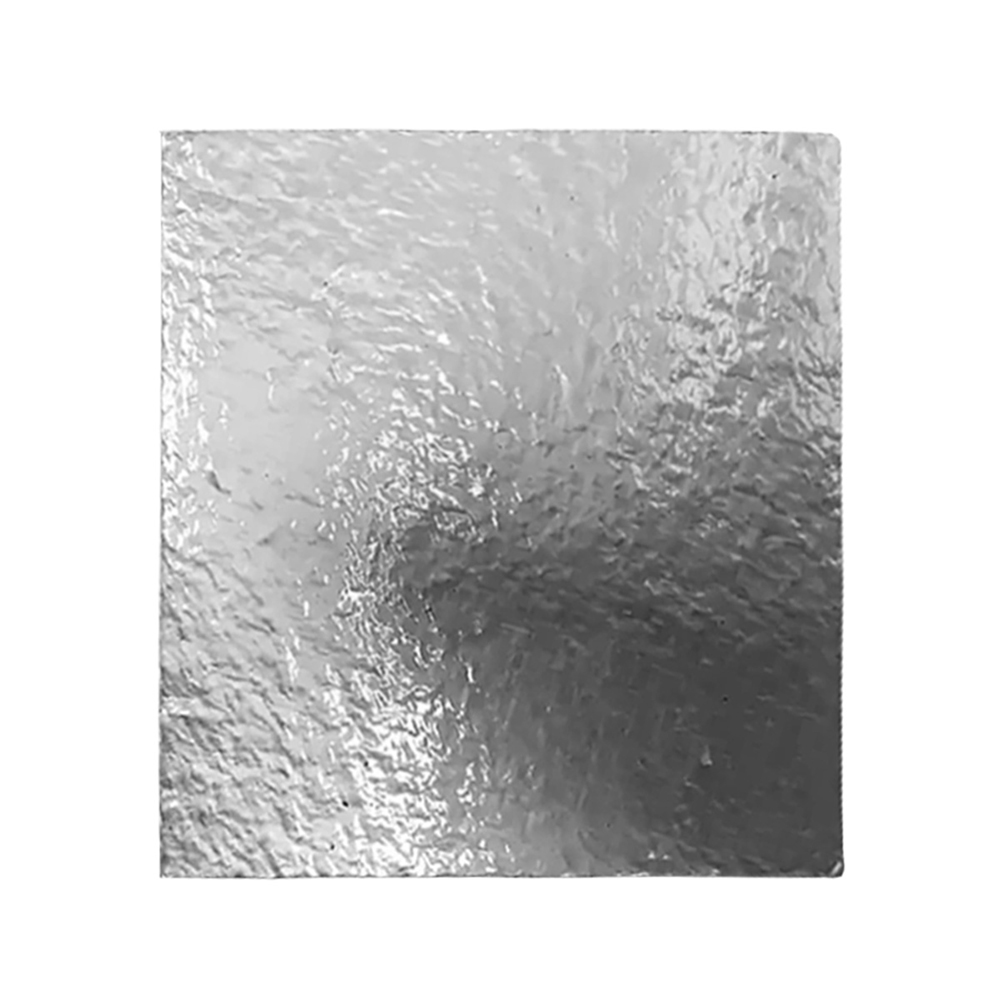

Wattstone building protection mats
The building protection mats from Wattstone serve as a safe protection aid for all building protection applications, as well as for all classic applications on flat roofs and buildings. The mats, which are supplied in a set of 4, are ideal as a base for Wattstone concrete supports. They are easy to lay, can be walked on immediately and are extremely durable and highly resilient.
Protection for roofs and floors
- Protects flat roofs, roof cladding and buildings
- Support for wood and concrete foundations
- For underlayment and vibration decoupling
- Recognized protective layer according to din 18195, part 10
Format, color and material
- Format: 6 x 150 x 150 mm
- Color: Black or aluminum-laminated (underside laminated with aluminum foil)
- Material: PUR-bonded rubber granules
