Votronic 1256 LCD voltmeter s for sR u. mpp charge controller
Shipped in 1-3 days
lcd voltmeter s

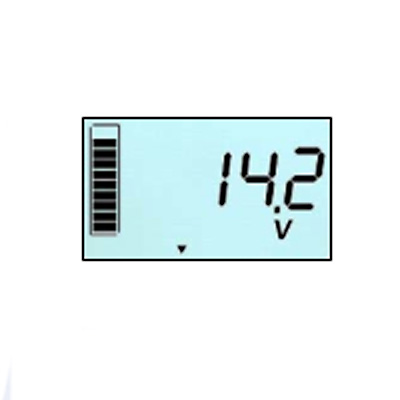

This digital voltmeter displays the voltage of the on-board battery and the starter battery. The voltages are displayed as exact numerical values.
The additional bar display works in the range of 10.5 to 15 volts and thus displays the most interesting range of battery voltage from deep discharge to maximum charging voltage clearly and at a glance. When the device is installed, it is set once to 12v or 24v operation for this function. With 24v operation, the range then corresponds to 21.0 to 30.0 volts. A mixed operation of e.g. 24v starter circuit and 12v supply circuit is also possible, as this setting is made separately for the starter and on-board battery. The connection is made by screw terminals on the back of the device. In line with the votronic module system, the lcd voltmeter s fits in with the other display modules both visually and mechanically (uniform height 85 mm), and the low installation depth of only 22 mm allows it to be mounted in almost any position. If required, the display is backlit in white (switchable) and is very easy to read even from greater distances and in all lighting conditions.
Scope of delivery:
1 pc. lcd voltmeter s (display)
4 pcs. mounting screws
1 st. instruction manual
1 st. drilling template
