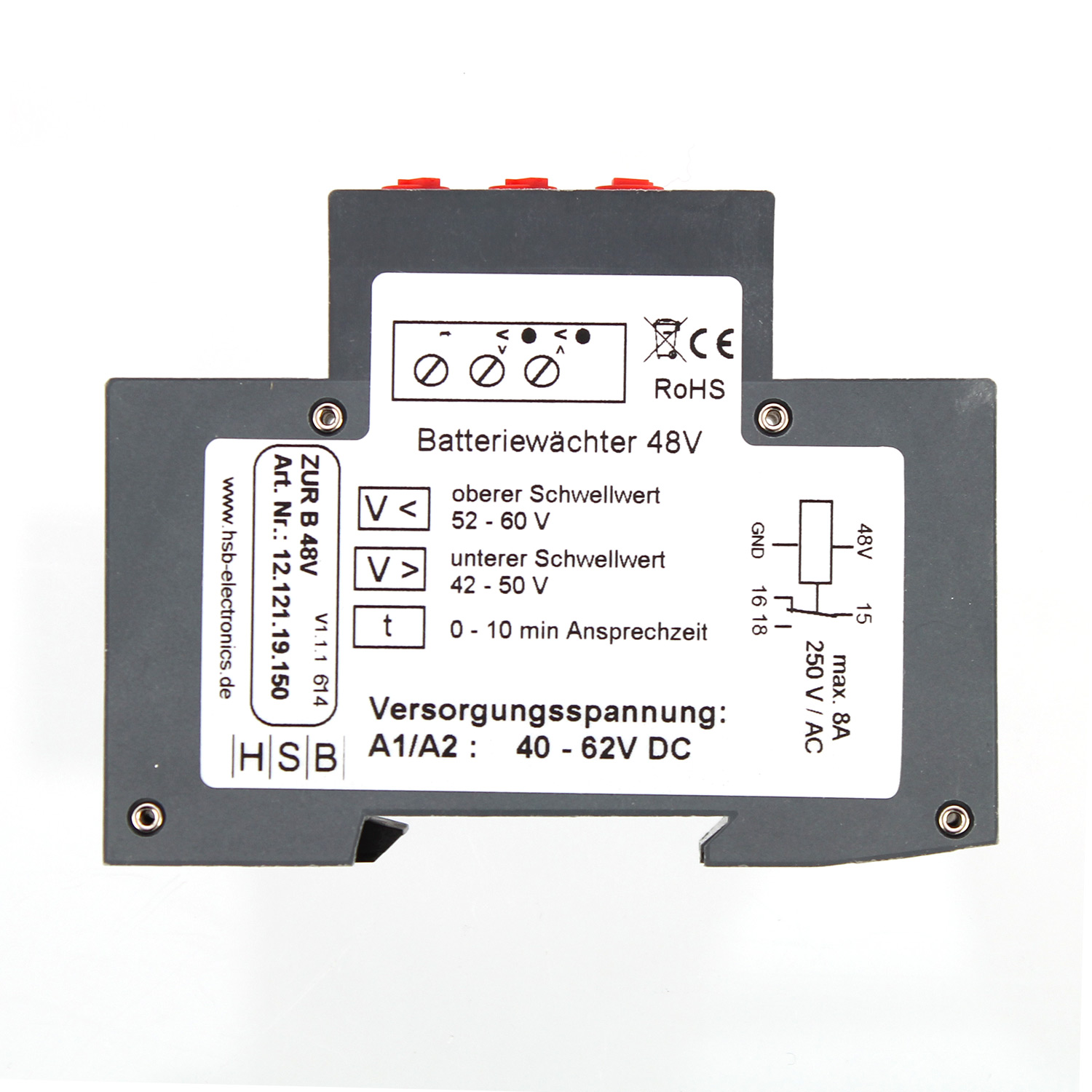

Voltage Monitoring 48V
Product number:
8-04-002857
8-04-002857
4.75
4
Shipped in 1-3 days
Product number:
8-04-002857
The voltage measurement relais monitors the direct current at binding post A1 and A2.
Application:
Protection from deep discharge and overload for AGM, GEL and lead acid batteries. The relais starts working when the measured voltage sinks under a pre-defined value V< (battery is discharged) and the programmed deceleration time of 0-10min has run out. This is displayed by a yellow led warning light.
The relais switches back to stand-by mode when the monitored voltage exceeds the pre-defined value V> (end-of-charge voltage) Supply voltage: 40 - 62vdc
Power consumption: 0,8 Watt
Operation mode: continuous mode
Measurement accuracy: 2% over temperature and voltage range
Repeating accuracy: +/-2% Measurement range:
Undervoltage: 42 - 50V
Overvoltage: 52 - 60V
Hysteresis: 1V
Protection from deep discharge and overload for AGM, GEL and lead acid batteries. The relais starts working when the measured voltage sinks under a pre-defined value V< (battery is discharged) and the programmed deceleration time of 0-10min has run out. This is displayed by a yellow led warning light.
The relais switches back to stand-by mode when the monitored voltage exceeds the pre-defined value V> (end-of-charge voltage) Supply voltage: 40 - 62vdc
Power consumption: 0,8 Watt
Operation mode: continuous mode
Measurement accuracy: 2% over temperature and voltage range
Repeating accuracy: +/-2% Measurement range:
Undervoltage: 42 - 50V
Overvoltage: 52 - 60V
Hysteresis: 1V
Contact:
Number of changers: 1
Contact material: AgSnO2
max. switching voltage: 250V AC
max. switching current: 8A
max. switching power: 2000VA
max. switch-on current: 30A
Spannungsueberwachung_Anleitung.pdf
Download
Manufacturer:
Westech
Measuring range:
Overvoltage: 52-60V
Own consumption:
0,8W
Pollution level:
2 (250V)
Product Type:
Battery monitor
Weight:
77 g
8-04-002857
