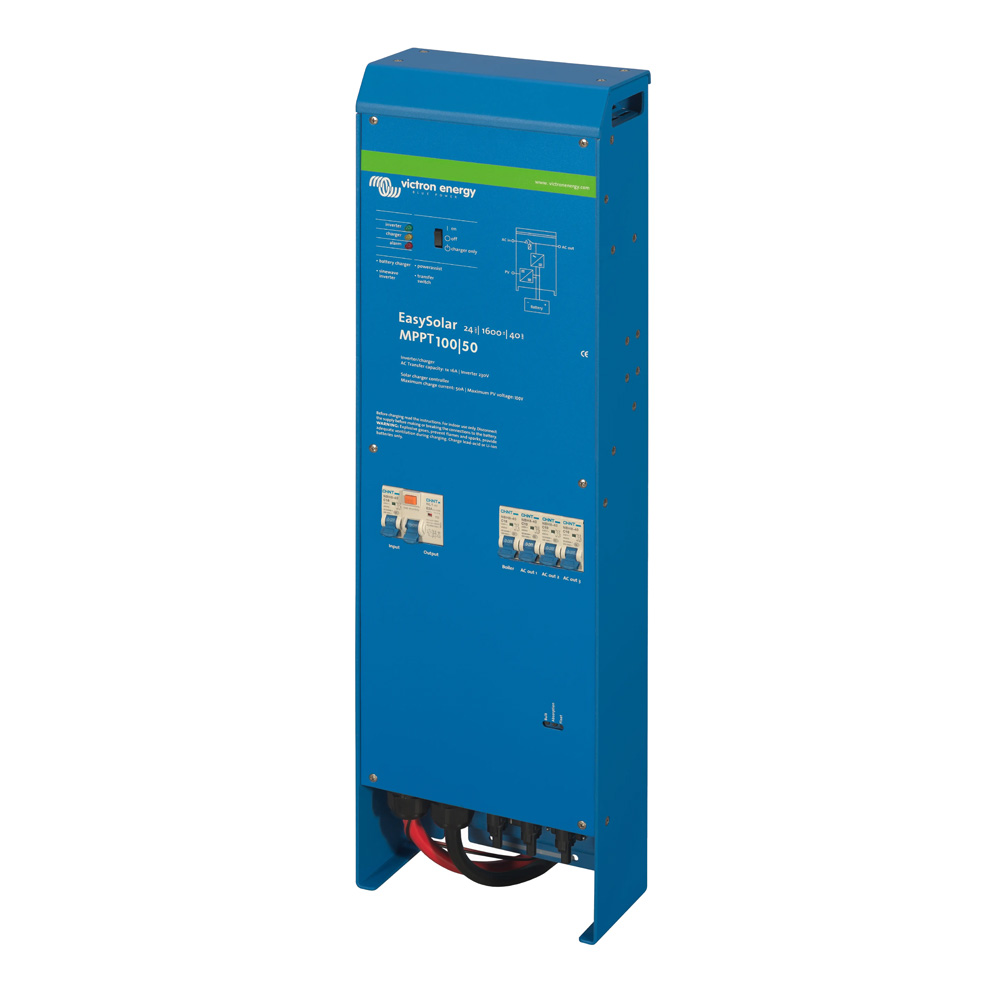

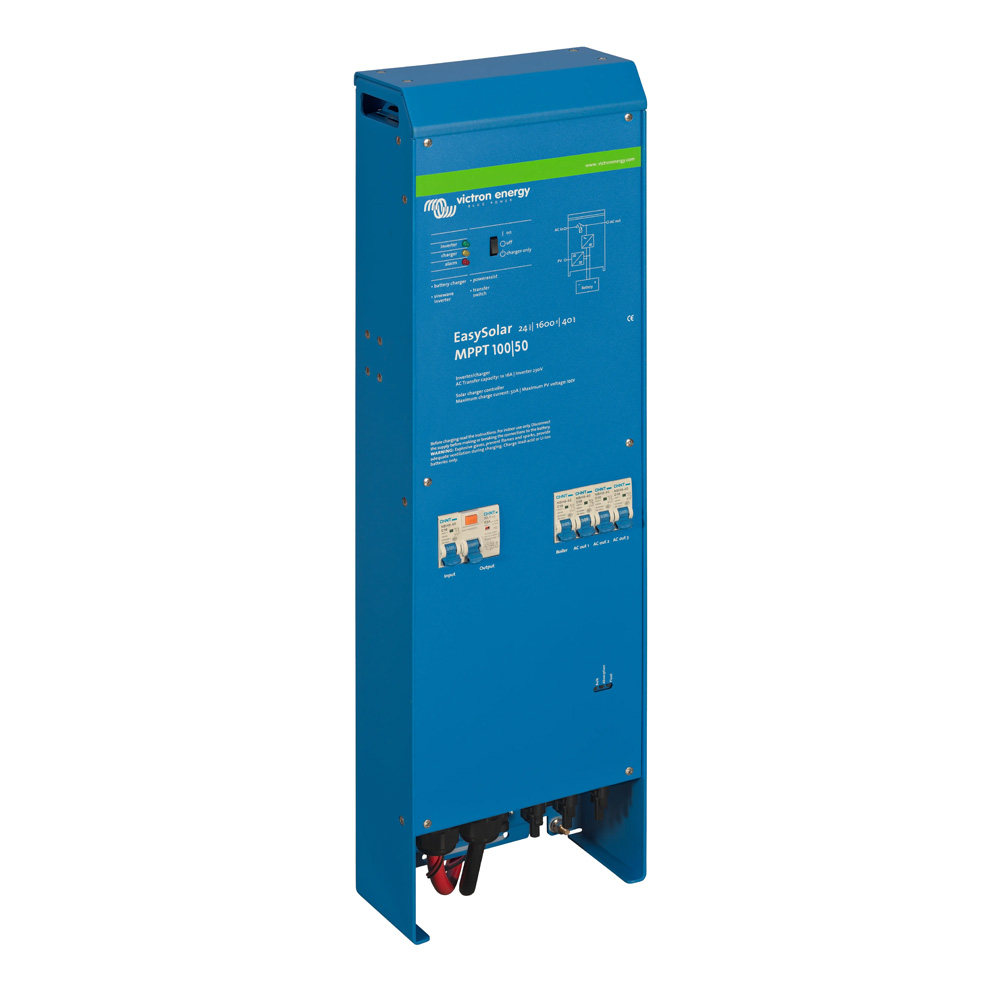

Victron EasySolar 24/1600/40-16 24V 230V MPPT All-in-One Complete Solution

The Victron Energy EasySolar 24/1600/40-16 MPPT 100/50 is a high-end stand-alone solar solution that combines four key components of a high-quality solar system in one compact device: the MPPT SmartSolar 100/50, the MultiPlus 24/1600/40 inverter/battery charger combination, an integrated AC power distribution with residual current circuit breaker, and two 16A and two 10A fuses for a total of four separate circuits. Installation is particularly easy, as only minimal cabling is required – saving time and costs during assembly.

Advantages of the all-in-one complete solution

• Complete solution with integrated MPPT charge controller, inverter/charger, AC distribution, and fuse system
• Quick and easy installation thanks to minimal cabling
• High-quality 230V sine wave voltage with stable 50Hz frequency
• Ideal for grid-connected, off-grid, and mobile applications (e.g., motorhomes, boats)
• PowerAssist & PowerControl functions for intelligent power usage
• Extensive communication options via VE.Bus

MPPT charge controller SmartSolar 100/50

The Victron MPPT 100/50 (MPN SCC020050200) is part of the SmartSolar family and offers ultra-fast power tracking to maximize solar yield. Especially in changing light conditions, the MPPT controller increases energy yield by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers. It also features innovative technologies such as the VE.Direct communication port.

MultiPlus 24/1600/40 – Inverter & battery charger

The MultiPlus C 24/1600/40 (MPN CMP121620000) combines a 24V/230V sine wave inverter with a powerful 40A battery charger. It offers a continuous power output of 1300W and peak currents of up to 3000W. In addition, the device has a second 4A output for trickle charging the starter battery – ideal for mobile use. Thanks to pure sine wave voltage, sensitive devices can be operated without any problems.

Mains transfer switch & AC distribution

An integrated 16A mains transfer switch ensures maximum flexibility in mains and off-grid operation. The EasySolar can be used both as a UPS solution and in grid-connected self-consumption systems that only draw mains power when needed. The built-in AC distribution includes a 30 mA/16 A residual current circuit breaker and four outputs, protected by two 10 A and two 16 A fuses. One 16 A output is grid-dependent and is only activated when AC power is available.

Technical features

• 1300 W continuous power, 3000 W peak power, 24 V battery voltage
• Inverter with transfer switch and 40 A battery charger
• Pure 230 V sine wave voltage, 50 Hz frequency
• VE.Bus communication port for system integration, configuration, and monitoring
• PowerControl & PowerAssist functions for intelligent power control
• UPS and grid-connected self-consumption function
• Compatible with Victron control and display panels
• Programmable relay & integrated battery temperature sensor
• Multi-stage, adaptive charging algorithm with temperature compensation
• PV connection with up to 1400 W (24 V system), 100 V max. open-circuit voltage, 50 A nominal charging current
• Integrated reverse polarity protection, day/night control, and light dimmer function
• Overall efficiency: 94%
• Complete AC distribution with 2× 16A and 2× 10A fuses and RCD circuit breaker
• For all common battery types, including lithium

• 1× Victron Energy EasySolar 24/1600/40-16 MPPT 100/50 (MPN CEP241621010)
• 1× user manual (German, English, Spanish, French, Dutch)
