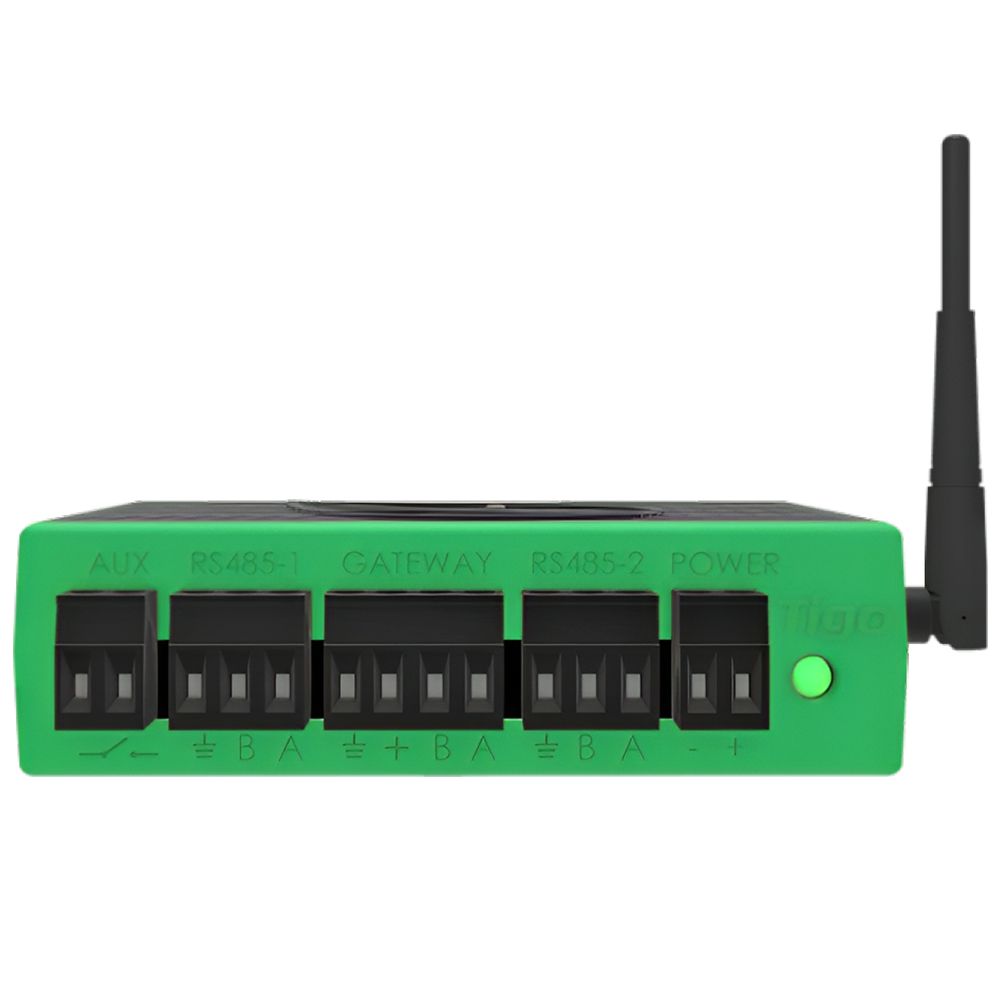

Tigo CCA data logger cloud connect advanced kit, tap (din rail)

The Tigo Cloud Connect Advanced (cca) is a robust data logging device and is one of the most compact solar data loggers, giving you multiple insights into the performance of your solar panels. It acts as a central data hub for Tigo's o, s and M products and enables seamless integration of inverters, battery systems, building meters and many more. Both current and historical data is available on the Tigo Energy Intelligence platform. The cca can be purchased either as a retrofit option or as an integral part of inverters and is supported by all leading manufacturers of string inverters and solar modules worldwide. This makes it an indispensable control center for optional power monitoring and management of your solar system.

Insights into the cca:

• Monitoring at module level via the Tigo cloud platform
• Combination option with the tap
• Each tap supports up to 300 ts4 up to 35m distance
• Collects data from up to 900 ts4 via up to 7 taps
• Connects to wired and wireless networks
• Multifunctional LED status indicator
• Can be installed indoors and outdoors
• For use with ts4-A-O
• WLAN or mobile radio connection option (can be integrated)
• Cost-effective thanks to modern technologies

The combination and functionality

1. The ts4-A-O is connected to each module
2. The Cloud Connect Advanced (cca) is the data center for ts4 modules and other devices such as inverters, batteries, etc. It connects to the tap via an RS485 cable, which communicates wirelessly with the ts4 modules.
3. All module-level data and all third-party data connected to the cca can be monitored in Tigo's Energy Intelligence monitoring platform.

The combination of these 3 components is a UL1741 certified photovoltaic rapid shutdown system (pvrss) that operates within a rapid shutdown time of 30 seconds. The cca data logger is powered by the same AC circuit as the rapid shutdown exciter (rsi). It sends a keep-alive signal to the ts4 via a wired connection to a tap and a wireless connection between the tap and the ts4 modules.

Technical data:

• Input voltage range: 10-25v DC
• Input voltage range: 100-240v AC
• Power consumption (up to 7 taps): 3-7W
• Dimensions: 115.5 x 71.5 x 31 mm
• Weight: 126 g
• Operating temperature range: -20°C - +70°C
• Protection class: IP68

Scope of delivery:

1x Tigo Cloud Connect Advanced (cca) data logger
