SolaX T-BAT 14.75kWh LiFePO4 high-voltage battery system incl. BMS
Soon available again
Similar Products
Shipped in 2-5 days
Shipped in 2-5 days
Soon available again
Soon available again
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
Soon available again
Soon available again
Soon available again
Soon available again
The T-BAT battery system from Solax (MPN: 024826) is a flexible energy storage solution that adapts perfectly to your individual needs. With a usable capacity ranging from 7.37 kWh to 47.92 kWh, this modular high-voltage battery system offers a flexible and efficient storage solution for residential and commercial photovoltaic systems. It delivers maximum operational reliability and easy maintenance thanks to long-lasting LiFePO₄ cells, integrated battery heating, and intelligent battery management. The integrated heating technology ensures reliable operation even at low temperatures. The intelligent battery management system (BMS) gives you full control over the state of charge, performance, and operating parameters of your storage system, including remote maintenance and automatic software updates.
The SolaX T-BAT-SYS-HV storage kit includes:
- 2–13 SolaX T-BAT-SYS-HV-S3.6 LiFePO4 battery modules
- 1x SolaX TBMS-MCS0800E BMS
- Depending on selection: SolaX T-BAT Series box

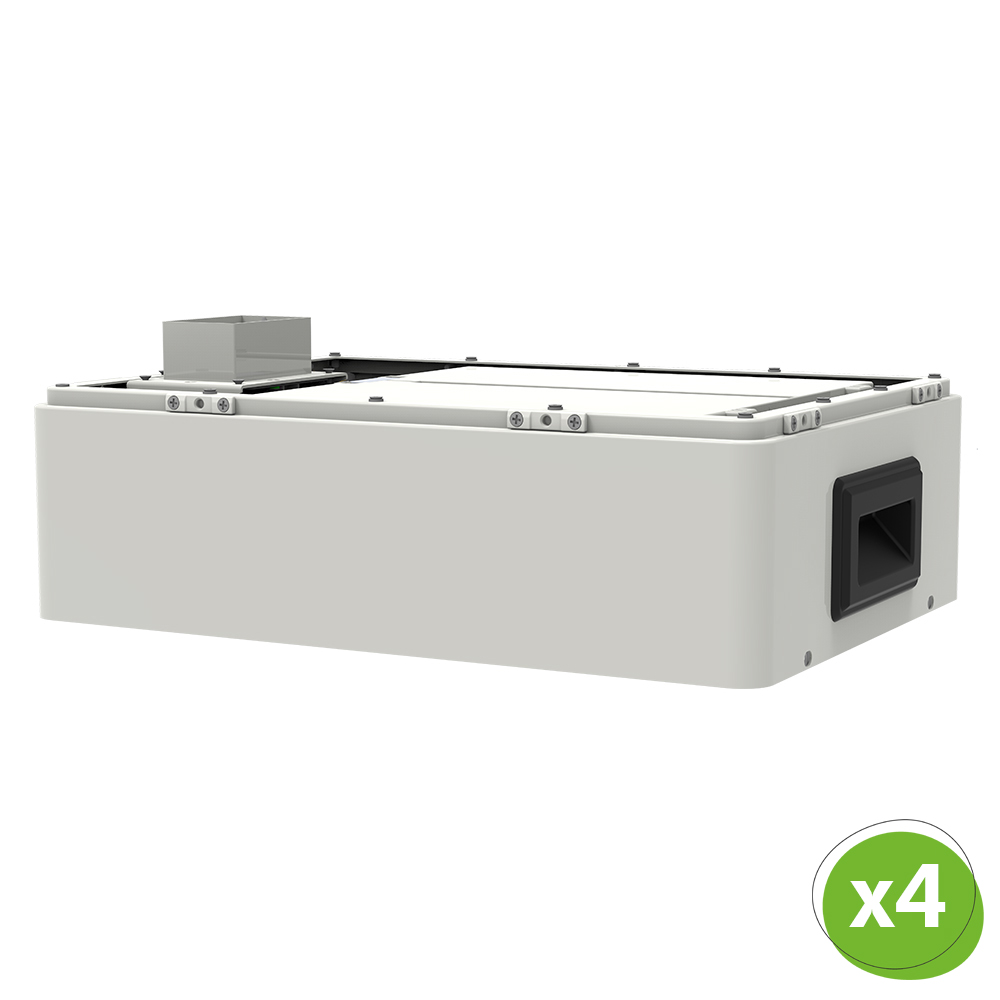

SolaX T-BAT-SYS-HV-S3.6 battery module
As part of this scalable battery system, it effectively stores excess energy from your solar system and makes it available again as needed. Thanks to modern lithium iron phosphate technology, a robust battery management system (BMS), IP65 protection, and intelligent battery heating, the system operates safely, durably, and reliably—even at low temperatures.
- Stackable plug-and-play design
- Intelligent BMS with remote monitoring
- Integrated soft-start function
Technical Specifications
- Module capacity: 3.6 kWh
- Nominal voltage: 102.4 V (per module)
- Cycle life: > 6,000 cycles
- Protection class: IP65
- Operating temperature: -20 °C to +55 °C (heating for lower temperatures)
- Weight: approx. 34 kg
- Dimensions (L × W × H): 510 × 365 × 157 mm
SolaX TBMS-MCS0800E BMS
The BMS reliably monitors and controls the battery modules, ensures maximum safety, and guarantees seamless communication with the hybrid inverter. The system offers high efficiency, easy operation, and a long service life for the storage solution.
- Maximum safety through protection against overcharging, deep discharge, and overheating
- Intelligent battery management to optimize charge and discharge cycles
- Easy operation with LED status and SoC indicators for a clear overview
Technical Specifications
- Installation location: Indoor / Outdoor
- Communication: RS485
- Weight: 9.3 kg
- Dimensions: 730 x 165 x 150 mm
