Solar cable H1Z2Z2-K 1X6 WH/BK single core EN50618 IEC60228
Shipped in 1-3 days
Our H1Z2Z2-K 1X6 WH/BK solar cable from Offgridtec (MPN 1023760) is the perfect choice for efficient and reliable cabling for your photovoltaic system. This high-quality cable has a conductor cross-section of 6mm², is TÜV-certified, and meets all requirements of the EN 50618 and IEC60228 standards. H1Z2Z2-K cables are characterized by their high UV resistance, ozone resistance, and excellent weather resistance, making them perfect for permanent outdoor use. Flexible and easy to install, the solar cable ensures safe and clear cabling for your PV system.
As this item is sold by the meter, each item corresponds to one meter. For example, if you purchase 10x this item, you will receive one continuous piece with a length of 10 meters.
Important product features:
- Single core
- Outer sheath color: Black
- TÜV certified
- Standards: EN 50618 and IEC60228
- For grounded and ungrounded systems

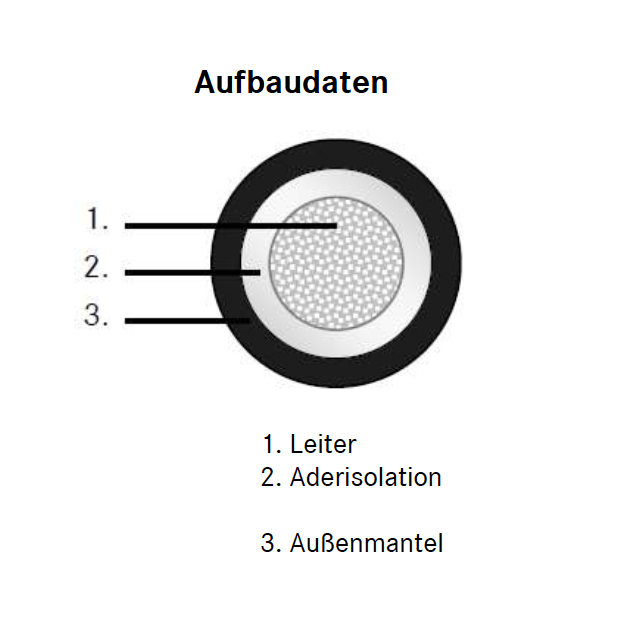

Conductor structure
- Conductor: Fine-stranded stranded wire made of tinned copper wires, in accordance with IEC 60228, Class 5
- Conductor insulation: Electron beam cross-linked polyolefin copolymer
- Outer sheath Electron beam cross-linked polyolefin copolymer
IEC60228 Resistance
- Weather/UV resistant
- Ozone resistant
- Halogen-free
- Fire behavior flame retardant
- Acid and alkali resistant
Technical data
- Maximum voltage: 1.5kV DC
- Number of cores: 1 core
- Conductor shape: fine-stranded
- Conductor cross-section: 6mm²
- Conductor material: Copper (Cu) - Tin-plated surface
- Cable type: H1Z2Z2-K
- Operating temperature range: -40°C to +90°C
Scope of delivery
1x 1m solar cable H1Z2Z2-K 1X6 WH/BK
