Offgridtec® basicPremium-XL 150W solar system 12V/24V complete system

The basicPremium-XL 150W solar system 12V 24V from Offgridtec (MPN 4-01-010970) is based on a high-quality, monocrystalline 150 Wp solar module and the convenient PWM-12/24-30A charge controller with LCD display. The basicPremium series also comes with a matching 8m solar connection cable (solar module to charge controller) and 1.5m battery connection cable – both from the Pro-Connect series. The average daily yield from March to October is around 600 Wh*. The solar output of the system can also be conveniently increased later by adding several modules if your requirements increase. The system offers all the basic components needed to charge your battery with self-generated solar power. This combination makes it the perfect basis for a wide range of possible solar applications.

High-quality basic set for a wide range of applications

Offgridtec solar sets from the basicPremium series consist of the basic components required for any self-sufficient solar power system, regardless of whether the system is to be used on a garden shed, garage, or in a mobile application. We consistently focus on high quality for all components delivered to ensure reliability and a long service life for the system. Our 150W solar module is equipped with the best monocrystalline cells and is produced and tested using the latest manufacturing technology. The other components in the set also meet this quality standard: The plug-and-play connection cables "made in Germany" are designed to keep installation costs as low as possible without compromising connection quality. The PWM-12/24-30A Pro charge controller, with its convenient display and state-of-the-art charging algorithms, ensures that the system is easy to use and that your batteries are charged perfectly. The basicPremium family is a mature product that has proven itself thousands of times in practice and offers the ideal starting point for a wide variety of applications

Applications Solar system

• 12V or 24V DC power supply in garden sheds, allotments, and similar locations
• self-sufficient systems for outdoor lighting applications
• self-sufficient surveillance and communication systems or weather stations
• charging smartphones, tablets, or other devices with 12V/5V DC power supply

Performance parameters at a glance

• average daily yield: 600 Wh
• Expandability of solar power when using the same panel to max. 450 Wp (at 24V = 750 Wp)
• Available power outputs: 5V DC and 12V DC at the charge controller (230V only with optional voltage converter)

Components of the basicPremium-XL 150W solar system 12V 24V

• 1 x Offgridtec monocrystalline 150W V2 solarmodule
  • Nominal power: 150 Wp, part number: 3-01-018395
  • Operating voltage (Vmp) 23.9 V, operating current (Imp) 6.28A
  • equipped with highly efficient solar cells
  • minimized power loss in shaded conditions thanks to integrated bypass diode
  • solid: frame made of anodized aluminum + specially hardened ESG solar glass
  • MC4 connectors, dimensions (WxLxH): 1350 x 590 x 35 mm, weight: 8.9 kg

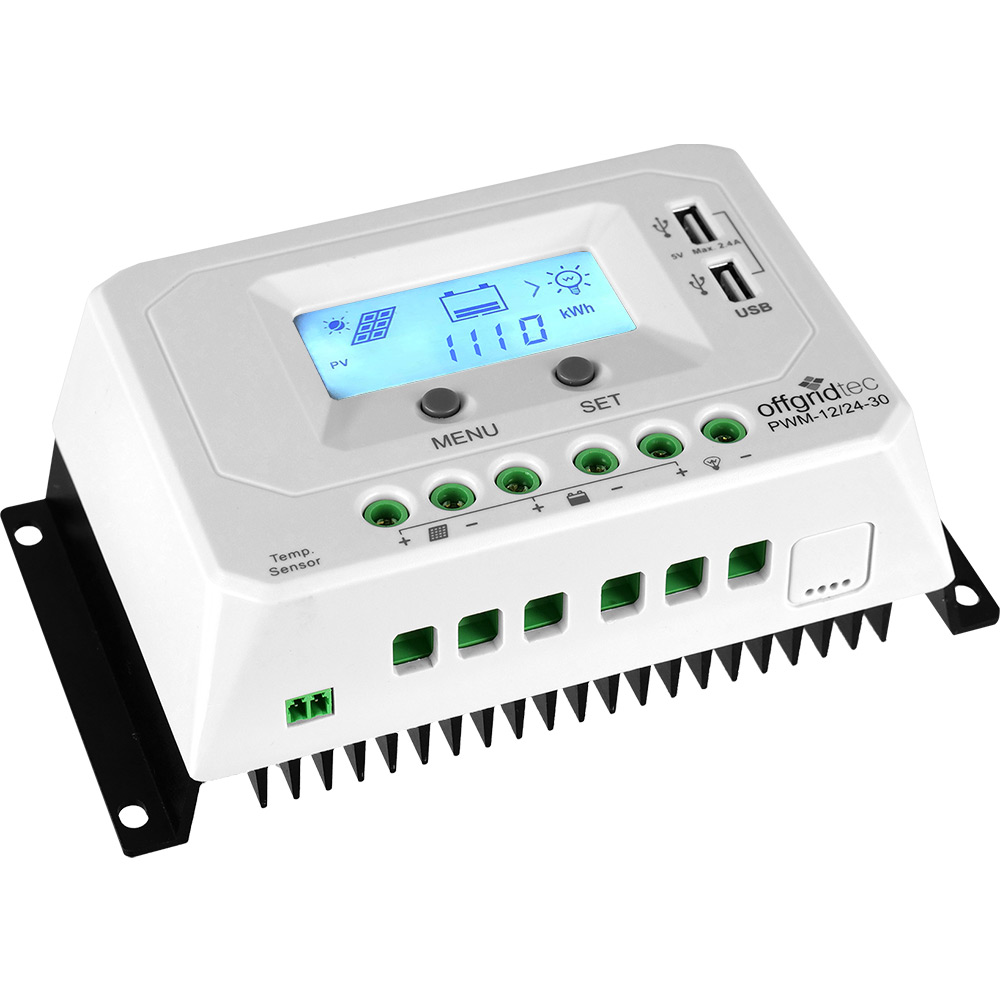

• 1 x PWM-12/24-30 Pro solar controller12V/24V
  • max. charging current 30 A, max. PV power with 12V / 24V system: 390 W / 780 W
  • modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies)
  • 3 battery types can be set: AGM, GEL, and liquid lead acid
  • intuitive operation via 2 buttons directly on the device
  • large LCD display with numerous display options, including kWh meter
  • 2 USB ports with a maximum output of 2.4A
  • Load output with numerous configuration options, e.g., for lighting control
  • Temperature-compensated battery charging (optional temperature sensor required)
• 1x 8m 2x6mm² solar connection cable controller/solarmodule
  • TWIN cable, plug & play - ready for immediate use
  • MC4 connectors on the solar module side, ferrules on the charge controller side
  • highest quality solar cable: TWIN cable
  • Wire cross-section: 2x6mm², length: 8m
• 1x Offgridtec 1.5m 6mm² battery cable M8 with flat fuse holder, 30A fuse, and pole terminals
  • Plug & Play - ready for immediate use
  • Wire cross-section: 2x6mm², length: 1.5m
  • includes flat fuse holder with built-in 30 A ATO fuse
  • Wire end ferrules on the charge controller side, M8 ring cable lugs on the battery side
  • includes battery pole clamps for connection to round pole terminals

Flexible and very easy to install

The system is very easy to install, even for people who have little experience with solar technology. All cables are delivered plug & play, i.e., ready to connect. You just need to connect the components and you can start producing electricity.

Expandable, customizable

Like every Offgridtec system, the basicPremium-S can also be individually adapted and modified to your requirements. Our technical sales team looks forward to your inquiry. Please contact customer service for any costs that may be incurred.

Scope of delivery:

1x Offgridtec 4-01-010970 basicPremium-XL 150W 12V 24V solar system
1x operating instructions
including all components listed above
