Offgridtec solar system 900W incl. 1kW Fothermo heating element for hot water boiler

The Offgridtec solar system with integrated Fothermo heating element (MPN: 024911) offers a sophisticated complete solution for independent hot water heating using solar energy. The system combines powerful, bifacial Luxen Solar 450W PV modules with a 1kW heating element that can be easily installed in standard hot water boilers. Depending on your needs, the set is available with 2, 3, or 4 modules and includes all connection components for quick and easy installation. The solar heating rod was specifically designed for small households with 1 to 4 people and thus ensures a noticeable reduction in hot water costs. The system optimally supplements existing heating systems, whether gas, oil, pellets, or heat pumps, for hot water production.

Why this set is ideal for your hot water supply:

• 100% self-sufficient hot water production: Complete independence from the power grid thanks to direct solar heat.
• Highly efficient modules: Luxen Solar 450W bifacial full black modules with modern TopCon technology for maximum power yield – even in diffuse light.
• Easy retrofitting: The Fothermo solar heating element fits into many standard boilers with a 1½-inch connection and makes existing systems solar-ready.
• Plug & play: Quick installation including all necessary connection cables and connectors, no electrician required.
• Flexibly adaptable: Choice of 2, 3, or 4 modules depending on hot water requirements.
• Practical example: With three photovoltaic modules, a 2-person household can cover almost its entire hot water needs with solar energy during the summer months. Over the course of the year, the modules supply an average of approx. 75% of the energy required for hot water production.

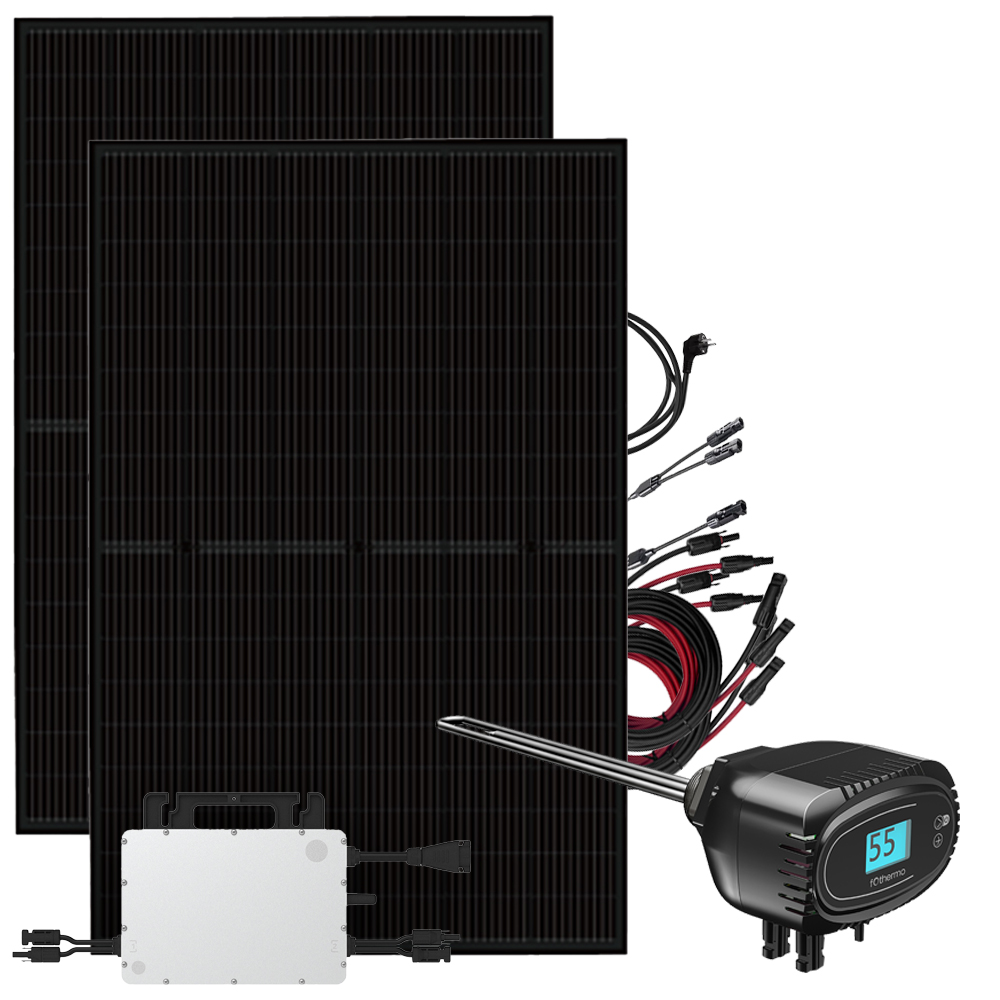

Components of the Offgridtec solar system with Fothermo heating rod

• 2x / 3x / 4x Luxen Solar 450W bifacial solar module TopCon Luxneri Series N5 Full Black (depending on selection)
• 1x Fothermo photovoltaic 1kW heating rod in boiler and hot water tank
• 2x / 3x / 4x MC4 to MC4 6mm² 2m red/black connection cable (depending on selection)
• Offgridtec branch socket connectors (depending on selection)
  • 1x Offgridtec 2-way branch socket Y-connector incl. cable extension (pair)
  • 1x Offgridtec 3-way branch socket T-connector incl. cable extension (pair)
  • 1x Offgridtec 4-way branch socket T-connector incl. cable extension (pair)

Self-sufficient hot water supply with the Offgridtec solar system

The set includes all the components you need to supply your existing hot water boiler with solar energy. The simple plug-and-play installation is particularly practical and can be carried out without the need for an electrician. The solar heating rod is a simple and inexpensive solution to support your heating system. You screw it directly into your existing hot water boiler, effectively lowering your energy costs. At the same time, it reduces the load on your heating system or heat pump. The heating rod is ideal for storage tanks up to 500 liters. It has its own temperature sensor and a freely adjustable maximum temperature of 65 °C (or 85 °C for lime-free water). If there is not enough solar energy, the temperature sensor of the heating system ensures that the water is automatically reheated.

Luxen Solar 450W Bifacial Full Black Solar Modules with TopCon Technology

The Luxen Solar modules included in the set feature state-of-the-art N-TOPCon cell technology with a bifacial design, which increases performance by absorbing light on both the front and back.

• Maximum power: 450 W per module
• Module voltage (Vmp): 30.08 V
• Module efficiency: 22.52%
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 24 kg
• Protection class: IP68

Fothermo photovoltaic heating rod for hot water boilers

With the 1kW solar heating rod, you can easily convert your existing hot water tank to PV. Simply screw the photovoltaic heating rod into the standard 1.5" thread. From now on, you can use solar energy to heat your water and no longer have to rely on expensive gas or oil heaters. It offers you continuously adjustable power control from 0 to 1000W. With the practical surplus function, you can transfer excess electricity to a second heating rod or feed it into your own home power grid with a small micro inverter.

• Stepless heating power: 0 - 1000 W
• Max. connected power: 3000 W
• Recommended connected PV power: 1500 - 2500 W
• Water temperature range: 5°C - 65°C
• Protection class: IP20
• Weight: 0.9 kg
• Dimensions: 468 x 140 x 154 mm

Display of performance data:

• Voltage - Input voltage of the solar modules
• Power In - Input power of the modules
• Power Out - Output power
• Heating Energy - Energy used for hot water production
• Output Energy - total energy output
• Maximum temperature
