Offgridtec mPremium+ L 100W 12V MPPT caravan solar system

The Offgridtec mPremium+ l-100w 12v (mpn 4-01-012415) is a premium solar kit for caravans and motor homes. The expected daily output (April to October) is 400Wh/day on average (max 800 Wh on sunny days in Germany) and can be installed as a 12v system. Thanks to the included mppt solar charge controller, almost all common battery types such as agm, gel or modern lithium can be charged easily and mobile according to their design. The system can be conveniently analyzed and even configured from a smartphone or tablet using a free app. Since the mPremium+ series is a further development of the popular mPremium series and differs only in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile.

100w caravan complete set: simple, proven, high quality

The set contains all the components you need to charge your mobile batteries. The special thing about our Solarasystems for caravans: We use an extra solid mounting system that can be easily glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class.

Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years.

scope of delivery of the mPremium+ l 100w caravan Solaranlage

• 1x Offgridtec 100w 12v - monocrystalline solar module equipped with high efficiency solar cells
• 1x Offgridtec abs cable gland 1-fold - black with waterproof PEG gland
• 1x Offgridtec ABS Mounting Spoiler 590mm black Pre-drilled incl. Stainless Steel Screws
• 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design
• 1x Offgridtec 1,5m 2x6mm 15a battery connection cable - connection cable solar charge controller to battery, 20a fuse and pole terminals
• 1x Victron Energy Smart mppt 75/15 solar charge controller with bluetooth module, load output and extensive configuration options.
• 1x Mounting adhesive set with instructions and necessary accessories for pre-treatment

All integrated system components at a glance

The Victron SmartSolar mppt 75/15

The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 20a max. charge current for charging 12v and 24v batteries of various types. Equipped with powerful charging algorithms and a bluetooth based communication interface, the 75/15 offers all the features expected from a modern high-end charge controller:

• bluetooth Smart integrated: allows setup and monitoring with a smartphone or other bluetooth enabled device.
• Ultra fast maximum power point tracking (mppt).
• Advanced maximum power point detection in case of partial shading.
• 15a load output.
• batterylife: intelligent battery management through load shedding.
• Automatic battery voltage detection.
• Flexible charging algorithms and much more.
• overheating protection and load reduction at high temperatures.

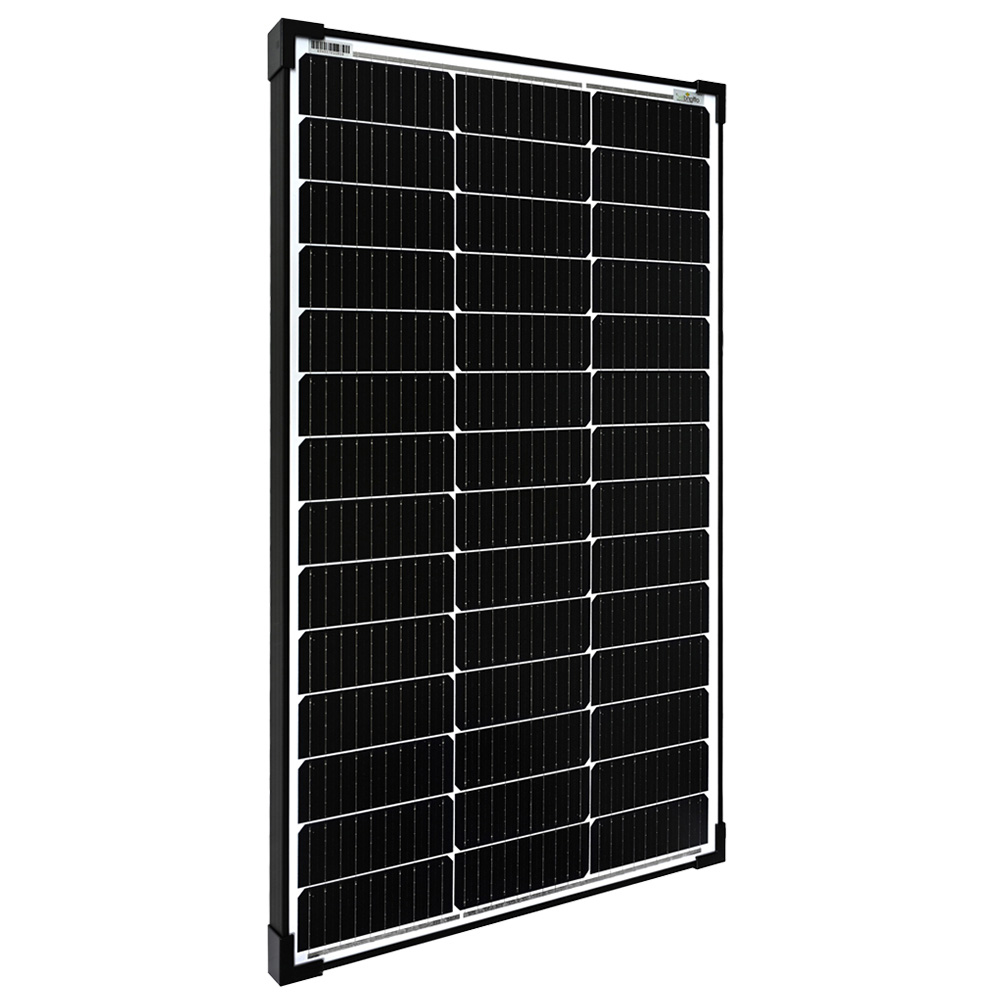

The Offgridtec 100w 12v solar panel

monocrystalline solar cells of the highest quality are used exclusively in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weather, storm, hail, etc).
The dimensions of the solar module are: 1030 x 520 x 35 mm (lxwxH).

Professional Solar Mounting System

Our ABS spoilers from Offgridtec are the ideal brackets for your solar module when it comes to achieving minimal weight with solid stability. The ABS plastic spoilers, available in black and white, provide an excellent solution for attaching solar panels to the roofs of motorhomes, campers, or caravans. Due to their elegant appearance, the spoilers, when paired with a solar module, not only offer functionality but also contribute to a well-rounded look for your motorhome. To minimize noise level and wind resistance, they have been aerodynamically shaped. The spoiler holes come pre-drilled from the factory and include matching stainless steel screws. Additionally, the product includes an installation manual for proper setup.

About the Holding Spoilers:

• ABS plastic
• Secure grip
• Aerodynamic shape
• Pre-drilled holes for easy and secure installation
• Mounting materials included

Product Features:

• Dimensions: L x W x H: 59cm x 8.9cm (of which approximately 3cm is the module contact area per spoiler) x 6.5cm
• Manufacturer: Offgridtec
• Material: ABS
• Finish: polished
• Color: white
• Weight: 0.640 kilograms

The professional cabling set

All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mc-4 connectors.

• 1x Offgridtec 8m 2x6mm h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends.
• 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round terminals.

Individual system customization possible on request

If you want a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. A short quote request with part number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service.

scope of delivery:

1x Offgridtec 4-01-012415 Offgridtec® mPremium+ l 100w 12v mppt Caravan Solaranlage
1x instruction manual
including all components listed above
