Offgridtec FSP-2 135W Ultra KIT PWM 10A foldable solar panel

The FSP 2 135W Ultra is a foldable high-end solar panel with an integrated charge controller, battery connection terminals, and three permanently integrated fold-out supports that allow you to easily set up the FSP 2 panel at a 45-degree angle anywhere. The FSP 2 Ultra is the successor to our MP-105W and is equipped with the latest SPR back-contact cells, delivering a whopping 135W of solar power when optimally aligned and in direct sunlight.

Together with its very compact dimensions when folded and low overall weight, the FSP 2 sets new standards in terms of flexibility and efficiency among mobile, foldable solar modules. The price of the new Offgridtec FSP 2 Ultra also sets standards among comparable panels and stands up to any comparison.

The basic solution for solar-powered, mobile charging of batteries up to a maximum of 200Ah:

• in the camping sector
• on expeditions
• for vehicles and boats without a fixed solar installation
• and numerous other applications in a wide variety of areas

overview of power management FSP 2 135W Ultra

Supported battery types (12V): AGM, lead acid, gel
USB output: 1A 5V directly at the charge controller
12V consumer output: 10A 12V directly on the charge controller

Technical data for foldable solar module FSP 2 135W Ultra

Module voltage (Vmp): 19.8V
Max. charging current (Imp): 6.82A
Open circuit voltage (Voc): 23.3V
Short-circuit current (Isc): 7.22A
Charge controller: Offgridtec PWM Pro 12/24-10
Supported battery types (12V): AGM, lead acid, gel
2 USB outputs: 5V max. 2.4A directly on the charge controller
12V consumer output: 10A 12V directly on the charge controller

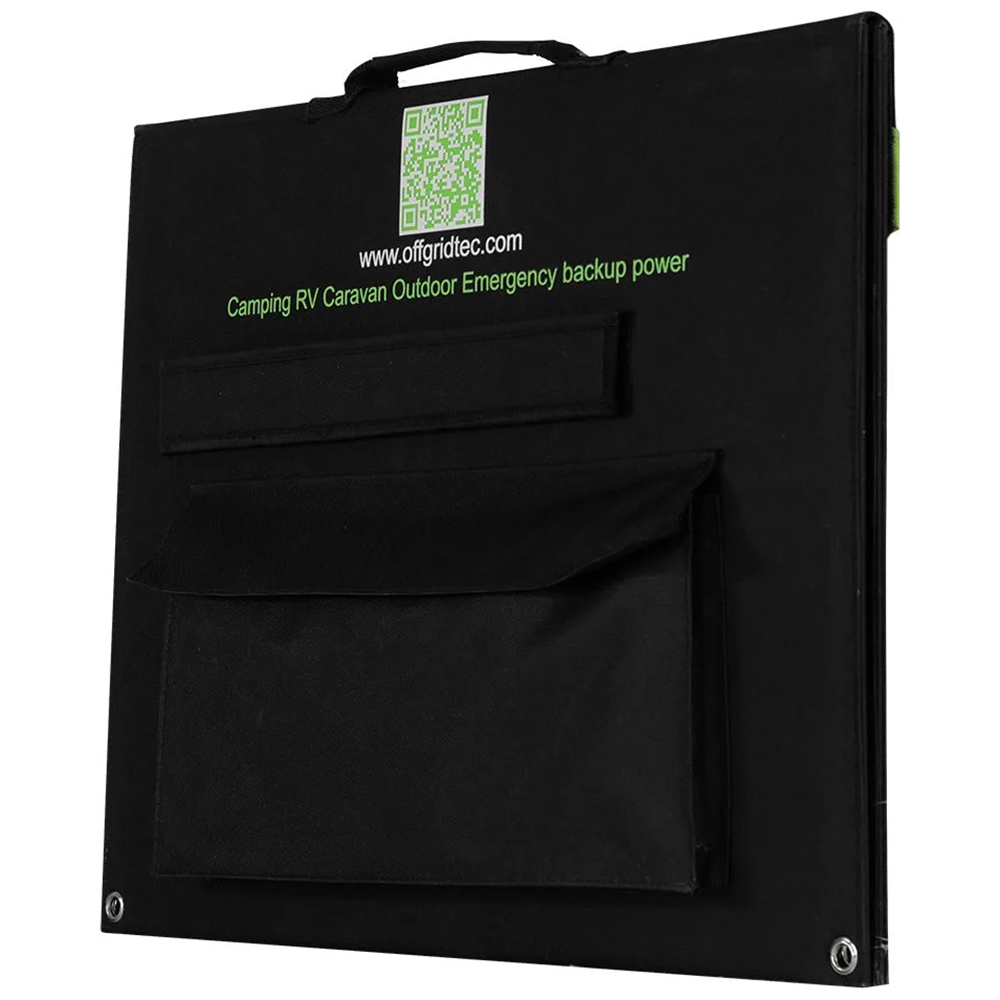

Dimensions when closed: 560 x 440 x 20 mm
Dimensions when open: 560 x 1545 x 6 mm
Weight: 4.8 kg
Cable length from module to controller: 6 m
Cable length from controller to battery: 1 m
Battery connection: Alligator clips
Nominal power: 135Wp

Technical note: The charge controller is positively grounded—this can cause problems when connecting to a system in which the ground is negatively grounded

easy to set up thanks to 3 permanently integrated feet

Three feet are permanently attached to the FSP bag, which can be easily folded out as needed to set up the panel at an angle of just under 45 degrees on the ground. This means that the module can be fully set up and ready for use within a minute.

Offgridtec PWM Pro charge controller 10A

The Offgridtec PWM 12/24-10 (MPN 1-01-010910) is a microprocessor-controlled solar charge controller with a maximum charging capacity of 10A and can charge both 12V and 24V batteries. It uses modern 3-stage PWM modulation to get the most out of your AGM, GEL, or lead-acid batteries. It is suitable for solar systems from 130W at 12V and 260W at 24V battery voltage.

Performance features PWM Pro charge controller 10A

• max. charging current 10A, for up to 130W PV power at 12V and 260W at 24V systems
• modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies)
• 3 battery types can be set: AGM, GEL, and liquid lead acid
• intuitive operation via 2 buttons directly on the device
• large LCD display with numerous display options, including kWh meter
• 2 USB ports with a maximum output of 2.4A
• Load output with numerous configuration options, e.g., for lighting control
• Temperature-compensated battery charging (optional temperature sensor required, not included)

about the FSP series

As with all Offgridtec solar module series, great importance was attached to high quality in the FSP-2 series. The FSP-2 135 works with back-contacted solar cells, as used in our SP high-performance series. These cells generate efficiencies of over 24% and are currently the best available on the market. In addition, we manufacture our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions.

Scope of delivery:

1x Offgridtec FSP-2 135W 12V
1x Offgridtec PWM Pro charge controller 12V/24V 10A USB port
1x 6m 2x6mm² module connection cable with Anderson SB50 plug
1x Ofgridtec FSP-2 connection kit
