Offgridtec® Autark Pro XL 24V 800W Solar System - 2000W AC Power 100Ah LiFePO4 Battery

Hier ist der bereitgestellte Text ins Englische übersetzt: ```html

The Offgridtec Autark Pro XL 24V is one of the larger complete systems in the Autark family, delivering an average daily yield of 3200 watt-hours from March to October. The generated electricity is stored in a 100Ah LiFePO4 battery – the high-quality charge controller with integrated display informs you about the battery's charge status while your 230V devices can be powered by the sine wave inverter. Of course, the whole system comes with a professional connection cable kit – just plug it in and get started. The system is suitable for a wide range of applications – from 24V lighting, charging laptop, mobile phone, and camera batteries and other small consumers, to 230V household appliances with a maximum continuous output of 2000W.

The Autark Pro XL 24V at a glance

• Average daily yield between March and October: approx. 3200Wh (under optimal conditions)
• MPPT charge controller with LCD display
• LiFePO4 battery with integrated BMS
• Expandable on the battery side
• Comprehensive electronic protection features, such as overload protection, over-temperature protection, under-voltage disconnection, short-circuit protection, reverse polarity, etc.
• Enables operation of 24V and 230V devices, as well as 5V USB consumers
• RS485 communication port on the inverter provides extensive configuration options via PC
• Plug & play ready-to-use system – just plug it in and get started
• Flexible installation options thanks to an 8m connection cable from module to controller
• Offgridtec brand quality
• Optional: Bluetooth monitoring of battery parameters with Victron SmartShunt (sold separately)

Application areas

The complete system offers a wide range of application possibilities. It is suitable for stationary use in mountain cabins or garden houses, where it can easily power small coolers and refrigerators continuously, as well as charge mobile phones and laptops. Furthermore, it can ideally be installed on RVs, for which we also offer suitable mounts and adhesive kits for attachment.

Parts list – what's included

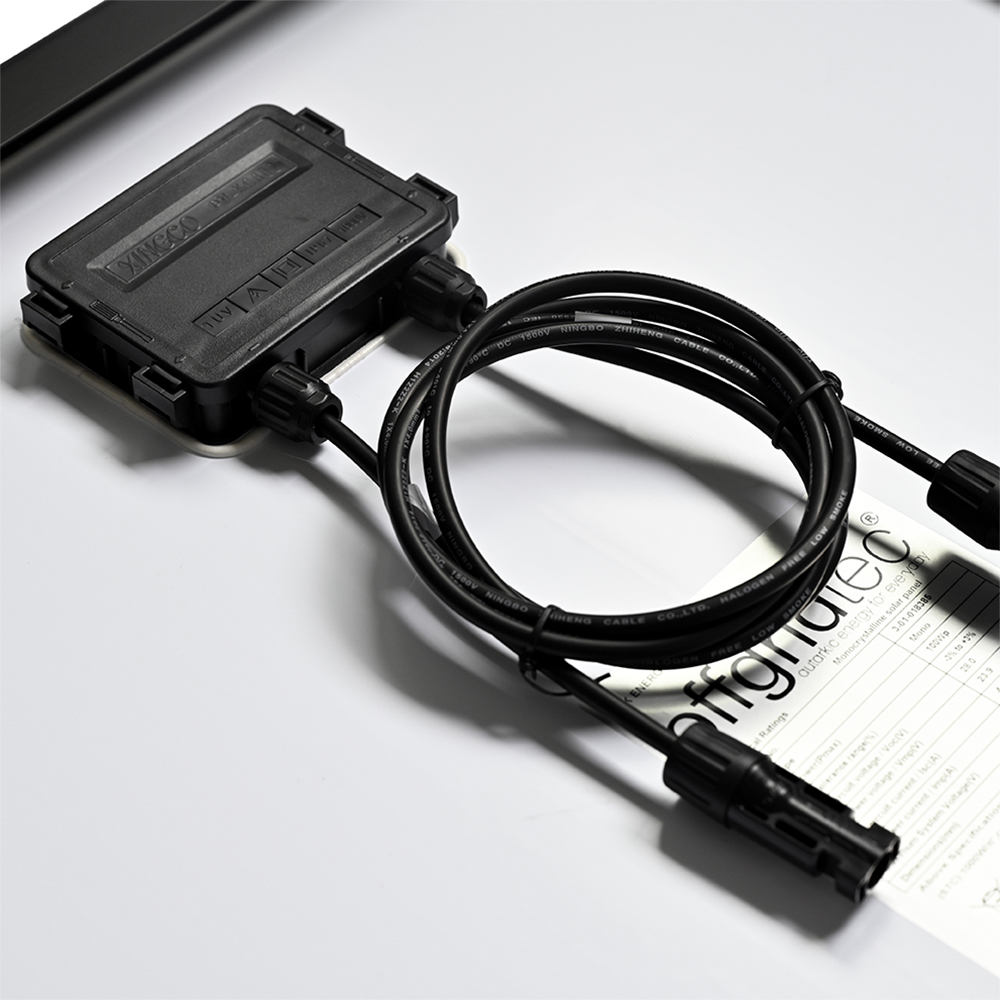

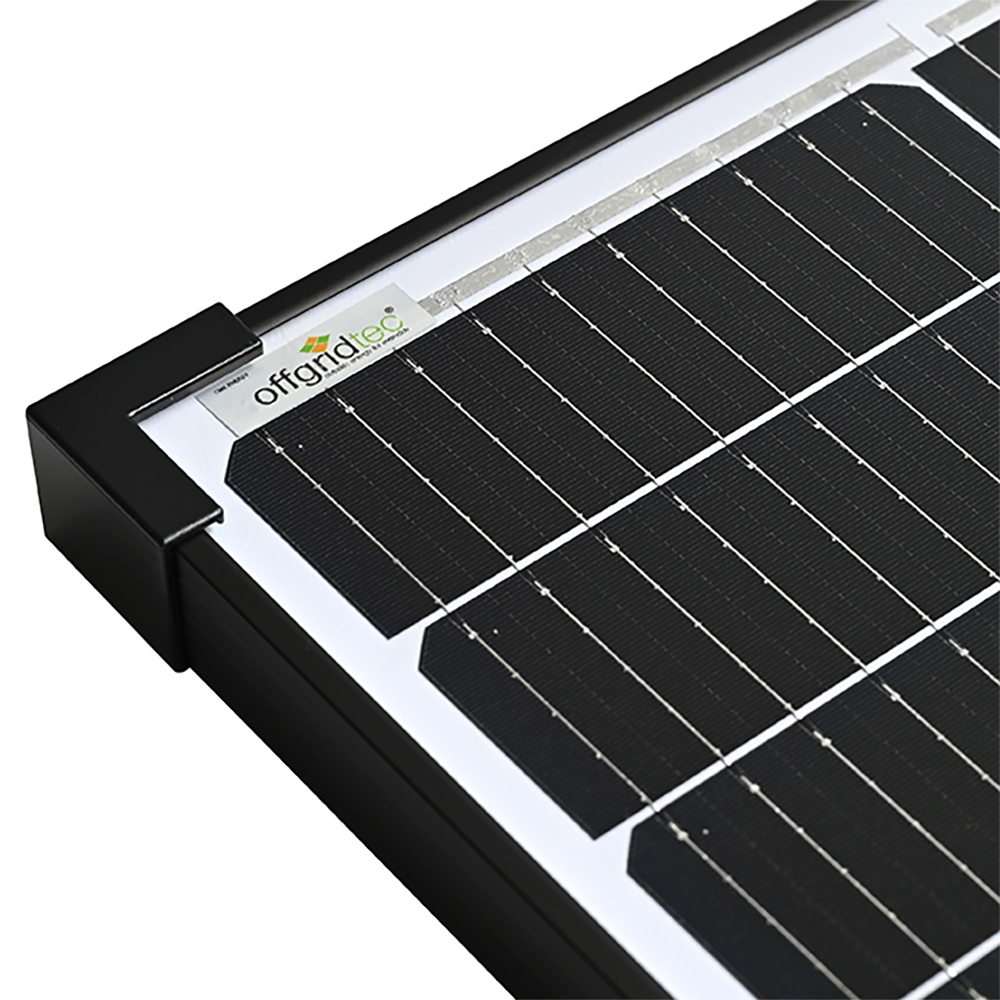

• 4x Offgridtec® MONO 200W V2 Solar Panel 30V Black Frame - 1720 x 590 x 35 mm - 22.3% cell efficiency - 11 busbars
• 1x Offgridtec 24/100 LiFePo4 100Ah 2560Wh Lithium Battery 25.6V with integrated BMS

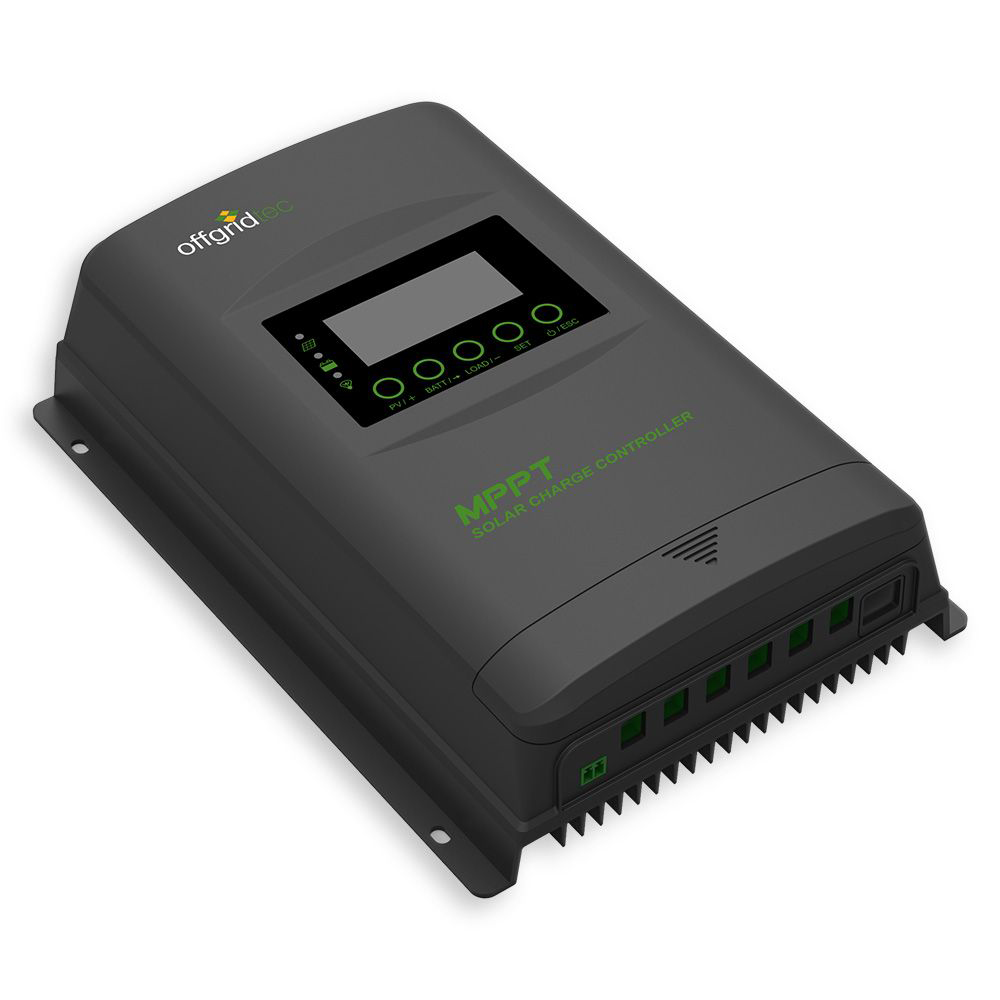

• 1x Offgridtec MPPT PRO-X 30A Charge Controller with integrated LCD display - 30A load output - full load operation without capacity reduction
• 1x Offgridtec® PSI Sine Wave Inverter RS485 including connection cable - outputs a perfect sine wave - advanced SPWM technology - provides a permanent output of 1600W and for 5 seconds a peak output of 3200W - comprehensive protection functions
• 1x Offgridtec Y-Connectors (pair) for parallel connection of the modules
• 1x 8m 6mm² Professional Connection Cable Solar Module to Solar Charge Controller with solar connector plug
• 1x Battery Connection Cable 50mm² 40cm M8 Ozone-, UV-, and temperature-resistant
• 1x 1.5m 10mm² Battery Cable with MIDI fuse holder and screw terminal connection to M8 for connecting the charge controller and battery
• 5x 40A 58V MIDI Fuse
• 5x 150A 32V MEGA Fuse for installation between the inverter and battery positive terminal for protection against short circuit
• 1x MEGA Fuse Holder

Roof mount for the solar module

Since there are different requirements for mounting a module and this can vary greatly depending on the type of roof, the systems in the Autark series are not equipped with a mount by default. Of course, this can be purchased separately – here are suitable suggestions:

• Mounting kit with beaver tail roof hooks for sloped roof installation
• Solar Panel Mount for Flat Roof Installation - Adjustable Tilt 10°-60°
• Mounting kit with screw anchors for sloped roof installation
• Mounting kit with adjustable roof hooks (for roof tiles)

Delivery contents:

1x Offgridtec® Autark Pro XL 24V 800W Solar System - 2000W AC Power 100Ah LiFePO4 Battery
