Offgridtec 3m 4mm² Connection Cable - module to charge controller
Product number:
HM-95GD-Z587
HM-95GD-Z587
4.85714
14
Shipped in 1-3 days
Product number:
HM-95GD-Z587

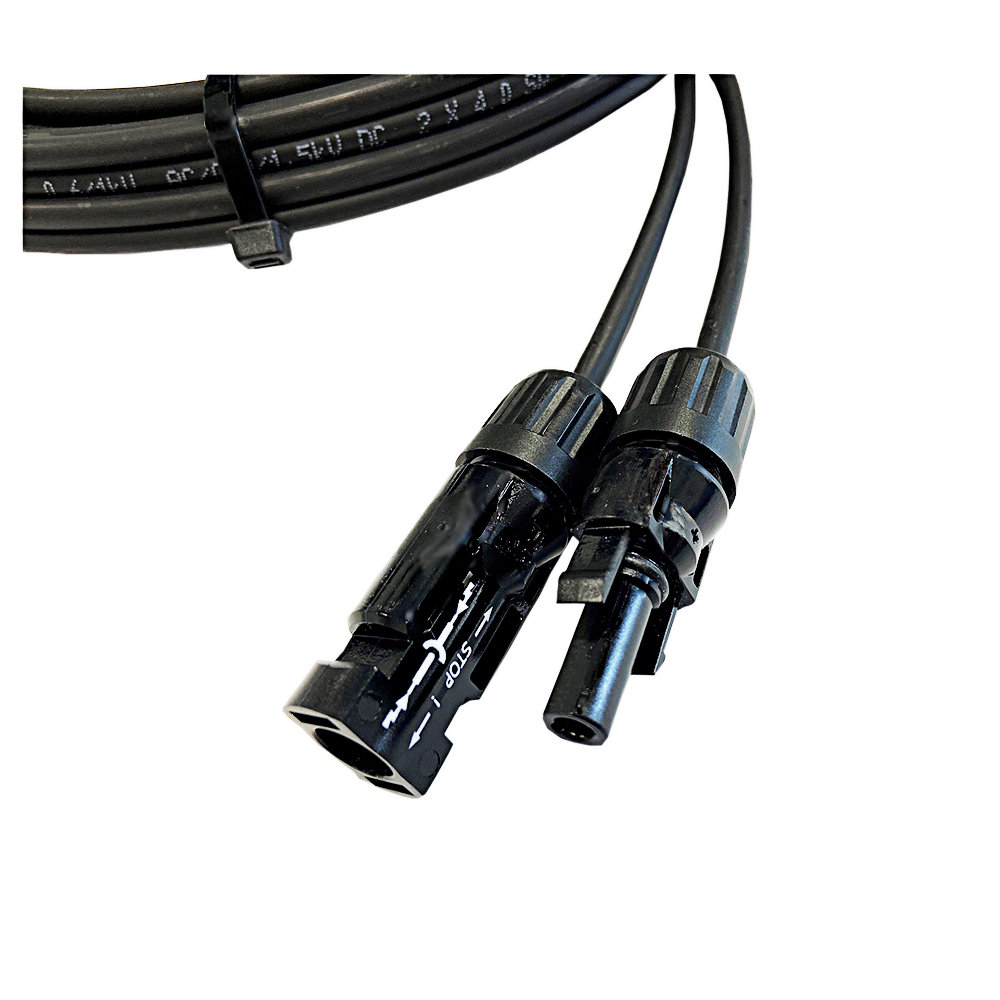

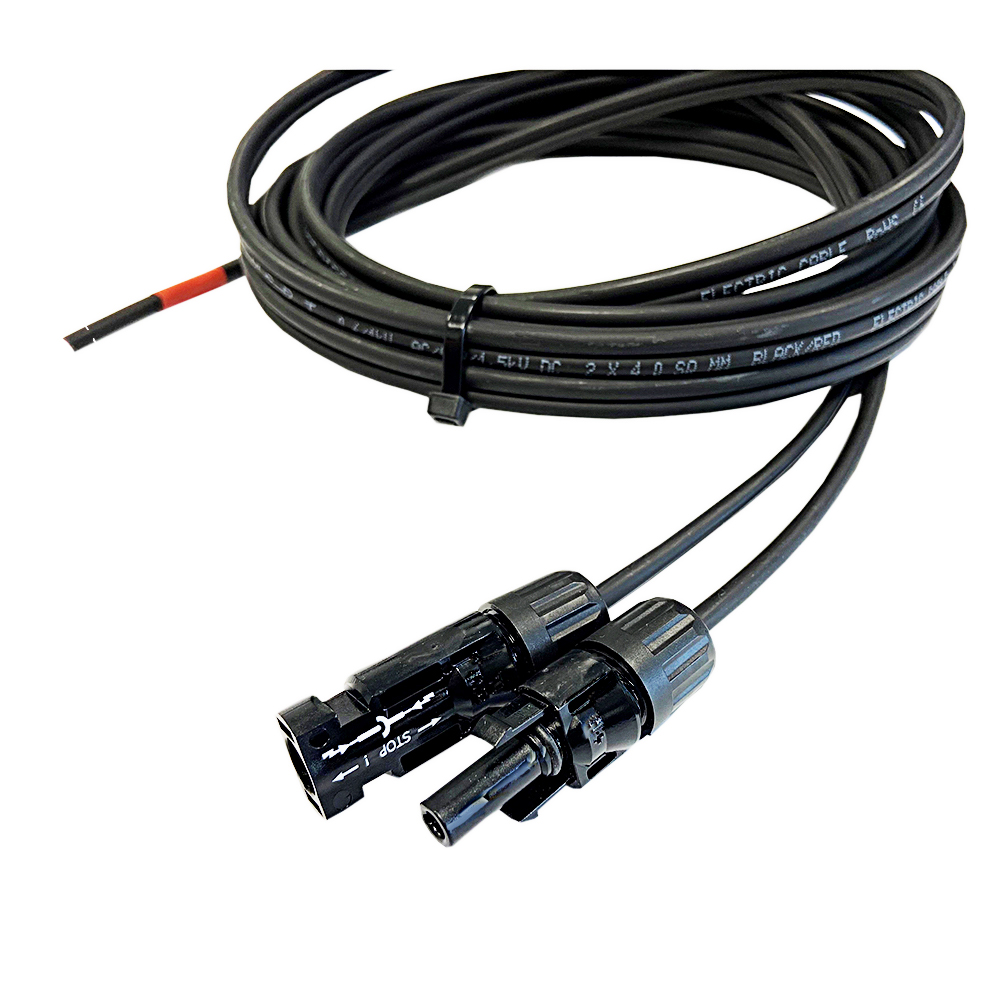

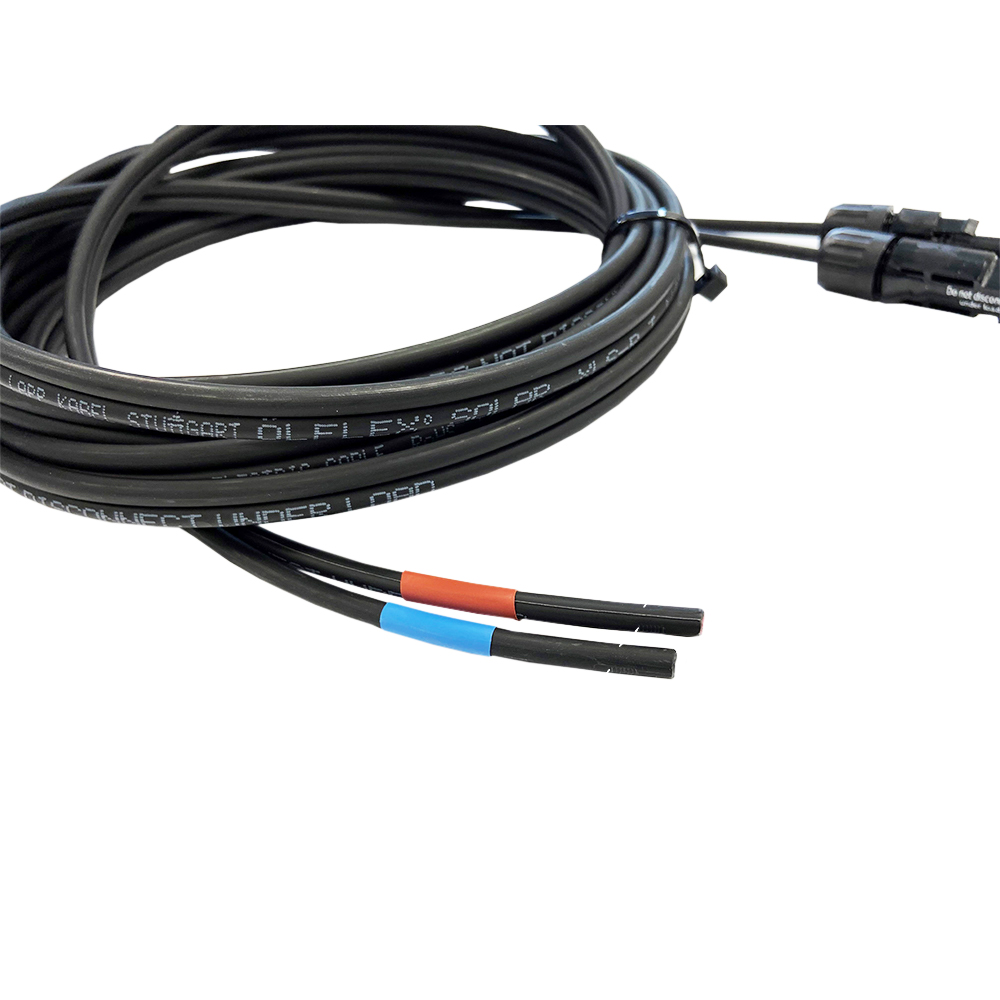

This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge controller). Most 12V modules have MC4-plugs - if other plugs are needed you find adaptors in our shop.
All components are crimped with professional tools and show excellent connection characteristics. The cable is manufactured in our factory in Lower Bavaria.
Solar cable:
- 4mm cable diameter
- double-insulated
- very flexible
- VDE 0295 class 5 and IEC 60228
- restistant against UV, ozone, weather, water, chemicals, oil, fire (according to VDE 0482-332-2, DIN)
- type of protection (plugged): IP67
- temperature range: -40°C to 90°C
- insulation material: PA
- connection system: snap-in
- cable relief according to IEC 61984
- contact system: MC4 contact fins
- contact material: tinned copper
- flame class: UL94-V0
- protection class: II
- system voltage up to 1000V

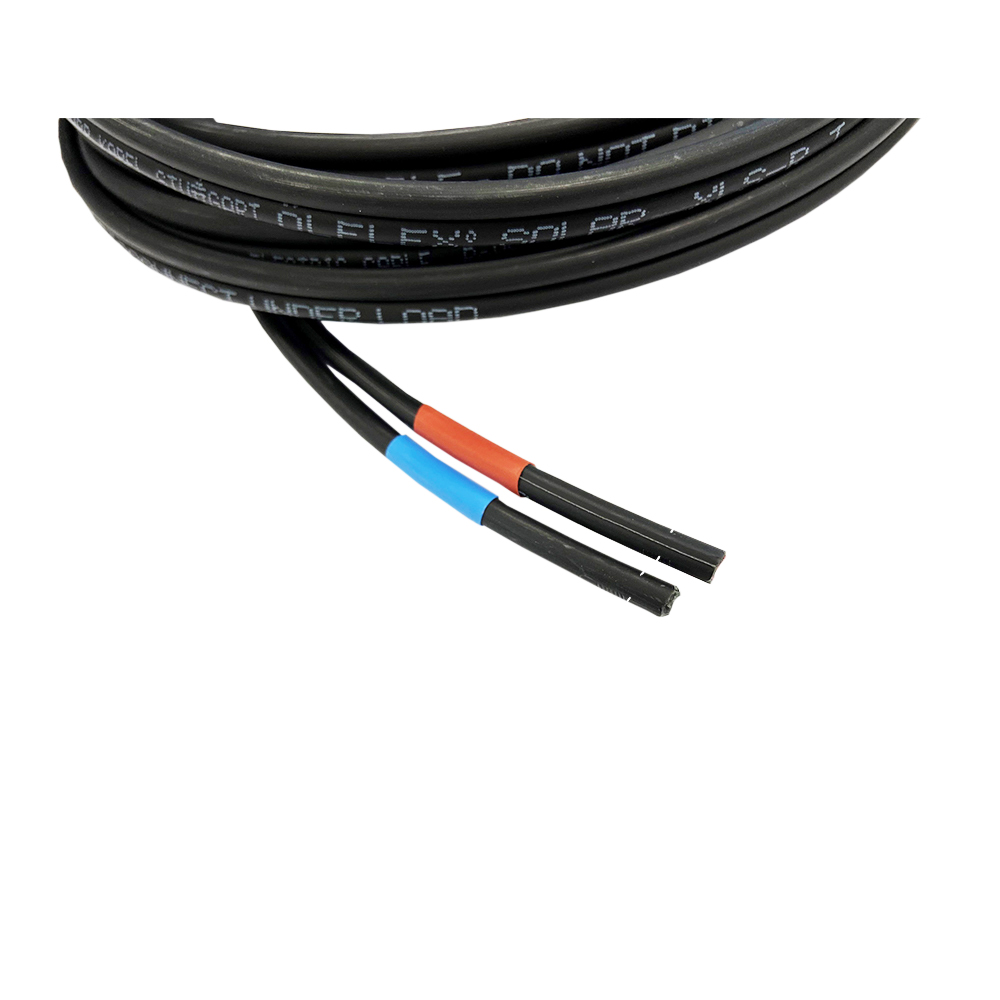

Ferrules:
- material: tinned copper
- length: 12mm
Manufacturer:
Offgridtec
Product Type:
Connecting cable
HM-95GD-Z587
