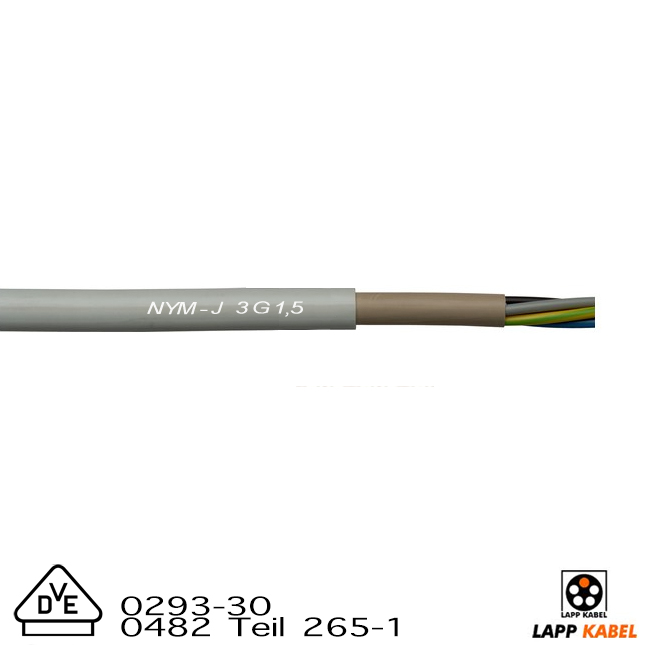

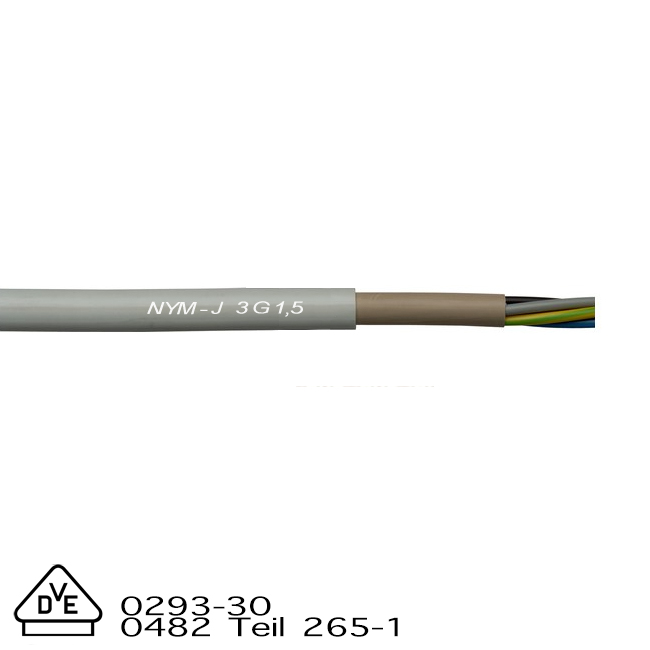

NYM-J 3 G 1.5mm² VDE Standard Cable for Plaster and Concrete
Product number:
8-15-005770
8-15-005770
Shipped in 1-3 days
Product number:
8-15-005770
NYM-J-PVC cable for buildings. Laying on, in or under plaster, walls and unreinforced concrete.
Standard Cable for Plaster and Walls Possible application:
conductor made of blank copper wires
isolation on PVC-basis
infill over wire-array
coating on PVC-basis Standards:
VDE 0250 part 204
Product Characteristics
Flame-retardant according to IEC 60332-1-2
Standard Cable for Plaster and Walls Possible application:
- on, in or under plaster
- in walls and concrete, except direct casting into jolted or tamped concrete
- in dry, humid and wet rooms/areas
- This cable can also be applied outdoor as long as there is no direct exposure.
conductor made of blank copper wires
isolation on PVC-basis
infill over wire-array
coating on PVC-basis Standards:
VDE 0250 part 204
Product Characteristics
Flame-retardant according to IEC 60332-1-2
Technical data:
Wires/conductor: 3 G 1.5mm²
Outer diameter: 8.4mm
Copper index: 43.0kg/km
Weight: 120 kg/km = 0,12 kg/m
Produktinformationen_NYM.pdf
Download
Manufacturer:
Lappkabel
Product Type:
Installation material
Manufactuerer Information
Lapp
U.I. Lapp GmbH
Schulze-Delitzsch-Straße 25
70565 Stuttgart
Germany
Mail: info.de.uil@lapp.com
Tel.: +49 711 783801
