kemo twilight switch 240 v / ac light controller
Shipped in 1-3 days

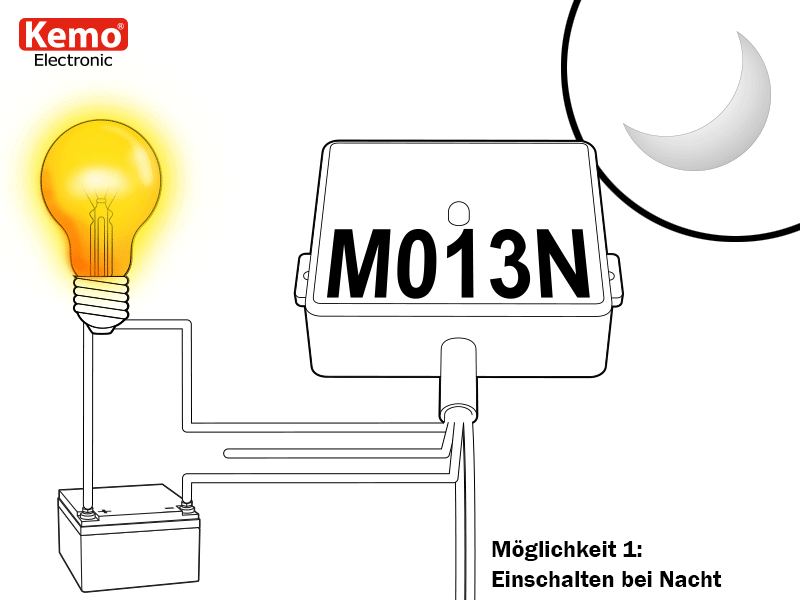

This electronic twilight switch for mains connection automatically switches lamps (e.g. energy-saving lamps) or other consumers on at dusk and off again at dawn via a built-in relay.
The module can also work in reverse: on at dawn (for advertising displays, fountains, etc.) and off at dusk.
Technical data
Operating voltage 210 - 240 V/AC
Current consumption < 40 mA
Switching contact (potential-free) 1x by max. 3a (resistive load), 1x by max. 1a (inductive load)
Switch-on brightness approx. 10 lux ± 50%
Switch-off brightness approx. 60 lux ± 50%
Response delay approx. 30 sec. ± 50%
Temperature range approx. -15°c to +40°C
Dimensions approx. 70 x 60 x 23 mm (without mounting brackets)
