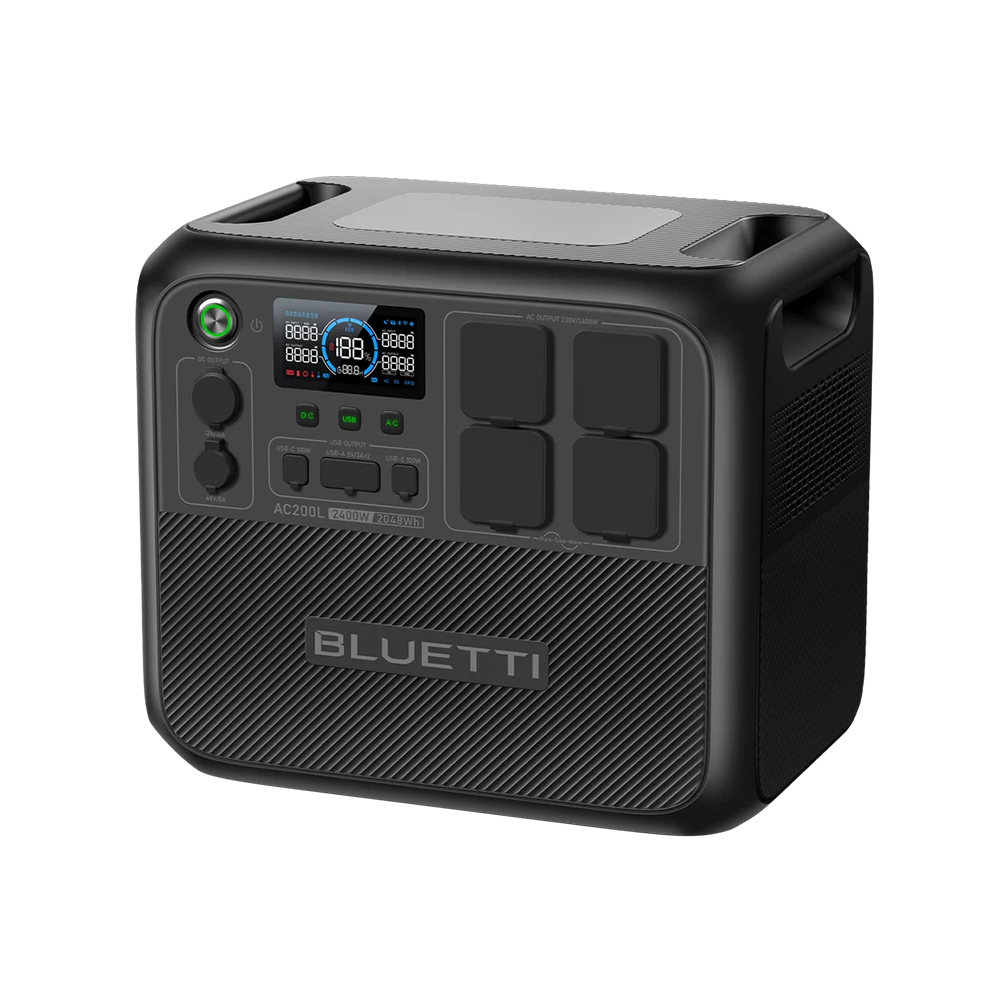

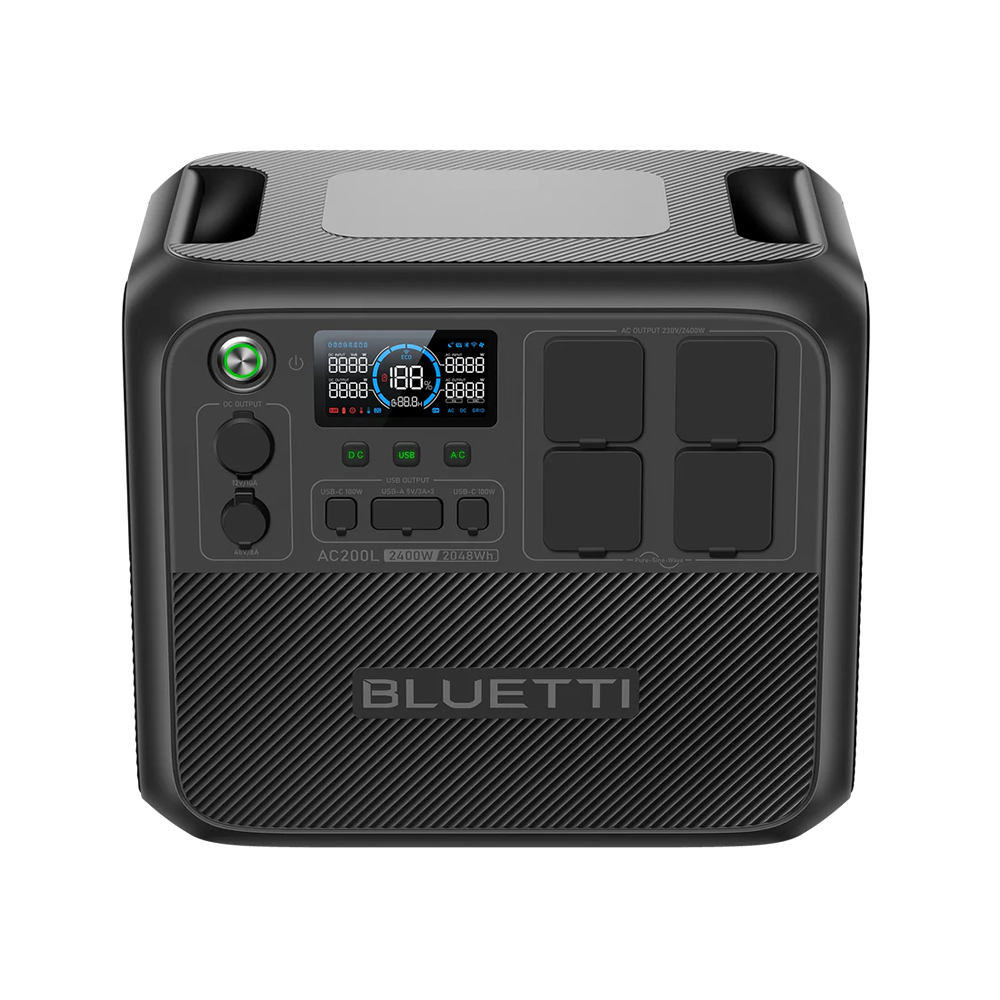

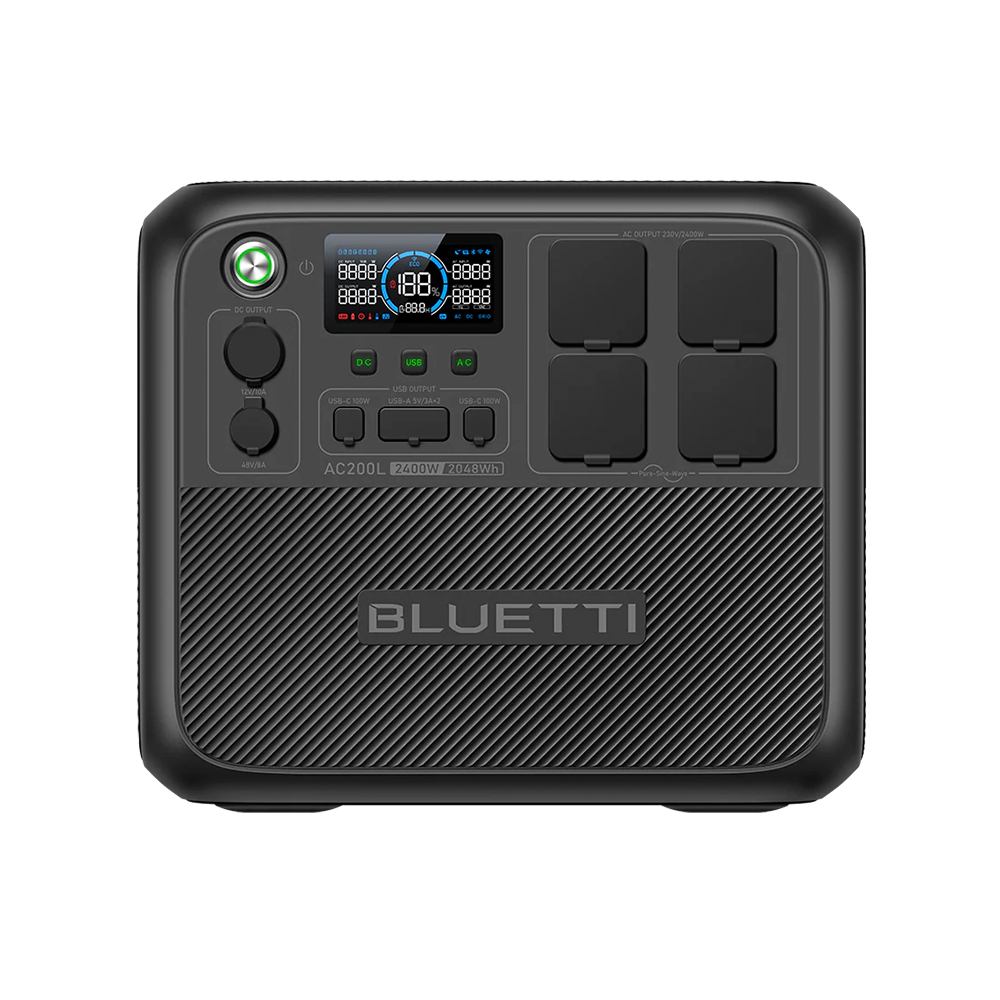

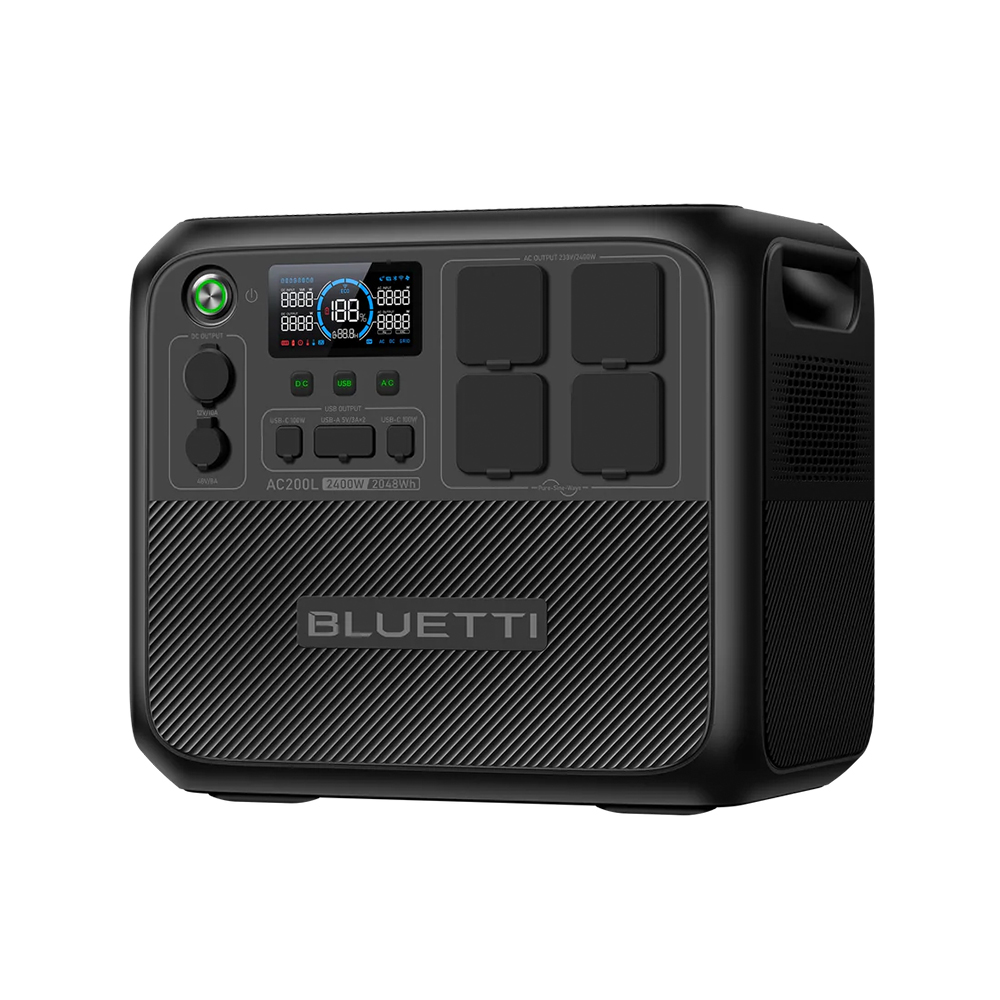

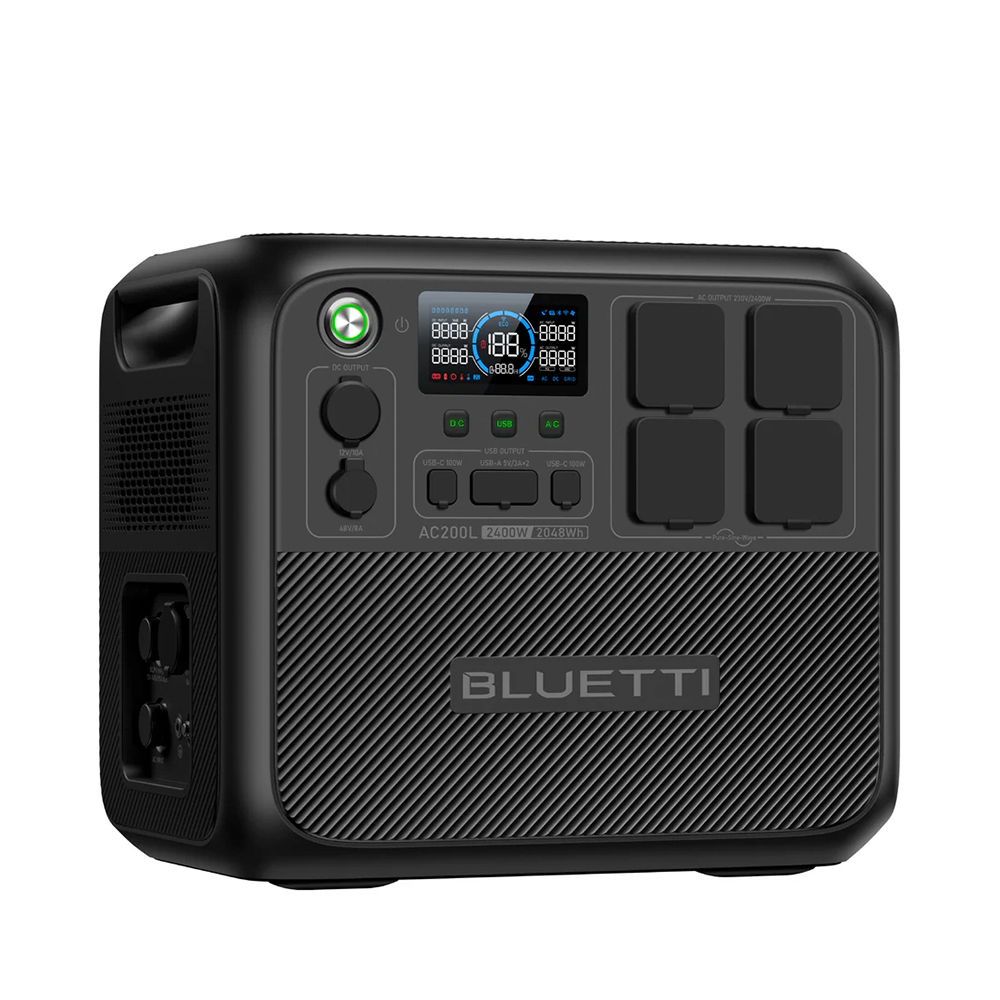

Bluetti AC200L Mobile Power Station LiFePO4 2400W 2048Wh

With the Bluetti AC200L Power Station (MPN: AC200L), you'll always have plenty of power wherever you are. It offers 2,048Wh capacity and 2,400W pure sine wave power, ideal for laptops, refrigerators, or tools, whether on the go or at home. You can charge the battery to 80% in just 45 minutes, and with up to 1,200W of solar input, you can use the sun's energy particularly efficiently. Thanks to flexible expansion options, you can increase the capacity to up to 8,192Wh with the B210, B230, or B300 batteries. The battery impresses with its high charging speed, powerful performance, quiet operation, and outstanding energy efficiency. State-of-the-art LiFePO4 battery technology and intelligent battery management also guarantee maximum safety and reliability.

Your advantages with the Bluetti AC200L

• Capacity of 2048Wh and LiFePO4 technology (3000+ cycles)
• Storage capacity modularly expandable up to 8192Wh
• Integrated BMS with numerous protective functions
• Perfect as a backup solution in an emergency, UPS in 20ms
• A total of 10 connection options (AC, USB-A, -C, etc.)
• For your devices at home or on the road in your RV
• Automatic change of supply mode in the event of a power failure
• Charging methods: AC outlet, 12V car adapter, solar panel
• Flexible and fast charging in 5 ways
• Control and monitor the power station with the BLUETTI app
• UPS: Switchover time <20 ms

Various charging options

AC charging - Conveniently connect your AC200L to a standard outlet. Charging starts immediately and ends automatically once the battery is full. This ensures you are always protected against overcharging. Want it extra fast? With the fast charging mode in the BLUETTI app, you can charge to 80% capacity in just 45 minutes at an ambient temperature of 25°C.

Charging with solar power - Simplyconnect your solar panels in series to the power station using the DC input cable. Under optimal conditions and with a solar module output of 1,200 W, your device will be ready for use again in around 2.4 hours. Charging time may vary depending on the weather, sunlight, and the orientation of the panels.

Charging via car - Simplyconnect the battery to your vehicle's 12 V cigarette lighter using the DC input cable and the car charging cable. With a charging power of up to 96 W, you can conveniently charge it on the go. Once the battery is full, it automatically stops charging.

Charging via lead battery - You can also charge flexibly using a lead-acid battery: simply connect the battery to the DC/PV port using an optional charging cable (not included). This gives you even more independence and allows you to access an additional energy source at any time.

Charging via generator - Simplyconnect your AC200L to your generator using the AC charging cable. Charging is reliable and stops automatically once the battery is fully charged.

Possible applications

RV travel – Enjoy traveling in your motorhome with all the comforts of home, without worrying about power shortages. Thanks to its large capacity, you'll always be well supplied.
Camping – Even in the wilderness, with the AC200L you'll never be left in the dark and can enjoy nature without sacrificing comfort.
Craftsmen and construction sites - Power tools, machines, and lighting
Office/IT on the go – laptops, routers, or servers far from infrastructure
Home backup – If the power goes out at home, the power station continues to provide energy. This means your devices continue to run without interruption and you can stay relaxed.
Off-grid living - Whether in a remote cabin or far away from everyday life, with the battery you always have reliable power for light, heat, tools, and devices.

Various setting options

• Mode setting
• Frequency switching
• AC charging mode
• Power lifting mode
• ECO mode
• Wi-Fi & Bluetooth connection
• UPS mode
• Auto-adjustment mode
• Max. mains input current
• Exiting setup mode

Take full advantage of your power station:
BLUETTI app for Android
BLUETTI app for iOS

Technical

AC output

• Power: 2400 W
• Overload power
  • 2520-300 W, 2 min.
  • 3000-3600 W, 5 sec.
  • >3600 W, 0.5 sec.
• Voltage: 230 VAC
• Current: 10.5 A
• Frequency: 50/60 Hz

DC output

• Cigarette lighter: 12 VDC / 10 A
• USB-A x2: 5-12 VDC / 1.5-3 A, 18 W each
• USB-C x2: 5-20 VDC / 3 A, 20 VDC / 5 A
• DC connection: 48 VDC / 8 A

AC input

• Voltage: 230 VAC
• Current: 10.5 A
• Frequency: 50/60 Hz
• UPS: Switchover time ≤20 ms
• Power: Max. 2,400 W (0–80% in 45 minutes at 25°C / 77°F)

DC input

• Interface: 2-pin socket for use in aviation
• Power: max. 1,200 W
• Current: max. 15 A
• Voltage: 12 - 145 VDC

Battery extension connection:

• Voltage: 44.8 - 57.6 VDC
• Input current: max. 60 A

General

• Battery capacity: 2048 Wh (40 Ah)
• AC+DC/PV input power: max. 2400 W
• AC+DC output power (without mains): max. 2500 W
• Charging temperature: 0°C - +40°C
• Discharge temperature: -20°C to +40°C
• Weight: 28.3 kg
• Dimensions: 420 x 280 x 366.5 mm

Scope of delivery:

1x Bluetti AC200L Portable Power Station
1x AC charging cable
1x DC input cable
1x solar charging cable
1x Car Charging Cable
1x User Manual
