36 pcs.Trina Solar 445w Vertex s+ double glass N-Type TopCon solar module
Shipped in 2-5 days
The Trina solar Vertex s+ (mpn: tsm-neg9r.28) is an effective solar module with an output of 445w that uses monocrystalline TOPCon cells and dual-glass technology. Thanks to the multi-busbar technology, it offers improved absorption, low series resistance, improved current dissipation and reliability. It is certified for extreme wind and snow loads of 5400 - 4000 Pa and has highly transparent, 1.6 mm thick glass with anti-reflective coating. The frame is made of a 30 mm wide, anodized aluminium alloy.
Product highlights of the Trina Vertex s+ module
- Multi-busbar technology
- Dual glass design
- High-density cell connection technology
- N-type i-TOPCon cell technology
- very low degradation
- High efficiency of 22.3%
- Manufacturer product guarantee: 25 years
- Universal solution for residential and C and I roofs
- Incl. connection cable (4.0mm²)
N-TOPCon cell technology
The advanced TOPCon technology (Tunnel Oxide Passivated Contact) is a further development of PERC technology and aims to increase the efficiency of solar cells. The solar modules are provided with an ultra-thin oxide layer and a subsequent conductive layer, which leads to a so-called passivated contact. As a result, the performance of the solar cell is improved in low light conditions, leading to higher annual energy production.

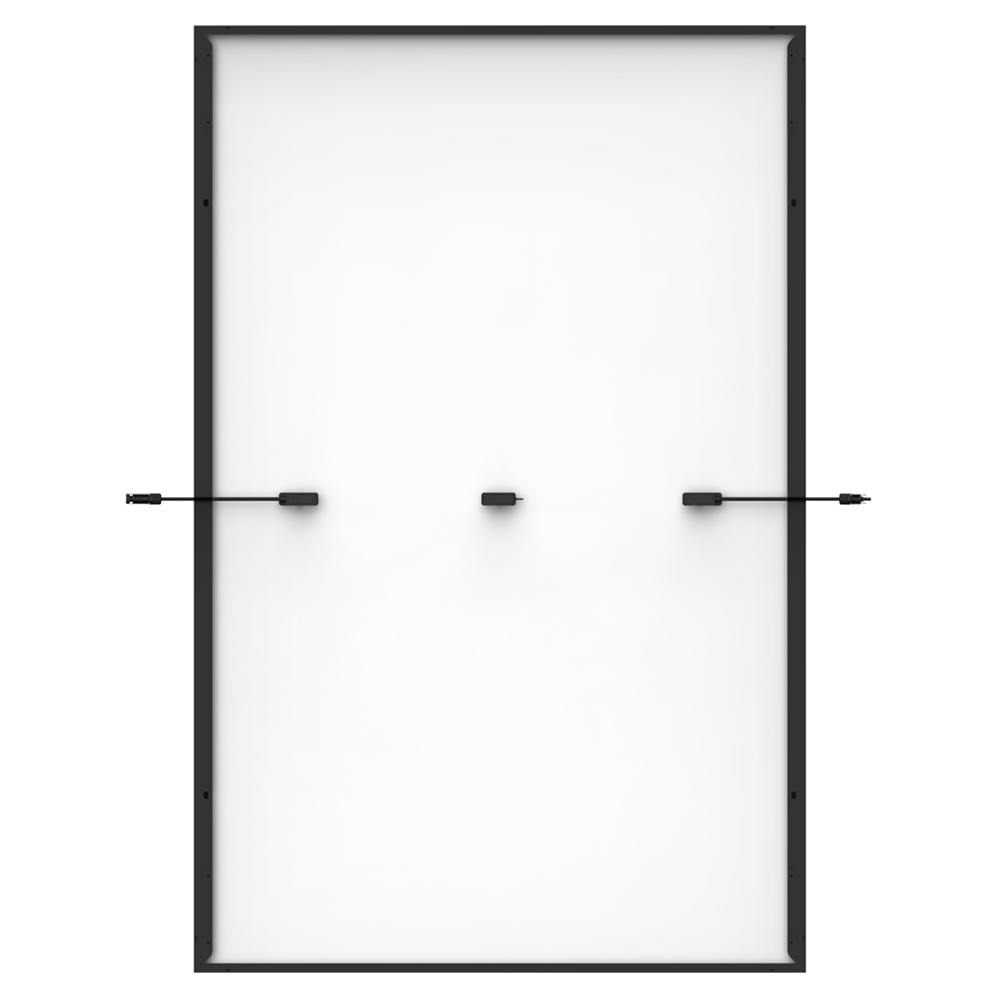

Dual glass design
The solar module is equipped with an improved dual glass, which makes it less susceptible to micro-cracks and scratches on the back during installation. This gives it increased mechanical resistance and strength. It is particularly suitable for use in coastal areas, in high temperatures and high humidity and in demanding environments. Other great features:
- Outstanding fire resistance
- Resistance to weathering
- Resistance to salt spray, sand dust or ammonia
Multi-busbar technology
Each PV module has busbars that act as busbars and are permanently connected to each solar cell. they collect the generated direct current and transmit it to the busbars. Trina solar uses a larger number of busbars to reduce shadow effects, shorten transport distances and minimize resistance in the modules.
Universal solution for residential and CundI roofs
The module has been designed so that it can be easily integrated into existing inverters and various mounting systems. It is also optimally dimensioned and lightweight, which makes it easier to handle and install. For this reason, the Vertex s is the ideal solution for roofs with limited load-bearing capacity.
Technical data
- Power (Pmax): 445 W
- voltage (Vmp): 44.3 V
- Max. current (Imp): 10.05 A
- Open circuit voltage (Voc): 52.6 V
- Short-circuit current (Isc): 10.71 A
- Operating temperature: -40°C - +85°C
- Max. system voltage: 1500 V DC
- Max. Fuse protection: 20A
- Cell efficiency: 22.3%
- Number of cells: 144
- degree of protection junction box: IP68
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 21.1 kg
Scope of delivery:
1x Trina solar 445w Vertex s+ double glass N-Type TopCon solar module
