1200W balcony power plant with ultra-light solar modules and Zendure AIO Pro storage system

The Offgridtec 1200W balcony power plant (MPN 022225) is the perfect solution for efficient and sustainable electricity generation in your home. With six Offgridtec balcony solar panels, you benefit from high energy output and optimal performance, even in varying light conditions. The ultra-light PV panels are delivered with metal cable ties for easy installation on the balcony railing. The Zendure AIO Pro all-in-one storage system, which combines a Hyper 2000 hybrid inverter with a powerful 1920Wh AB2000S battery, feeds the generated energy into your household and reliably stores any surplus in the battery, so you can access your own electricity even at night or on cloudy days. Take advantage of renewable energy with this well-thought-out complete system, improve your energy balance, and take a forward-looking step toward sustainability.

• Energy Storage: Stores surplus energy for later use
• High Capacity: Reliable energy supply from battery
• Maximized Energy Production: Optimization in partial shading
• Excellent Efficiency: Monocrystalline PV modules with over 22% efficiency

The balcony power plant complete system includes:

• 3x Offgridtec balcony solar module set 12V 2x 200W
• 1x Zendure AIO Pro 1200 all-in-one storage system
• 3x Offgridtec connection cable MC4 to MC4 6mm² 5m red/black
• 1x Offgridtec Y-splitter connectors
• 1x Zendure AB2000S expansion battery 1920Wh

How does a balcony power plant work?

The Offgridtec balcony power plant is a compact solar system consisting of several solar modules and a Zendure AIO storage system. The Hyper 2000 inverter is connected to your household via a standard Schuko socket and stacked on top of the battery. The generated solar power is used directly in the household, and surplus energy is stored in the battery for later use. If grid power is available, your devices will use it first before switching to stored energy. This allows you to optimize your power supply efficiently.

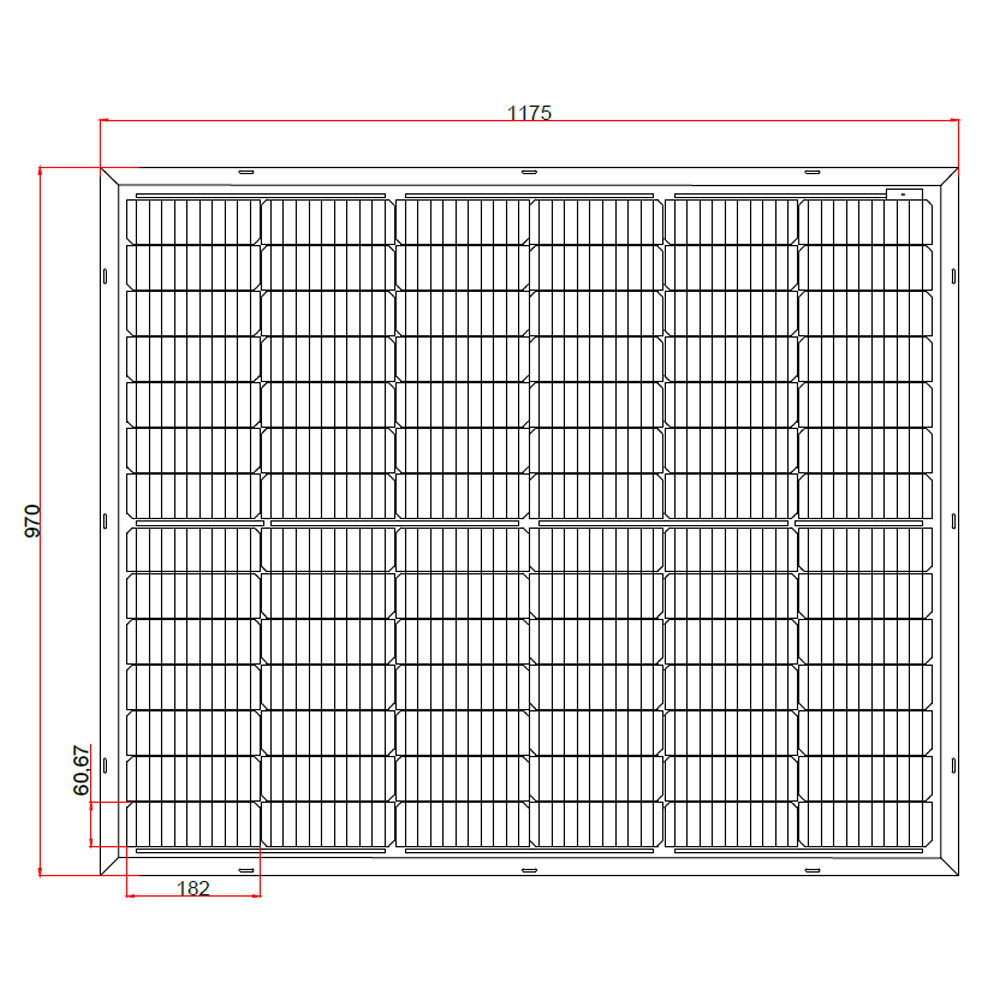

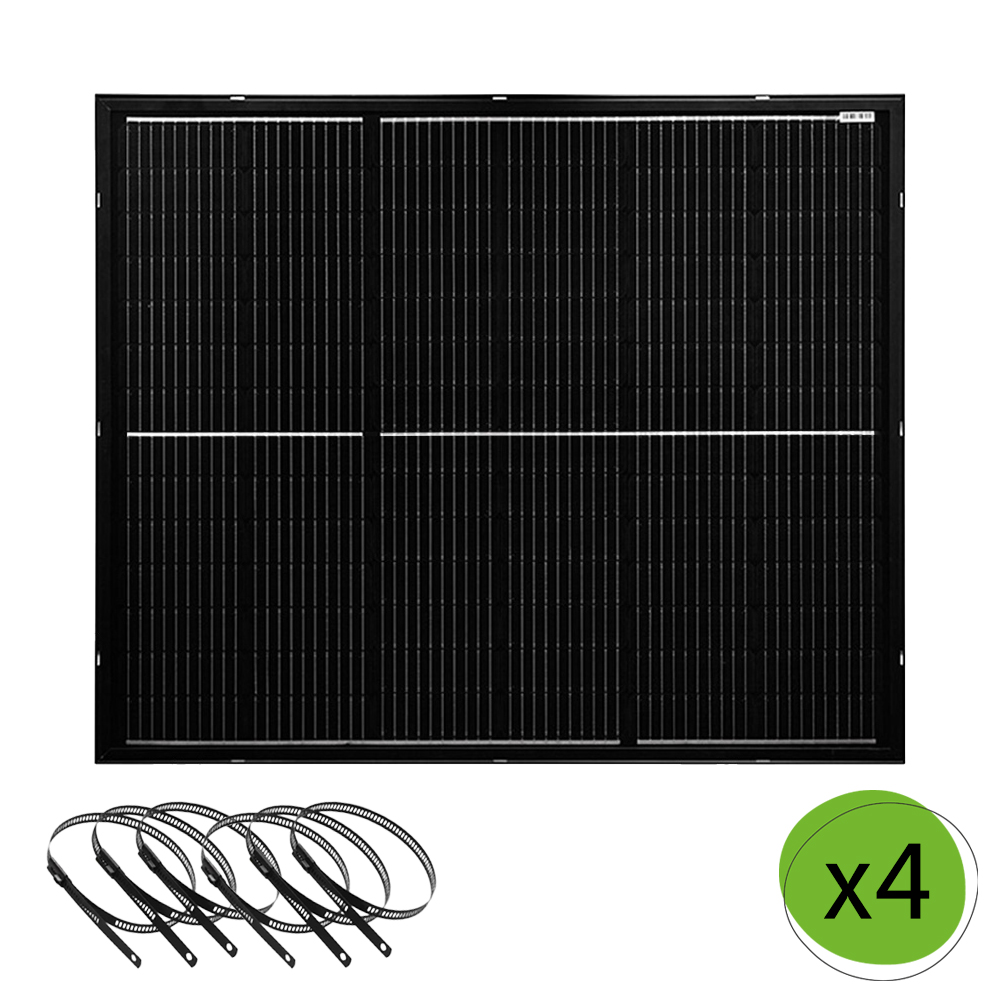

Offgridtec Balcony Solar Module Set

The Offgridtec balcony solar module set 2x 200W consists of two 200W solar modules with monocrystalline solar cells and an impressive efficiency of 22.7%. These modules offer an operating voltage of 24.2V each and combine outstanding energy efficiency, aesthetic design, and easy installation at affordable costs.

• High-performance monocrystalline solar cells
• 8mm thin aluminum frame
• Includes metal cable ties for easy installation

Technical data per module:

• Power (Pmax): 200W
• Operating voltage (Vmp): 24.2 V
• Open circuit voltage (Voc): 28.3 V

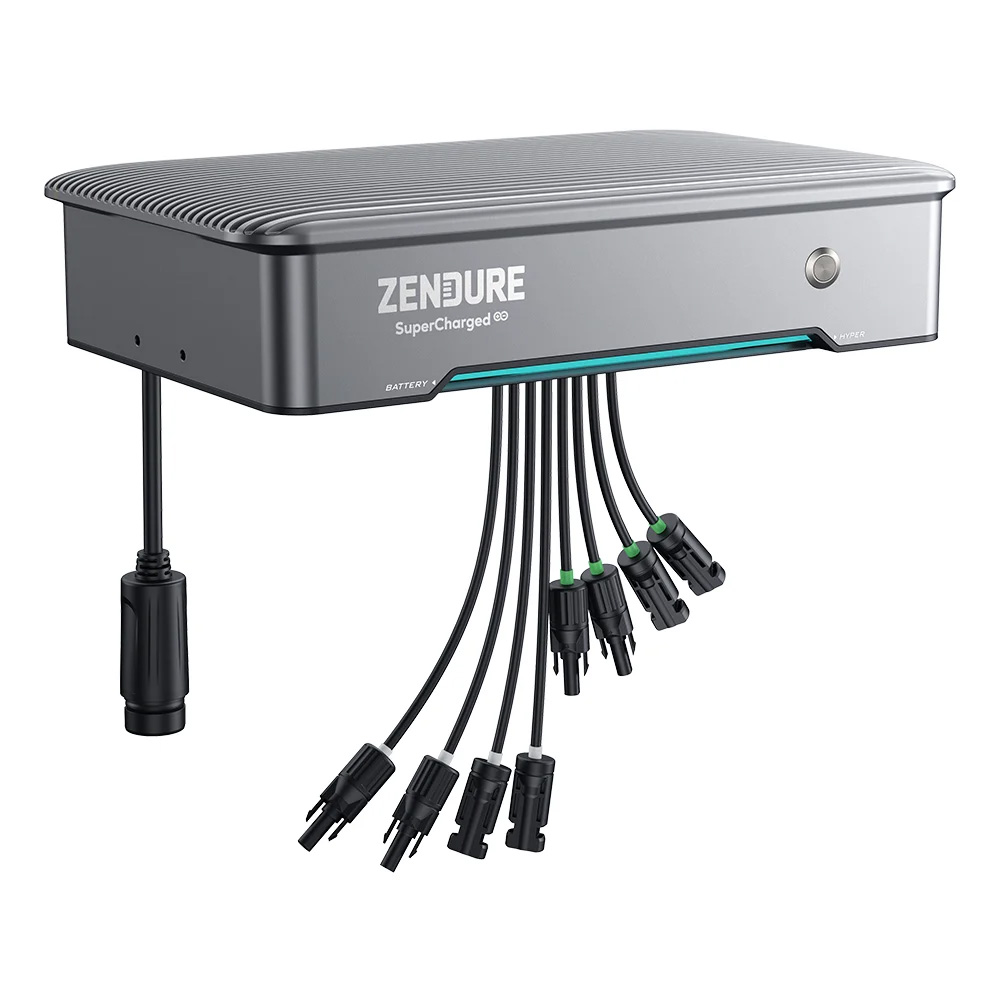

Zendure All-In-One Pro 1200 Storage System

With the SolarFlow storage system from Zendure, you get an efficient solution to charge your balcony power station's battery with solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 960Wh AB1000S battery, which features the latest LiFePO4 cell technology.

• Hybrid inverter
• Flexible storage capacity with expansion options
• Automatic multi-set connection via ZenLink
• Anti-discharge technology

Technical Data

Inverter

• Rated voltage: 15V-55V
• Recommended power: 350W-550W
• Number of MPPT trackers: 2
• MPPT voltage range: 16-48V
• Rated current: 20A per MPPT
• Rated power: 900W per MPPT

Battery

• Capacity: 1920Wh / 48V
• Battery type: LiFePO4
• Max. expansion capacity: 4 x 1920Wh = 7680Wh

Balcony Power Plants in Germany

Currently, there is no law or regulation in Germany specifically governing the generation of solar power for personal use. The limit of 800W AC PV power is a reserve value that can be fed into an existing socket circuit in a home, based on current VDE standards, without overloading it. No description is provided for independent circuits without additional loads.
Any electrical installation must be performed in accordance with VDE standards. Operating a balcony power plant via a standard Schuko socket is generally not prohibited. Registration with the Federal Network Agency is mandatory. However, there are no known cases of fines for unregistered balcony power plants or major issues with grid operators. Compliance with norms and obligations is the responsibility of the system operator. Numerous technical and legal resources are already available on specialized websites.
