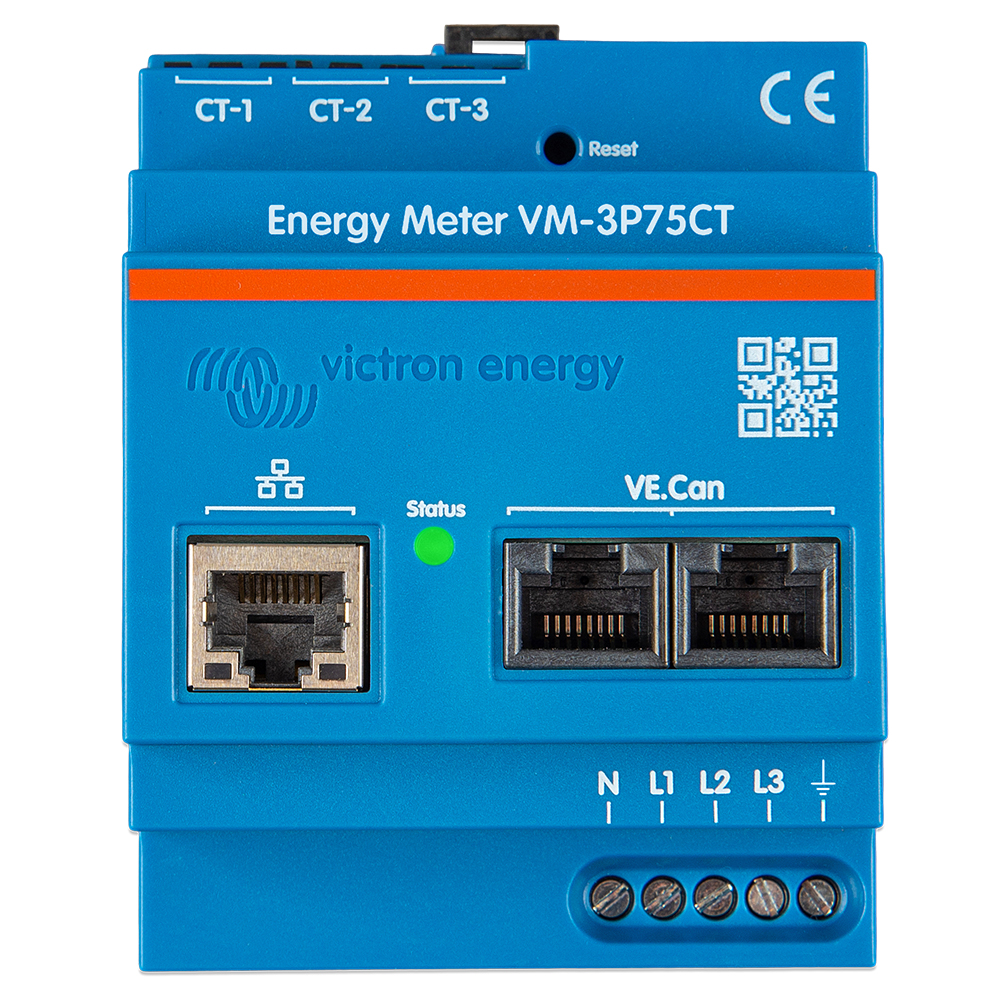

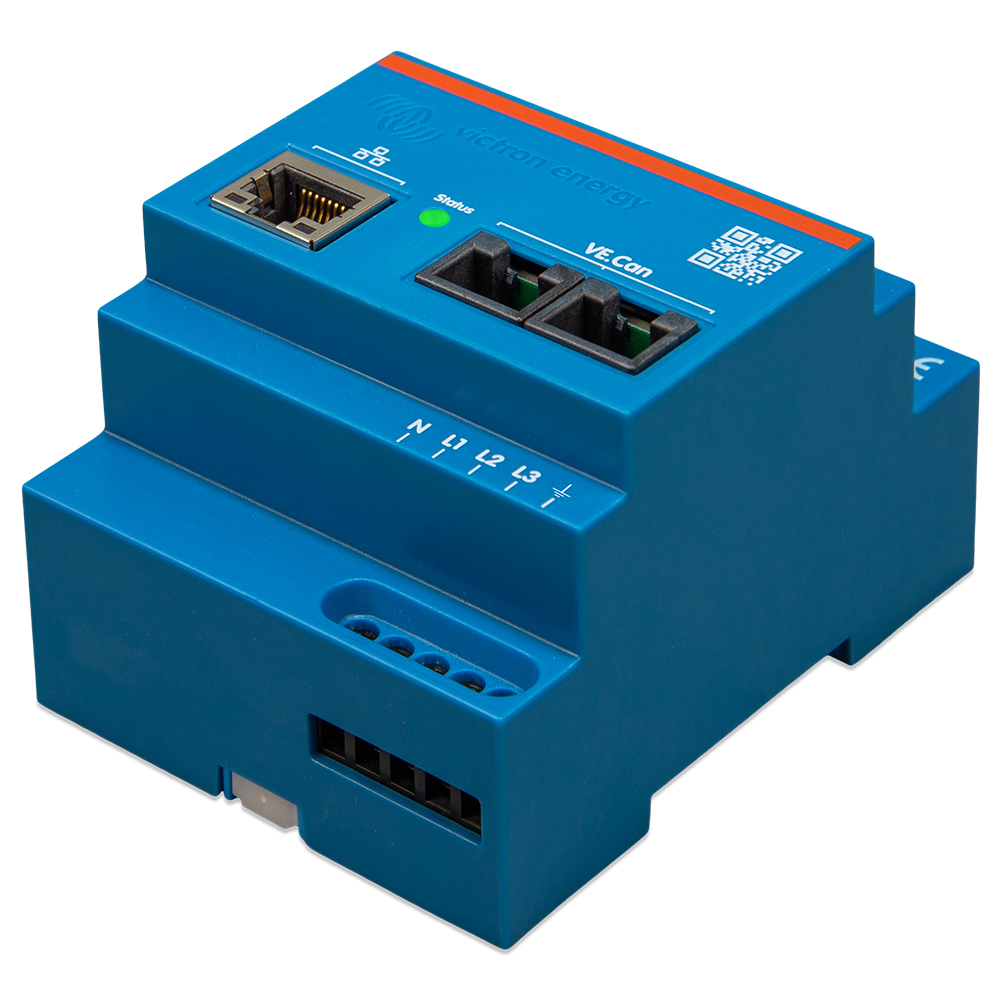

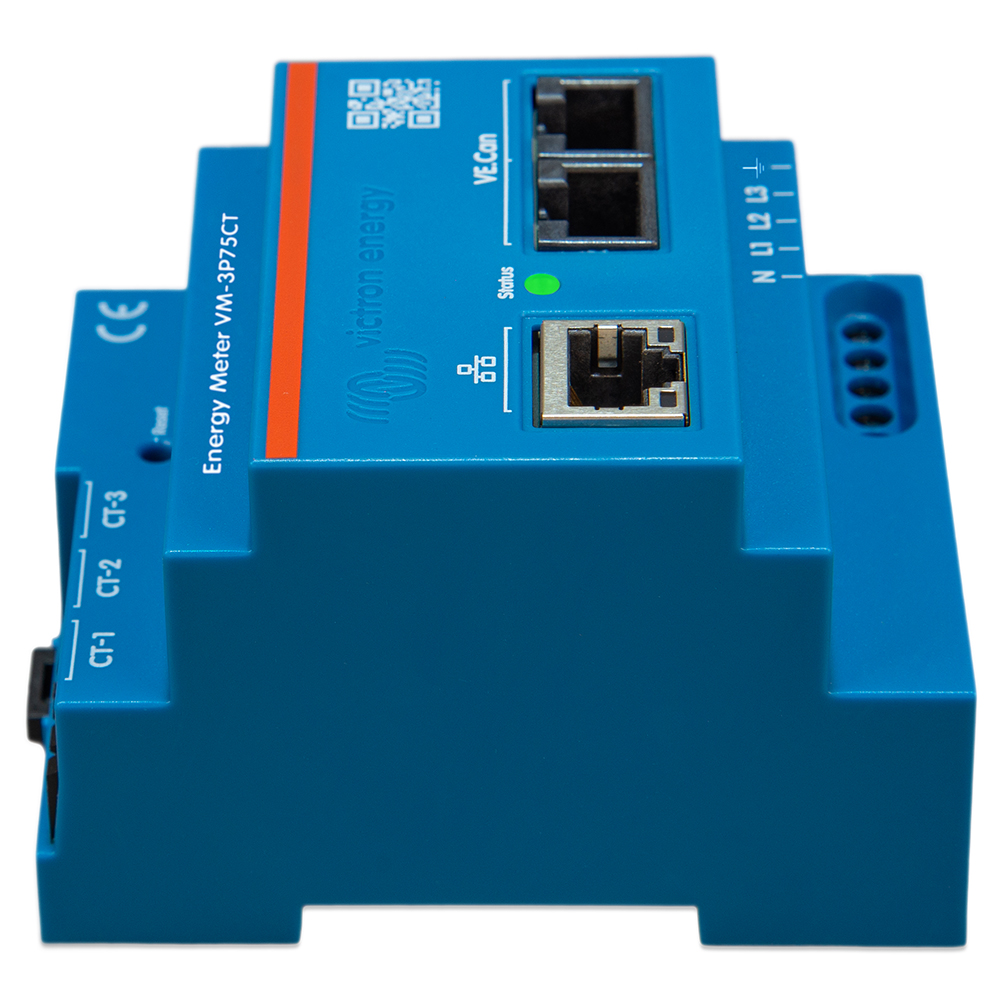

Victron VM-3P75CT Energy Meter 3-Phase Meter including 75A Current Transformers (CTs)
Shipped in 1-3 days
The Victron Energy VM-3P75CT (MPN REL200300100) is a 3-phase energy meter with three included current transformers (CTs) for up to 75 A per phase. It precisely measures power consumption, grid import, and export, and transmits data quickly via VE.Can or Ethernet. Ideal for easy and immediate integration into energy systems.
Suitable for Various Applications
- Energy measurement at the distribution box
- Monitoring of AC generation systems (e.g., PV inverters)
- Power measurement of alternators
Installation of the VM-3P75CT
The VM-3P75CT uses clamp-style current transformers to accurately measure current without modifying existing wiring installations.
Vector Registration Method
The VM-3P75CT employs the vector registration method, where the vectors of the individual phases L1, L2, and L3 are summed.
Remote Monitoring
Data from the VM-3P75CT can be viewed in the Victron Connect app and on GX devices such as the Cerbo GX or Ekrano GX.
Technical Data
- Voltage connection: Direct
- Voltage range L-N: 85–265 VAC
- Voltage range L-L: 150–460 VAC
- Frequency: 50/60 Hz
- Rated current: 75 A
- Communication:
- VE.Can (2x RJ45, termination resistors included)
- Ethernet (RJ45, Modbus UDP)
- Baud rate: 100 ms
- Protection class: IP20
- Weight: 370 g
- Dimensions: 90 x 71 x 59 mm
Scope of Delivery:
1x Victron REL200300100 VM-3P75CT 3-phase energy meter

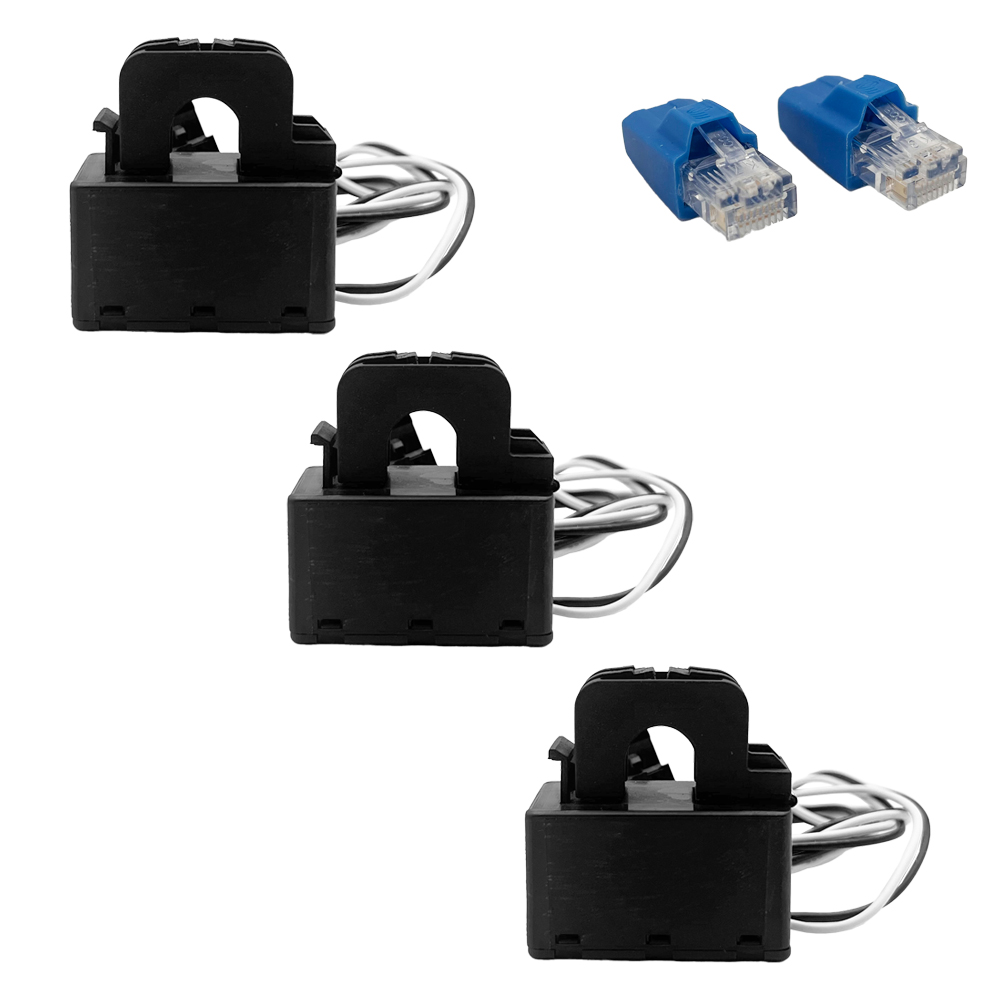

3x Current transformers (CT) 75A
1x Plug-in screw terminals
2x RJ45 connectors
1x User manual
