SolaX T-BAT 11.5kWh LiFePO4 high-voltage battery system
Soon available again
The SolaX Triple Power Battery Set includes:
- 1x T-BAT 5.8kWh master battery LiFePO4
- 0-3x T-BAT 5.8kWh slave battery LiFePO4

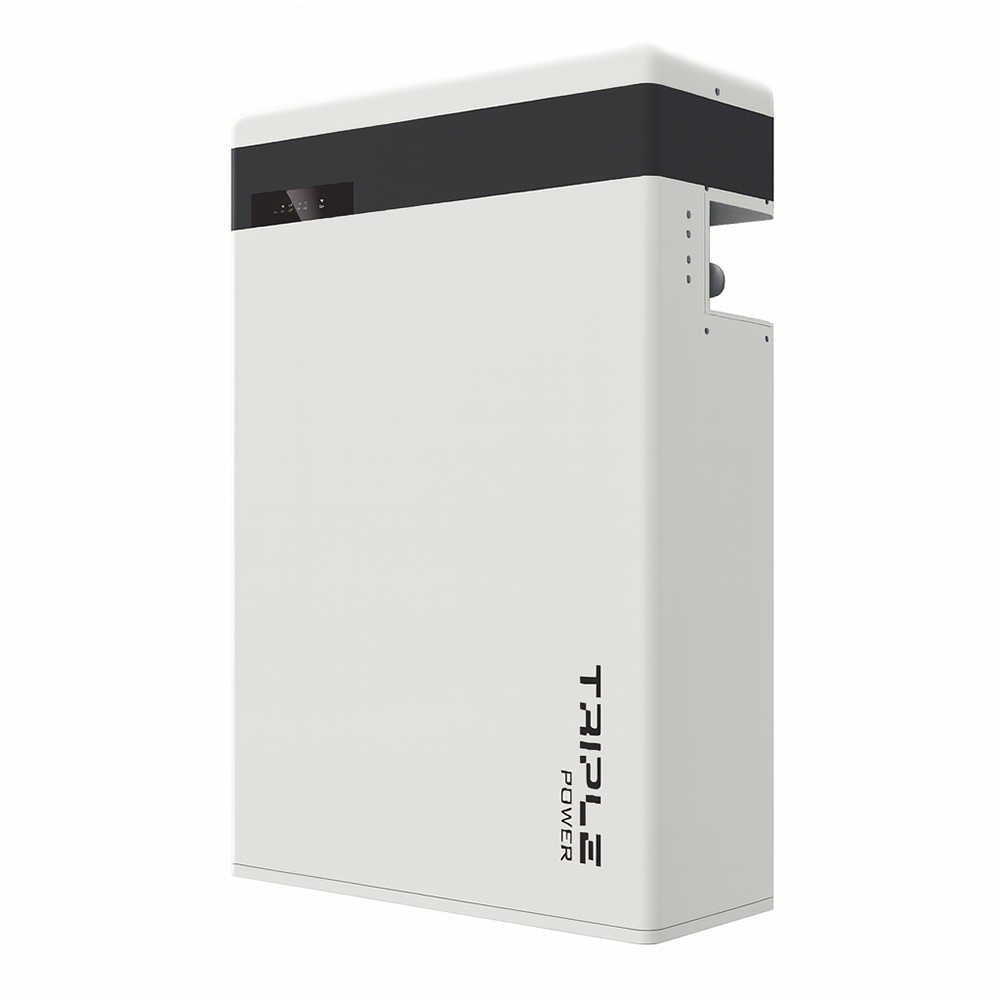

T-BAT master battery
The SolaX T-BAT-SYS-HV-5.8 (MPN: 1020030064) is a state-of-the-art high-voltage home storage system designed specifically for photovoltaic systems. With a usable capacity of 5.1 kWh and a depth of discharge of 90%, it ensures efficient and long-lasting storage of solar energy. Equipped with high-quality LiFePO₄ cells and IP65 protection, it offers maximum safety and reliability in operation. Flexible mounting on the wall or floor allows for easy integration into various living situations. Thanks to CAN and RS485 communication, the battery is compatible with Solax inverters and supports intelligent monitoring and control of energy flow, optimizing the self-consumption of solar power.
- Usable capacity of 5.1 kWh at 90% depth of discharge for maximum energy yield
- over 6000 charging cycles for a long service life and sustainable operation
- Highly secure LiFePO₄ cells combined with IP65 protection for reliable and safe operation
- Flexible mounting options: wall or floor installation possible
- Environmentally friendly technology without toxic heavy metals or corrosive materials
- Compatible with Solax inverters thanks to CAN and RS485 interfaces
- Intelligent monitoring and control of energy flow to optimize self-consumption
- Ideal for reliable and efficient solar energy storage in private households

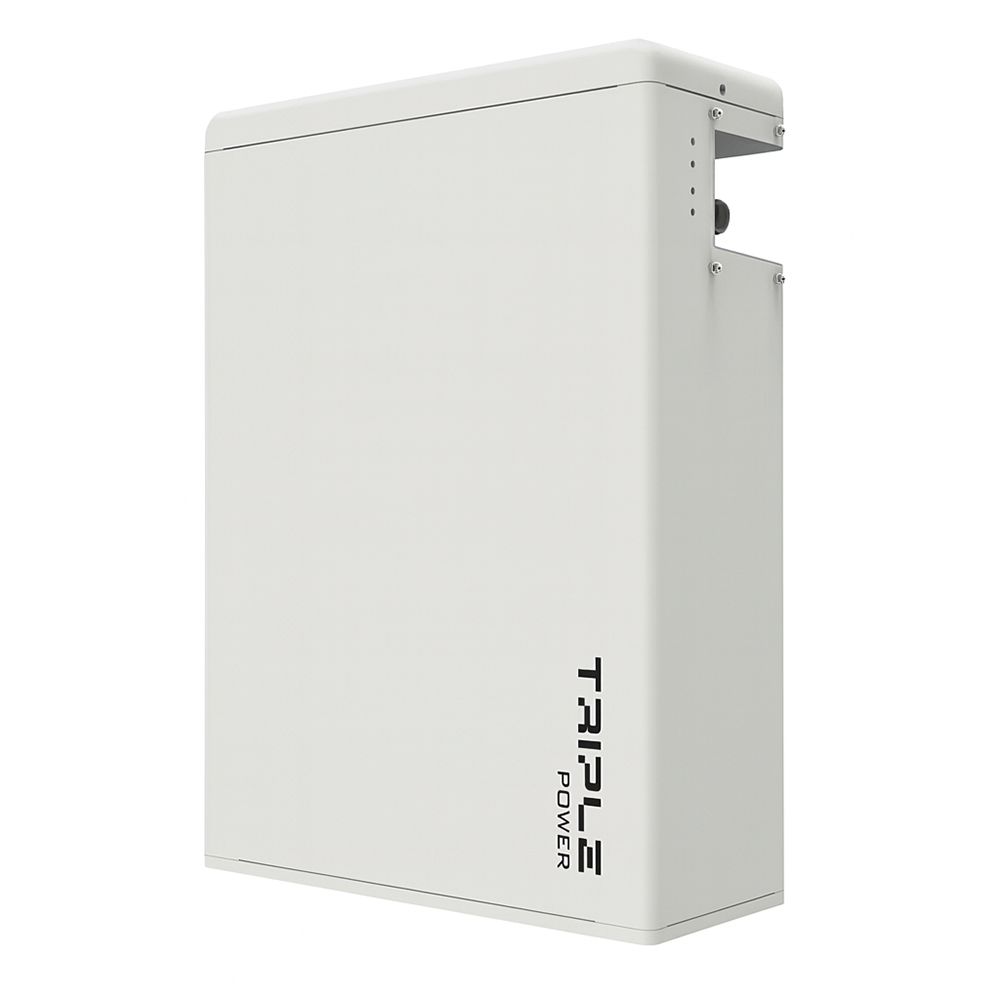

T-BAT slave battery
The Solax HV11550 Battery 5.8 kWh (MPN: 1020030063) is a powerful extension for the Solax Triple Power storage system and serves as a slave battery in combination with the T-BAT H 5.8 master battery. With its LiFePO₄ technology, it ensures high safety, long service life, and stable performance over numerous charging cycles. The usable capacity of 5.2 kWh enables a reliable energy supply for private and commercial applications. Thanks to its modular design, the storage system can be flexibly and easily expanded to up to 23.2 kWh and adapted to growing energy requirements.
- Highly secure LiFePO₄ technology for long-lasting and stable performance
- Nominal capacity of 5.8 kWh with 90% depth of discharge for maximum utilization
- Modular design for flexible scaling up to 23.2 kWh
- Plug & Play installation for easy expansion
