Haier Smart Cube 15kWh LiFePO4 storage system including 3-phase inverter and DC charger
Soon available again
Similar Products
Soon available again
Soon available again
The SmartCube complete set from Haier (MPN: 024813) combines everything you need for a modern and reliable power supply in one tower. The system combines 1-6 LiFePO4 battery modules, each with a capacity of 5kWh, a customized 3-phase hybrid inverter, and, if selected, an EV-DC charger for charging or discharging your car. Thanks to the possible expansion to up to 30kWh, you always have enough energy available to operate your devices without any problems. The modular design and plug-and-play principle ensure easy installation, without any drilling or cable clutter. Experience the future of energy generation now and secure a sustainable, long-lasting energy source for your home.
The SmartCube set includes:
- 1-6xSmart Cube 5kWh LiFePO4 battery module
- When selecting: Suitable Smart Cube inverter depending on battery capacity
- if selected: Smart Cube EV-DC charger
- Matching installation kit
LiFePO4 battery module
The HBP-5.0 battery module from Haier is a 5kWh storage unit featuring the latest LiFePO4 technology. The battery generates and uses surplus energy from your solar system, allowing you to efficiently reduce your electricity costs. The battery compensates for falling temperatures with its integrated heating system, ensuring that you always get the best performance from your system. The built-in gel pad as an extinguishing function and the attached pressure equalization valve protect your system from overheating or fires.
- LiFePO4 technology
- Built-in gel pad - extinguishing function
- Integrated heating for temperature drops
- Battery management system
- Immediate pressure equalization when heated
- Complete temperature monitoring
Technical data
- Battery type: LiFePO4
- Total capacity: 5.38kWh
- Available capacity: 5.2kWh
- Voltage range (single-phase systems): 300-600V
- Voltage range (3-phase systems): 600-900V
- Max. charging and discharging power: 2500W
- Peak charging and discharging power (10 seconds): 3750W
- Storage temperature range: -25°C - +60°C
- Operating temperature range: -20°C to +55°C
- Service life: >7000 cycles
- Cooling: Natural convection
- Protection class: IP66
- Weight: 55 kg
- Dimensions: 767 x 270 x 260 mm
Smart Cube inverter
Note: The size of the inverter depends on the choice of battery capacity and is optimally matched to it.

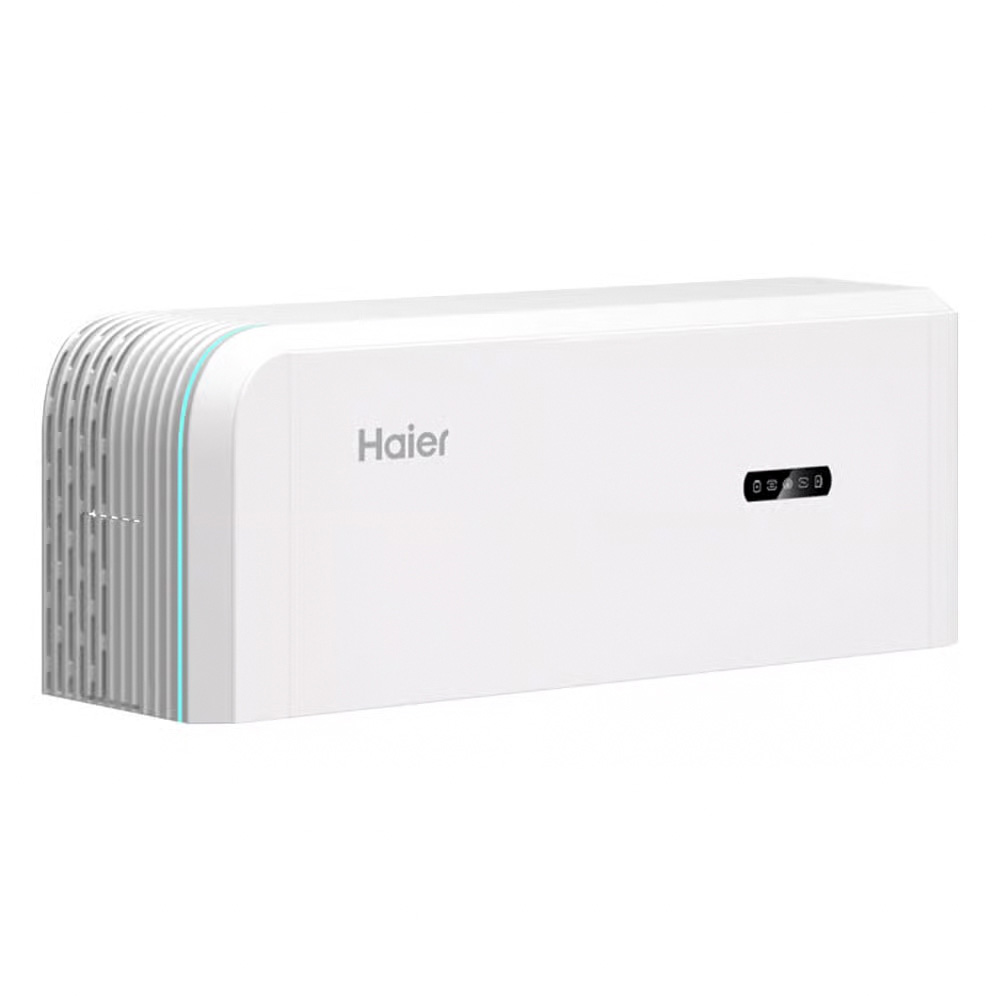

The Energy Controller from Haier is a sophisticated 3-phase hybrid inverter and the central element of the Smart Cube system. Equipped with four independent MPP trackers, it efficiently and seamlessly converts the direct current (DC) from your PV modules into grid-compliant alternating current (AC). This allows you to either feed the generated solar power directly into the public grid or store it in your batteries – for maximum use of your solar energy. The wireless assembly of the system components greatly simplifies installation and reduces the effort required on site. In combination with the integrated battery management system (BMS), the Energy Controller sets new standards in terms of efficiency, safety, and intelligent control.
- Versatile protection and monitoring functions
- Integrated BMS
- Intelligent air cooling
- 3-phase inverter
- Display and LED light strip
- Smart Cube app control
- Communication with KommMod stick, Wi-Fi, Fast Ethernet, RS485
Smart Cube EV-DC charger

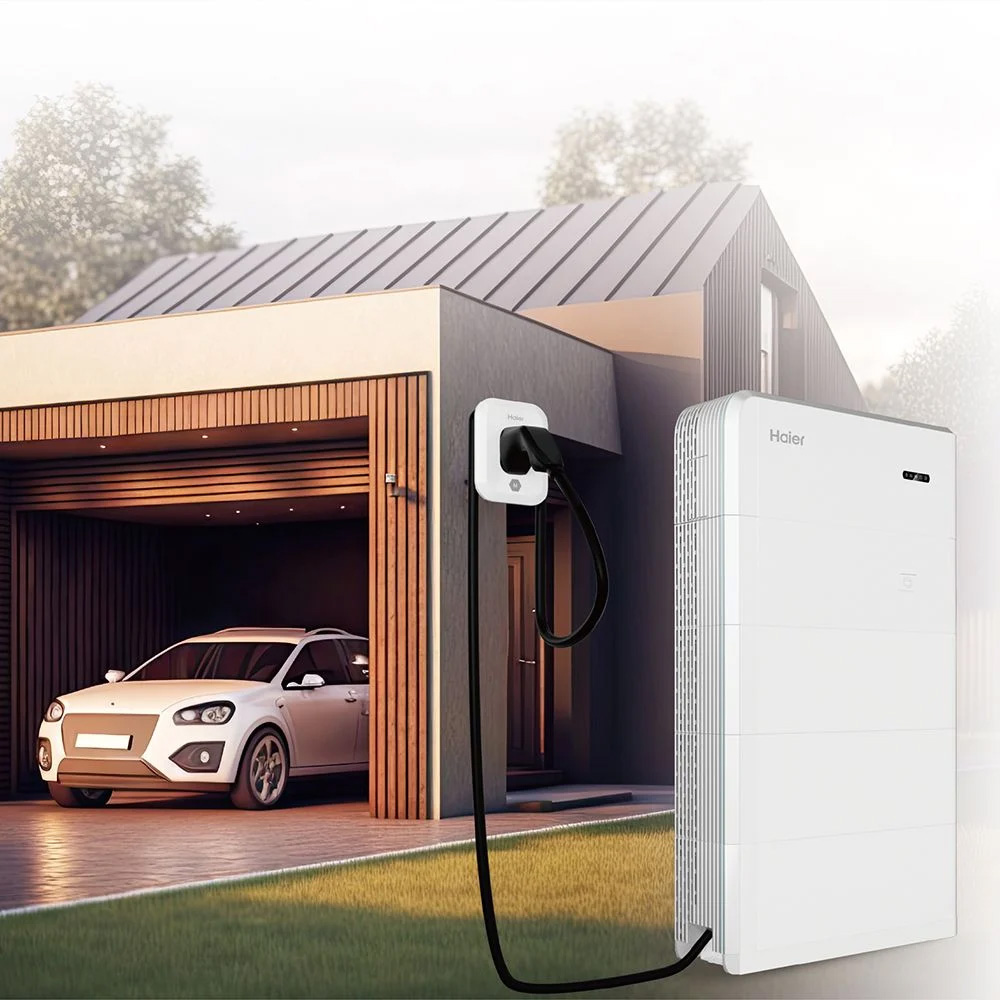

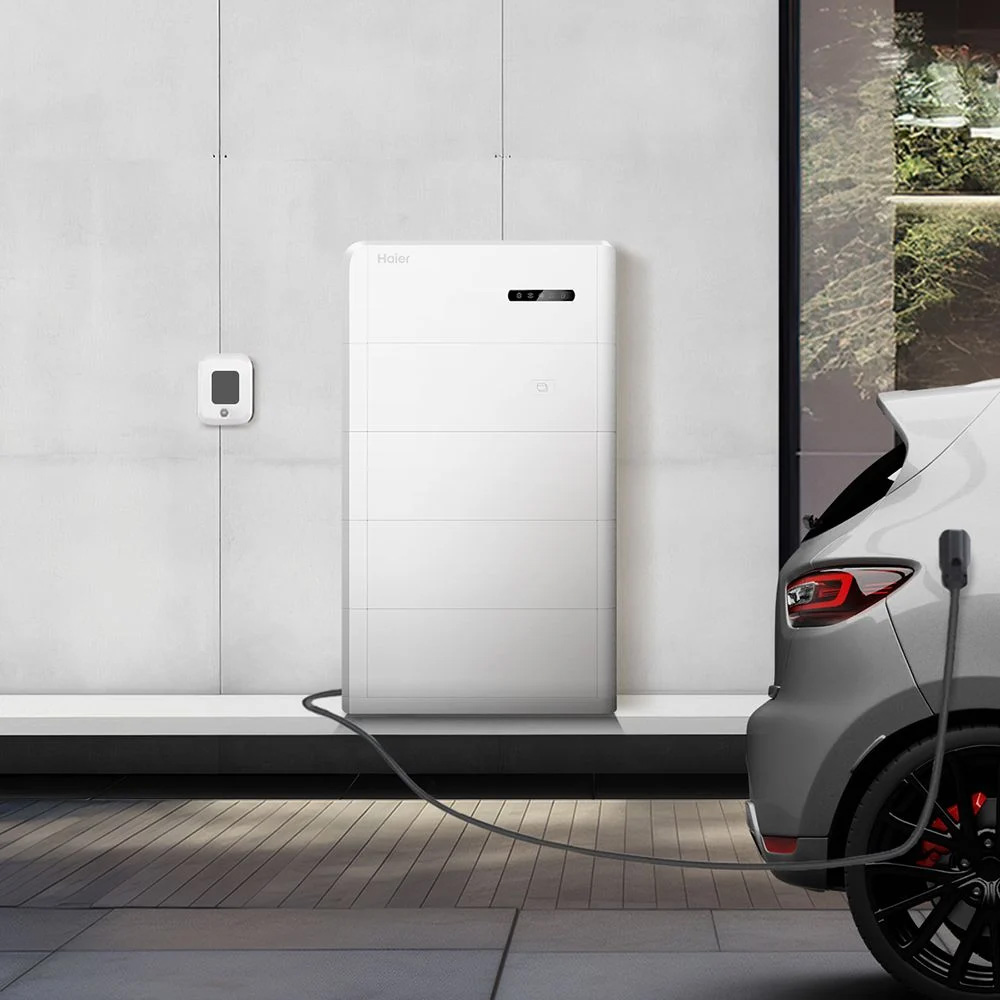

The Smart Cube DC Charger from Haier is a powerful and versatile bidirectional DC/DC charging system that has been specially developed for use with electric vehicles. Equipped with a European standard DC charging plug, the charger enables both efficient charging and discharging of vehicle batteries – for intelligent and reliable energy management. Thanks to V2X-enabled technology, you can flexibly control your power flow and, for example, feed excess solar power directly into your electric car or back into your home network when needed. The integrated, intelligent load management ensures optimal distribution of the available energy and maximizes the use of 100% solar power. The included 5-meter charging cable makes installation and connection much easier. The Haier Smart Cube app allows you to plan and monitor charging processes and maintain the charger remotely at any time. An LED display keeps you informed about the current operating status.
- Bidirectional and automatic charging for maximum flexibility
- Intelligent load management for optimal energy distribution
- V2X-enabled technology for versatile energy flows between vehicle and home
- Charging with 100% solar power for sustainable mobility
- Remote maintenance option for easy system maintenance
- Planning and monitoring of charging processes via the Haier Smart Cube app
- Compatible with common electric vehicles
- Includes 5 m charging cable with European standard DC plug
- LED display for clear status information
Manufactuerer Information
Haier
Haier Germany GmbH
Konrad-Zuse-Platz 6
81829 München
Germany
Mail: hilfe.gsis@haier-europe.com
